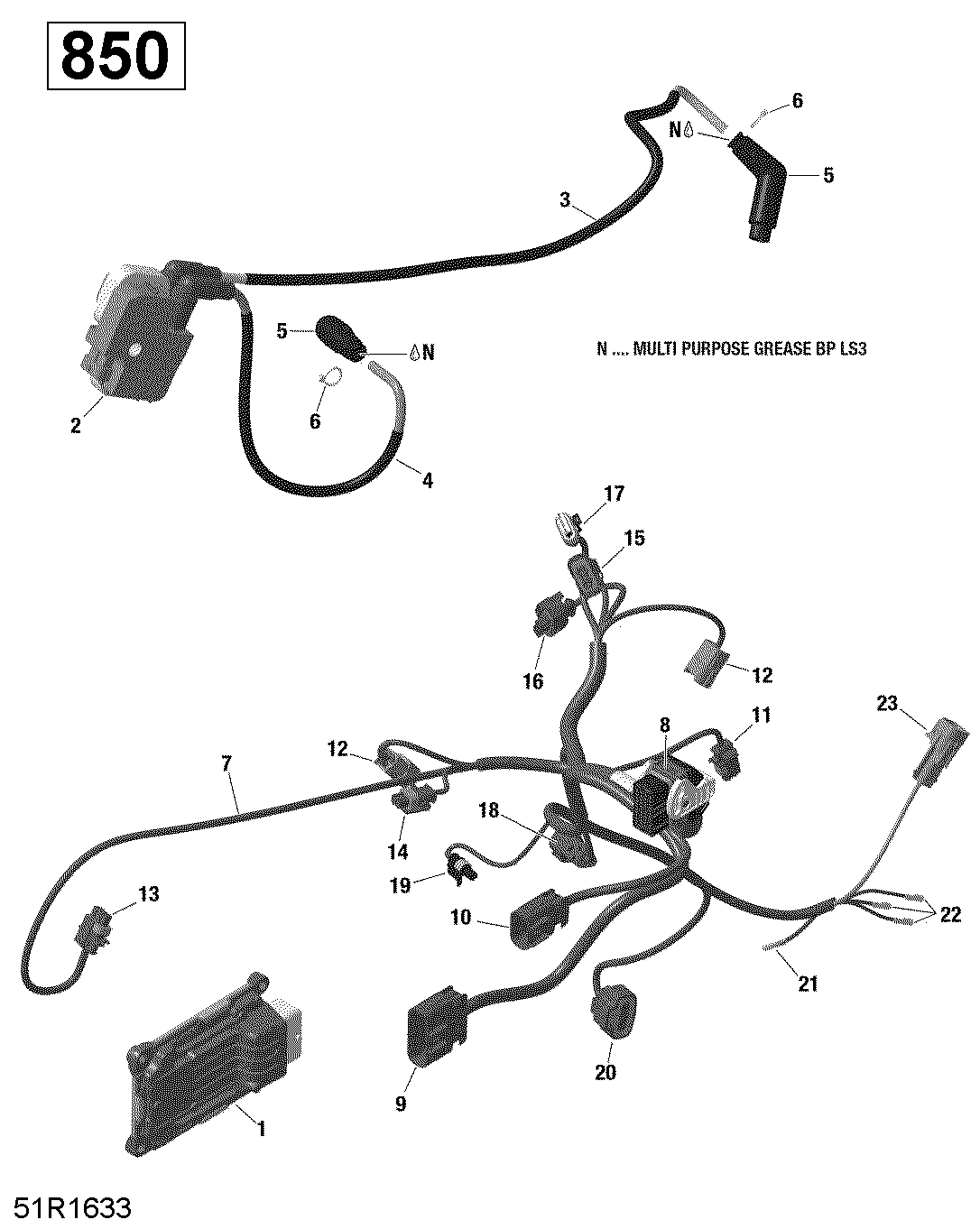

10- Engine Harness and Electronic Module - 850 EFI (Outlander) для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1420666684 ECM, Engine Control Module. Except Europe, Except XMRECM, Engine Control Module. Except Europe, Except XMR
-
1420666686 ECM, Engine Control Module. EuropeECM, Engine Control Module. Europe
-
1420666689 ECM, Engine Control Module. XMRECM, Engine Control Module. XMR
-
2420266070 Ignition CoilIgnition Coil
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265020 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7420864692 Engine Wiring HarnessEngine Wiring Harness
-
9710001227 Housing. DELPHI 15326868Housing. DELPHI 15326868
-
10710001927 Housing. DELPHI 15326840Housing. DELPHI 15326840
-
11278001005 Male Housing, 2 Circuits. BOSCH 1928403137Male Housing, 2 Circuits. BOSCH 1928403137
-
14278001005 Male Housing, 2 Circuits. BOSCH 1928403137Male Housing, 2 Circuits. BOSCH 1928403137
-
15278001829 Housing Connector, 3 Circuits. BOSCH 1928403870Housing Connector, 3 Circuits. BOSCH 1928403870
-
16515176410 Male Connector. BOSCH 1928403736Male Connector. BOSCH 1928403736
-
18278002378 Male Housing. DEUTSCH DT04-3PMale Housing. DEUTSCH DT04-3P
-
20710000329 Male Housing, 4 Circuits. SUMIIMOTO 6189-0225Male Housing, 4 Circuits. SUMIIMOTO 6189-0225
-
21278001007 Insulated Sheath. YAZAKI 7120-1151 (P/N 964072)Insulated Sheath. YAZAKI 7120-1151 (P/N 964072)
-
22278000997 Male Housing, 3 Circuits. BOSCH 1928403110Male Housing, 3 Circuits. BOSCH 1928403110
