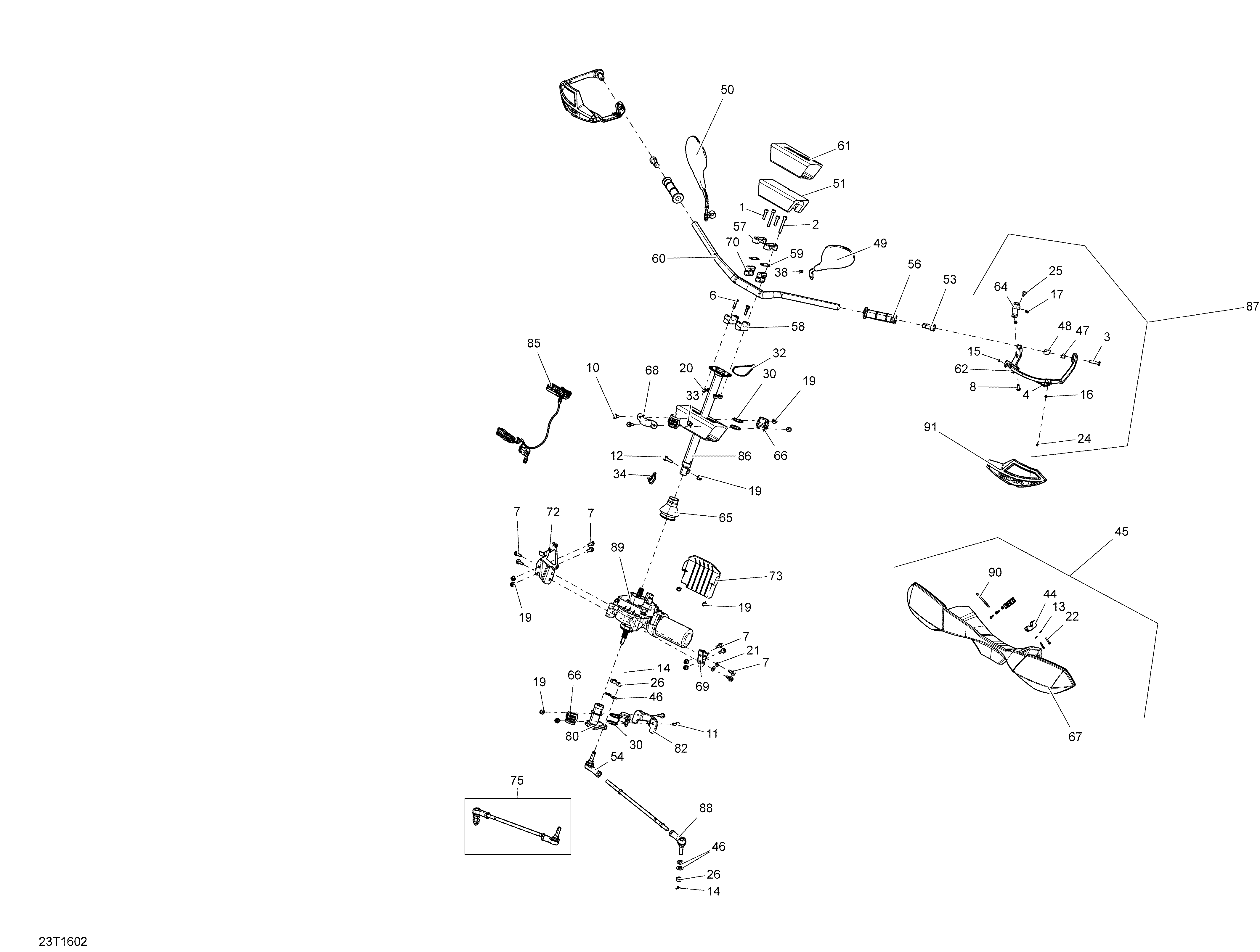

07- Steering - All Models для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1205083060 Socket Screw M8 X 30. Package XMR Engine 1000Socket Screw M8 X 30. Package XMR Engine 1000
-
2205086060 Socket Head Screw M8 X 60. Package XMR Engine 1000RSocket Head Screw M8 X 60. Package XMR Engine 1000R
-
2207086046 Hex. Screw M8 X 60. Except Package XMR Engine 1000RHex. Screw M8 X 60. Except Package XMR Engine 1000R
-
3205384034 Socket Head ScrewSocket Head Screw
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
4205444056 Socket Head Screw M4 X 40. Package XMR - XTPSocket Head Screw M4 X 40. Package XMR - XTP
-
6207183060 Hex. Screw M8 X 30. Package XMR Engine 1000Hex. Screw M8 X 30. Package XMR Engine 1000
-
7207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
11207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
12207683544 Hex. Flanged Screw M8 X 35. Except Package STDHex. Flanged Screw M8 X 35. Except Package STD
-
13211200035 Flat Washer. Package XT -LTDFlat Washer. Package XT -LTD
-
14211400013 Cotter PinCotter Pin
-
15232541414 Elastic Stop Nut M4. Package XMR - LTD - XTPElastic Stop Nut M4. Package XMR - LTD - XTP
-
16232551600 Hex. Elastic Nut M5. Package XMR Engine 1000R Black ModelHex. Elastic Nut M5. Package XMR Engine 1000R Black Model
-
17232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
21234281474 Conical Spring Washer M8. Except Package STDConical Spring Washer M8. Except Package STD
-
22241142560 Hex. Flanged Screw K40 X 25. Package XT -LTDHex. Flanged Screw K40 X 25. Package XT -LTD
-
24250000145 Torx Screw M5 X 14. Package XMR - XTPTorx Screw M5 X 14. Package XMR - XTP
-
24250000742 Torx Screw M5 X 14. Package XTP - XMRTorx Screw M5 X 14. Package XTP - XMR
-
25250000717 Torx Head Screw M6 X 16. Package XMR - XTPTorx Head Screw M6 X 16. Package XMR - XTP
-
25250000223 Torx Screw M6 X 16. Package XMR - XTPTorx Screw M6 X 16. Package XMR - XTP
-
26250100099 Nut M12Nut M12
-
30293300068 O-RingO-Ring
-
32293750008 Tie-Rap 350 mm. Package LTDTie-Rap 350 mm. Package LTD
-
33293750009 Tie-Rap 173 mm. Package LTDTie-Rap 173 mm. Package LTD
-
34293750058 Locking Tie Rap. Package LTDLocking Tie Rap. Package LTD
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44517303264 U-Clamp. Package XT - LTDU-Clamp. Package XT - LTD
-
45703100352 Handle Guard Ass'y, XT. Package XTHandle Guard Ass'y, XT. Package XT
-
45703100357 Handle Guard Ass'y, LTD. Package LTDHandle Guard Ass'y, LTD. Package LTD
-
45709401013 Handle Bar PRO. Package LTDHandle Bar PRO. Package LTD
-
46250200086 Flat WasherFlat Washer
-
47709400161 Bracket, Small. Package XMR - XTPBracket, Small. Package XMR - XTP
-
48709400162 Bracket, Large. Package XMR - XTPBracket, Large. Package XMR - XTP
-
49709400406 LH Mirror. Europe ModelLH Mirror. Europe Model
-
50709400407 RH Mirror. Europe ModelRH Mirror. Europe Model
-
51709400422 Foam. Package XTPFoam. Package XTP
-
51709400422 Foam. Package XMR Engine 1000Foam. Package XMR Engine 1000
-
53709400449 End Piece. Package PRO - STD - LTD - XTEnd Piece. Package PRO - STD - LTD - XT
-
53709400449 End Piece. Package XMR Engine 650-850 North America ModelEnd Piece. Package XMR Engine 650-850 North America Model
-
54709400490 Ball JointBall Joint
-
56709400443 Handle Grip, Grey. Package LTDHandle Grip, Grey. Package LTD
-
56709400493 Handle Grip. Except Package LTDHandle Grip. Except Package LTD
-
57709400496 Support. Package XMR Engine 1000Support. Package XMR Engine 1000
-
58709400497 Steering Support. Package XMR Engine 1000Steering Support. Package XMR Engine 1000
-
59709400509 Stiffner. Package XMR Engine 850Stiffner. Package XMR Engine 850
-
59709400509 Stiffner. Package XMR Engine 650Stiffner. Package XMR Engine 650
-
59709400509 Stiffner. Package STD - LTD - XT - XTP - PROStiffner. Package STD - LTD - XT - XTP - PRO
-
60709401240 Black Handle Bar. Package PRO-XT-STD-DPS-LTDBlack Handle Bar. Package PRO-XT-STD-DPS-LTD
-
60709401240 Black Handle Bar. Package XMR Engine 650-850Black Handle Bar. Package XMR Engine 650-850
-
60709401530 Manta Green Handle Bar. Package XMR Engine 1000 Digital Camo & Manta Green ModelManta Green Handle Bar. Package XMR Engine 1000 Digital Camo & Manta Green Model
-
60709401643 Red Handle Bar. Package XMR Engine 1000 Red ModelRed Handle Bar. Package XMR Engine 1000 Red Model
-
60709401644 Blue Handle Bar. Package XMR Engine 1000 Blue ModelBlue Handle Bar. Package XMR Engine 1000 Blue Model
-
60709400513 Aluminum- Handle Bar. Package XT-PAluminum- Handle Bar. Package XT-P
-
61709400939 Cover. Package STD, DPS, PROCover. Package STD, DPS, PRO
-
61709400939 Cover. Package XMR Engine 650, 850Cover. Package XMR Engine 650, 850
-
61709401511 Cover. Package XMR Engine 1000 Digital Camo & Manta Green ModelCover. Package XMR Engine 1000 Digital Camo & Manta Green Model
-
61709401523 Cover. Package XTPCover. Package XTP
-
61709401652 Cover. Package XMR Engine 1000 Red ModelCover. Package XMR Engine 1000 Red Model
-
62715001378 Air Deflector Support Kit. Package XMR - XTPAir Deflector Support Kit. Package XMR - XTP
-
65709400674 Bellows. Except Package STDBellows. Except Package STD
-
66709400783 Spherical Half BushingSpherical Half Bushing
-
67709400822 Handle Bar Protector. Package XT-LTDHandle Bar Protector. Package XT-LTD
-
68709400827 Upper Column AttachmentUpper Column Attachment
-
70709400919 Steering SupportSteering Support
-
72709400994 RH Steering BracketRH Steering Bracket
-
73709401005 Heat Deflector. Except Package STDHeat Deflector. Except Package STD
-
75703500783 Tie-Rod Ass'y. Except Package XMR. Include item 54 and 88Tie-Rod Ass'y. Except Package XMR. Include item 54 and 88
-
75703500829 Tie-Rod Ass'y. Package XMR. Include item 54 and 88Tie-Rod Ass'y. Package XMR. Include item 54 and 88
-
80703500812 Pitman Kit. Package XMRPitman Kit. Package XMR
-
80703500785 Pitman Kit. Except Package STD - XMRPitman Kit. Except Package STD - XMR
-
82709401428 Column AttachmentColumn Attachment
-
85710002545 GPS Support. Package LTDGPS Support. Package LTD
-
86709400703 Black Upper Main Tube. Except Package STDBlack Upper Main Tube. Except Package STD
-
86709401008 Main Tube. Package STDMain Tube. Package STD
-
87715001378 Air Deflector Support Kit. Package XMR - XTPAir Deflector Support Kit. Package XMR - XTP
-
88709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
89709401608 Power Steering. Except Package STDPower Steering. Except Package STD
-
90704902966 DPS Decal. Package XT - LTDDPS Decal. Package XT - LTD
-
91709401620 Orange RH Deflector. Package XTPOrange RH Deflector. Package XTP
-
91709401621 Orange LH Deflector. Package XTPOrange LH Deflector. Package XTP
-
91709400617 Black LH Hand Air Deflector. Package XMR Engine 1000R Black ModelBlack LH Hand Air Deflector. Package XMR Engine 1000R Black Model
-
91709400616 Black RH Hand Air Deflector. Package XMR Engine 1000R Black ModelBlack RH Hand Air Deflector. Package XMR Engine 1000R Black Model
-
91709401622 Manta Green RH Deflector. Package XMR Engine 1000 Digital Camo & Manta Green ModelManta Green RH Deflector. Package XMR Engine 1000 Digital Camo & Manta Green Model
-
91709401623 Manta Green LH Deflector. Package XMR Engine 1000 Digital Camo & Manta Green ModelManta Green LH Deflector. Package XMR Engine 1000 Digital Camo & Manta Green Model
-
91709401668 Red LH Deflector. Package XMR Engine 1000 Red ModelRed LH Deflector. Package XMR Engine 1000 Red Model
-
91709401667 Red RH Deflector. Package XMR Engine 1000 Red ModelRed RH Deflector. Package XMR Engine 1000 Red Model
-
91709401668 Red LH Deflector. Package XMR Engine 650-850 InternationalRed LH Deflector. Package XMR Engine 650-850 International
-
91709401667 Red RH Deflector. Package XMR Engine 650-850 InternationalRed RH Deflector. Package XMR Engine 650-850 International
