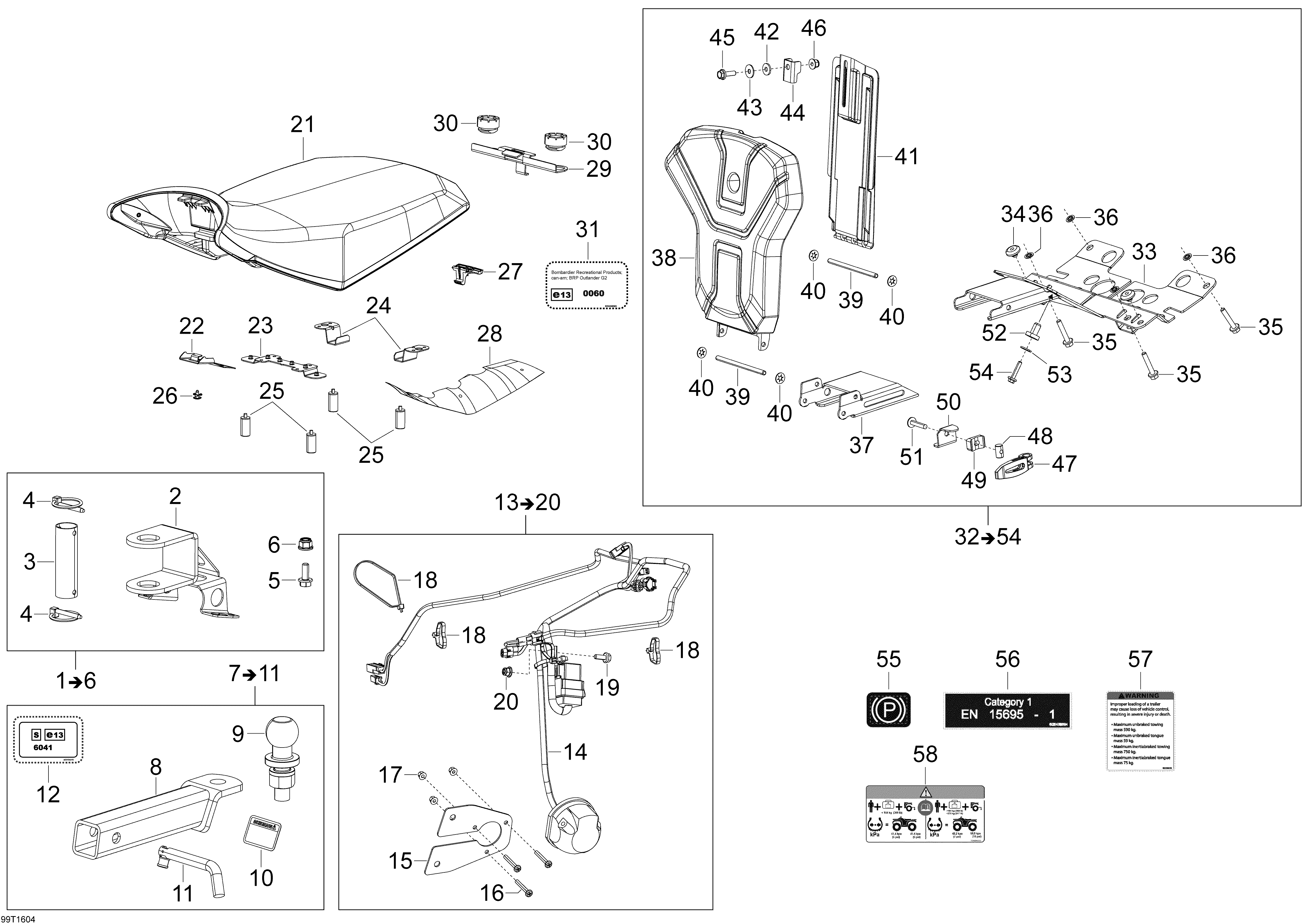

11- T3 Parts (MAX XTP Models) для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
2705205025 Front Coupling DeviceFront Coupling Device
-
3605456511 PinPin
-
4605456518 Linch PinLinch Pin
-
5207682044 Hex. Flange Screw M8 x 20Hex. Flange Screw M8 x 20
-
6233281414 Hex. Flange Elastic Nut M8Hex. Flange Elastic Nut M8
-
7715001473 Coupling Ball Ass'y. Includes 7 To 11Coupling Ball Ass'y. Includes 7 To 11
-
11705204490 Hitch PinHitch Pin
-
12605456545 Hitch Approval DecalHitch Approval Decal
-
13860200927 Trailer Plug Ass'y. Includes 13 To 20Trailer Plug Ass'y. Includes 13 To 20
-
15605356523 Plug Support PlatePlug Support Plate
-
16205053588 Socket HD Screw M5 x 35Socket HD Screw M5 x 35
-
17233251414 Elastic Flange Nut M5Elastic Flange Nut M5
-
18414115200 Tie Rap 180mmTie Rap 180mm
-
19207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
20233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
21708002208 Seat Ass'ySeat Ass'y
-
22605456520 Front Bottom SupportFront Bottom Support
-
23510005986 Middle Bottom SupportMiddle Bottom Support
-
24510005988 Rear Bottom SupportRear Bottom Support
-
25605456546 Rubber DamperRubber Damper
-
26293150067 Tri-Fast RivetTri-Fast Rivet
-
27708000909 LatchLatch
-
28705005761 Heat ShieldHeat Shield
-
29705204621 Seat Rear RaiserSeat Rear Raiser
-
30708000760 Rubber BumperRubber Bumper
-
31605456593 Seat Category DecalSeat Category Decal
-
33708001796 Passenger Seat BracketPassenger Seat Bracket
-
34605452114 Rubber PlugRubber Plug
-
35207663534 Hex. Flange Screw M6 x 35Hex. Flange Screw M6 x 35
-
36732610072 Push NutPush Nut
-
37708001797 Sliding RailSliding Rail
-
38708001794 BackrestBackrest
-
39605456662 Hinge PinHinge Pin
-
4036084 Safety WasherSafety Washer
-
41708001798 Sliding CoverSliding Cover
-
42250200024 Rubber WasherRubber Washer
-
4320117 WasherWasher
-
44708001799 Slide GuideSlide Guide
-
45207662054 Screw M6 x 20Screw M6 x 20
-
46233261494 Nut M6Nut M6
-
47506152646 LeverLever
-
48506152647 PinPin
-
49506152706 BlockBlock
-
50708301660 Lever GuideLever Guide
-
51250000634 Torx Screw M6 x 30Torx Screw M6 x 30
-
52250100018 Well-Nut M5Well-Nut M5
-
53250200025 WasherWasher
-
54207652544 Hex. Flange Screw M5 x 25Hex. Flange Screw M5 x 25
-
55605356244 P DecalP Decal
-
56605456594 Cabin DecalCabin Decal
-
57605356505 Trailer Load Warning DecalTrailer Load Warning Decal
-
58704903953 Tire Pressure & Towing Device Warning DecalTire Pressure & Towing Device Warning Decal
