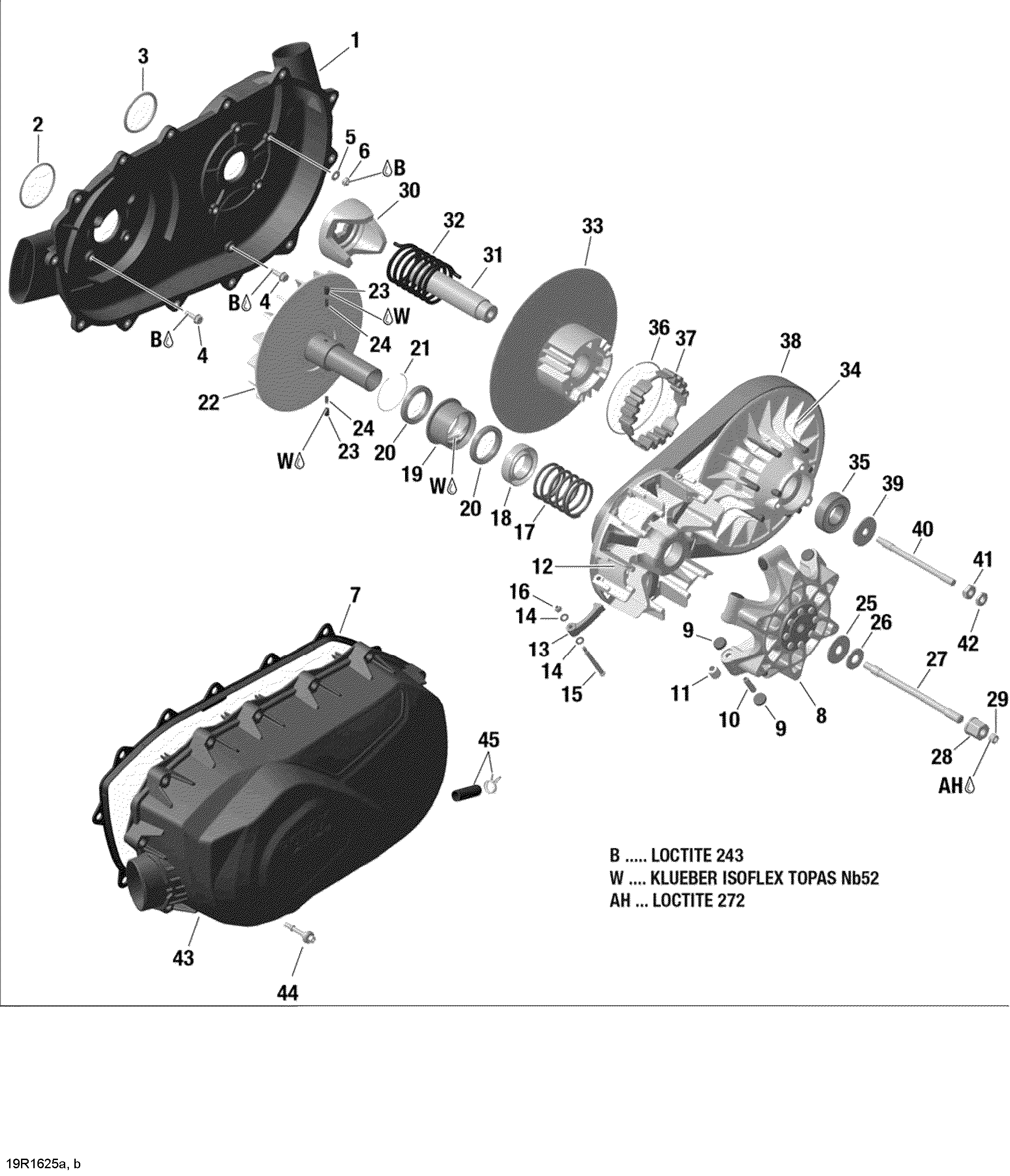

05- Transmission - 1000R EFI (Outlander Package XMR) для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1420612304 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5224061121 WasherWasher
-
6420842040 Lock Nut M6Lock Nut M6
-
7420430126 GasketGasket
-
8>11420280664 Governor Cup Ass'yGovernor Cup Ass'y
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10420233896 Bearing SleeveBearing Sleeve
-
11420229994 Roller ThrustRoller Thrust
-
12420280467 Outer HalfOuter Half
-
13>16420248682 Lever Set Ass'yLever Set Ass'y
-
17420238617 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
18420627577 Spring SeatSpring Seat
-
19420257195 ClutchClutch
-
20420632377 Ball BearingBall Bearing
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25>29703500842 Clutch Bolt Repair KitClutch Bolt Repair Kit
-
25420282830 Washer 40 mmWasher 40 mm
-
26420282820 Washer 30 mmWasher 30 mm
-
27420441801 Hex. Screw M12 X 135Hex. Screw M12 X 135
-
28420242381 Collar Nut M12Collar Nut M12
-
29420441811 Hex. Screw M12 X 10Hex. Screw M12 X 10
-
30420280700 CamCam
-
31420220914 Driven Pulley ShaftDriven Pulley Shaft
-
32420638040 Compression SpringCompression Spring
-
33420280499 Sliding Pulley Ass'ySliding Pulley Ass'y
-
34>37420280178 Outer Half Pulley Ass'yOuter Half Pulley Ass'y
-
35420932421 Ball BearingBall Bearing
-
36420245911 Retaining RingRetaining Ring
-
37420660124 Torque GearTorque Gear
-
38715000302 V-BeltV-Belt
-
39420627590 Thrust WasherThrust Washer
-
40420441900 Hex. Distance Screw M10 X 136Hex. Distance Screw M10 X 136
-
41420242097 Hex. Nut ISO 4032Hex. Nut ISO 4032
-
42420242402 Hex. Nut ISO 4035Hex. Nut ISO 4035
-
43420612310 Variator CoverVariator Cover
-
44420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
45707001179 Drain Plug KitDrain Plug Kit
