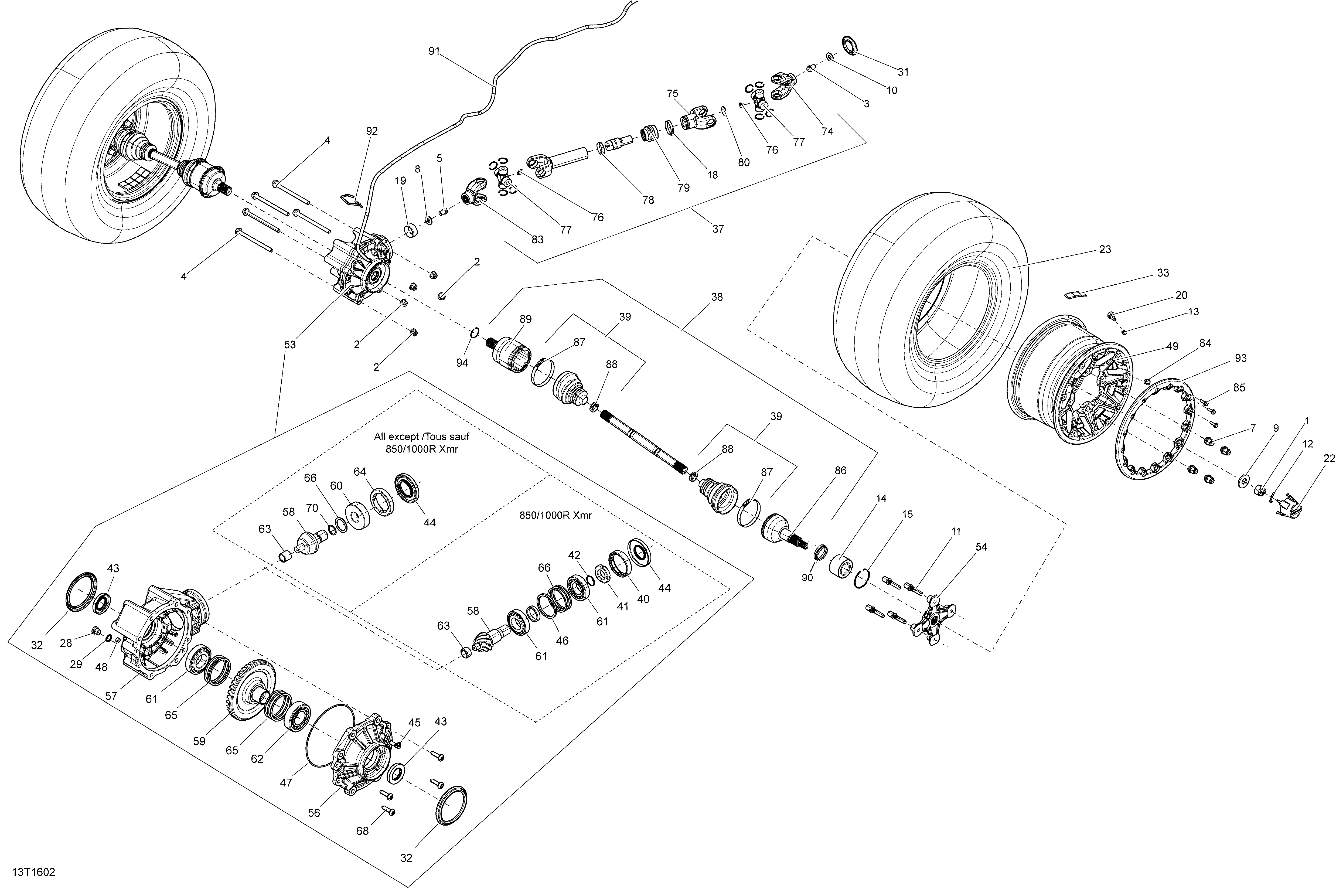

08- Drive System, Rear - All Models для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
2233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
4250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
5250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
7250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
7250100082 Chrome Wheel Nut M10 X 1.25. Package DPSChrome Wheel Nut M10 X 1.25. Package DPS
-
7250100100 Black Wheel Nut M10 X 1.25. Except Package STD DPSBlack Wheel Nut M10 X 1.25. Except Package STD DPS
-
8250200014 Flat Washer M10Flat Washer M10
-
9250200049 Spring WasherSpring Washer
-
10250200102 Flat Washer M12Flat Washer M12
-
11250300048 Wheel StudWheel Stud
-
12250400071 Cotter PinCotter Pin
-
13293000110 Valve CapValve Cap
-
14293350040 Cone BearingCone Bearing
-
15293370019 CirclipCirclip
-
18293650138 Oetiker Gear ClampOetiker Gear Clamp
-
19705400036 Wear RingWear Ring
-
20705400193 Rim Valve With CapRim Valve With Cap
-
22705400928 Wheel Cap. Except 850 1000 Package XMRWheel Cap. Except 850 1000 Package XMR
-
22705401318 Wheel Cap. Engine 850 1000 Package XMRWheel Cap. Engine 850 1000 Package XMR
-
23705501767 Rear Tire. Package STDRear Tire. Package STD
-
23705501767 Rear Tire. Package DPS Except Europe ModelRear Tire. Package DPS Except Europe Model
-
23705501768 Rear Tire. Package DPS Europe ModelRear Tire. Package DPS Europe Model
-
23705501769 Rear Tire. Package XT, XTP LTD Except EuropeRear Tire. Package XT, XTP LTD Except Europe
-
23705501770 Rear Tire. Package XT, XTP, LTD Europe ModelRear Tire. Package XT, XTP, LTD Europe Model
-
23705501836 Rear Tire. Engine 650 Package XMRRear Tire. Engine 650 Package XMR
-
23705400962 Tire. Engine 850 1000 Package XMRTire. Engine 850 1000 Package XMR
-
23705502297 Rear Tire. Package PRO InternationalRear Tire. Package PRO International
-
23705502300 Rear Tire. Package PRO EuropeRear Tire. Package PRO Europe
-
28705500504 Fill Level PlugFill Level Plug
-
29705500506 Copper WasherCopper Washer
-
31705501123 ProtectorProtector
-
32705501124 Wear RingWear Ring
-
33705501385 1/2 OZ Weight1/2 OZ Weight
-
37703500855 Rear Propeller Shaft Ass'y Kit. Out P-STD, DPS, XT, XTPRear Propeller Shaft Ass'y Kit. Out P-STD, DPS, XT, XTP
-
37703500863 Rear Propeller Shaft Ass'y Kit. Out Max P-DPS, XT, XTP, LTDRear Propeller Shaft Ass'y Kit. Out Max P-DPS, XT, XTP, LTD
-
37703500855 Rear Propeller Shaft Ass'y Kit. Engine 650 Package XMRRear Propeller Shaft Ass'y Kit. Engine 650 Package XMR
-
37703500858 Rear Propeller Shaft Ass'y. Engine 850 Package XMRRear Propeller Shaft Ass'y. Engine 850 Package XMR
-
37703500859 Rear Propeller Shaft Ass'y Kit. Engine 1000 Package XMRRear Propeller Shaft Ass'y Kit. Engine 1000 Package XMR
-
37703500862 Rear Propeller Shaft Ass'y. Outlander Package PRORear Propeller Shaft Ass'y. Outlander Package PRO
-
37703500866 Rear Propeller Shaft Ass'y Kit. Out Max Package PRORear Propeller Shaft Ass'y Kit. Out Max Package PRO
-
37a705400036 Wear RingWear Ring
-
38705501485 LH Homocinetic Joint. Except Package XMRLH Homocinetic Joint. Except Package XMR
-
38705501486 RH Homocinetic Joint. Except Package XMRRH Homocinetic Joint. Except Package XMR
-
38705501847 LH Homocinetic Joint. Package XMRLH Homocinetic Joint. Package XMR
-
38705501848 RH Homocinetic Joint. Package XMRRH Homocinetic Joint. Package XMR
-
39705501864 Boot KitBoot Kit
-
40705501549 Nut. Engine 1000R Package XMRNut. Engine 1000R Package XMR
-
40705501549 Nut. Engine 850 Package XMRNut. Engine 850 Package XMR
-
41705501550 Nut. Engine 1000R Package XMRNut. Engine 1000R Package XMR
-
41705501550 Nut. Engine 850 Package XMRNut. Engine 850 Package XMR
-
42705501554 O-Ring. Engine 1000R Package XMRO-Ring. Engine 1000R Package XMR
-
42705501554 O-Ring. Engine 850 Package XMRO-Ring. Engine 850 Package XMR
-
43705501556 Oil SealOil Seal
-
44705502062 Oil Seal. Except Engine 850 1000R Package XMROil Seal. Except Engine 850 1000R Package XMR
-
44705501557 Oil Seal. Engine 850 1000R Package XMROil Seal. Engine 850 1000R Package XMR
-
45705501584 Breather TubeBreather Tube
-
46705501586 Differential Shim. Engine 1000R Package XMRDifferential Shim. Engine 1000R Package XMR
-
46705501586 Differential Shim. Engine 850 Package XMRDifferential Shim. Engine 850 Package XMR
-
47705501711 O-Ring. Engine 1000R Package XMRO-Ring. Engine 1000R Package XMR
-
47705501711 O-Ring. Engine 850 Package XMRO-Ring. Engine 850 Package XMR
-
48705501724 Plug DrainPlug Drain
-
49705501802 Black Rear Rim. Package STDBlack Rear Rim. Package STD
-
49705501460 Silver Rear Rim. Package DPSSilver Rear Rim. Package DPS
-
49705501493 Black Rear Rim. Package PROBlack Rear Rim. Package PRO
-
49705501493 Black Rear Rim. Package XT Black ModelBlack Rear Rim. Package XT Black Model
-
49705501493 Black Rear Rim. Package XT Camo ModelBlack Rear Rim. Package XT Camo Model
-
49705501493 Black Rear Rim. Package XT Brush AluminiumBlack Rear Rim. Package XT Brush Aluminium
-
49705501856 Black Rear Rim. Package XT YellowBlack Rear Rim. Package XT Yellow
-
49705501856 Black Rear Rim. Package XT WhiteBlack Rear Rim. Package XT White
-
49705502244 Black Rear Rim. Package XTPBlack Rear Rim. Package XTP
-
49705501856 Black Rear Rim. Package LTDBlack Rear Rim. Package LTD
-
49705501856 Black Rear Rim. Engine 650 Package XMRBlack Rear Rim. Engine 650 Package XMR
-
49705401552 Matte Black Rim. Engine 850 Package XMRMatte Black Rim. Engine 850 Package XMR
-
49705401552 Matte Black Rim. Engine 1000R Package XMRMatte Black Rim. Engine 1000R Package XMR
-
53705501896 Rear Differential Ass'y. Except Engine 850 1000R Package XMRRear Differential Ass'y. Except Engine 850 1000R Package XMR
-
53705502178 Rear Differential Ass'y. Engine 850 1000R Package XMRRear Differential Ass'y. Engine 850 1000R Package XMR
-
54705501900 Wheel HubWheel Hub
-
56705502051 Rear Cover. Except Engine 850 1000R Package XMRRear Cover. Except Engine 850 1000R Package XMR
-
56705502179 Rear Cover. Engine 850 1000R Package XMRRear Cover. Engine 850 1000R Package XMR
-
57705502052 Rear Pinion Cover. Except Engine 850 1000R Package XMRRear Pinion Cover. Except Engine 850 1000R Package XMR
-
57705502180 Rear Pinion Cover. Engine 850 1000R Package XMRRear Pinion Cover. Engine 850 1000R Package XMR
-
58705502053 Pinion 10 Teeth. Except Engine 850 1000R Package XMRPinion 10 Teeth. Except Engine 850 1000R Package XMR
-
58703500870 Gear kit 10/36 Teeth. Engine 850 1000R Package XMRGear kit 10/36 Teeth. Engine 850 1000R Package XMR
-
59705502054 Gear 36 Teeth. Except Engine 850 1000R Package XMRGear 36 Teeth. Except Engine 850 1000R Package XMR
-
59703500870 Gear kit 10/36 Teeth. Engine 850 1000R Package XMRGear kit 10/36 Teeth. Engine 850 1000R Package XMR
-
60705502055 Ball Bearing. Except Engine 850 1000R Package XMRBall Bearing. Except Engine 850 1000R Package XMR
-
61705502056 Ball Bearing. Except Engine 850 1000R Package XMRBall Bearing. Except Engine 850 1000R Package XMR
-
62705502057 Ball Bearing. Except Engine 850 1000R Package XMRBall Bearing. Except Engine 850 1000R Package XMR
-
63705502058 Needle Bearing. Except Engine 850 1000R Package XMRNeedle Bearing. Except Engine 850 1000R Package XMR
-
63703500836 Needle Bearing Ass'y. Engine 850 1000R Package XMRNeedle Bearing Ass'y. Engine 850 1000R Package XMR
-
64705502059 Nut. Except Engine 850 1000R Package XMRNut. Except Engine 850 1000R Package XMR
-
64705501549 Nut. Engine 850 1000R Package XMRNut. Engine 850 1000R Package XMR
-
64a705501550 Nut. Engine 850 1000R Package XMRNut. Engine 850 1000R Package XMR
-
65705502060 Differential Shim 0.02 mm. Except Engine 850 1000R Package XMRDifferential Shim 0.02 mm. Except Engine 850 1000R Package XMR
-
65703500835 Differential Shim Kit. Engine 850 1000R Package XMRDifferential Shim Kit. Engine 850 1000R Package XMR
-
66705502061 Pinion Gear Shim 1.67 mm. Except Engine 850 1000R Package XMRPinion Gear Shim 1.67 mm. Except Engine 850 1000R Package XMR
-
66703500835 Differential Shim Kit. Engine 850 1000R Package XMRDifferential Shim Kit. Engine 850 1000R Package XMR
-
67705502062 Oil Seal. Except Engine 850 1000R Package XMROil Seal. Except Engine 850 1000R Package XMR
-
67705501557 Oil Seal. Engine 850 1000R Package XMROil Seal. Engine 850 1000R Package XMR
-
68705502063 ScrewScrew
-
69705502064 Seal. Except Engine 850 1000R Package XMRSeal. Except Engine 850 1000R Package XMR
-
69705501711 O-Ring. Engine 850 1000R Package XMRO-Ring. Engine 850 1000R Package XMR
-
70705502065 O-Ring. Except Engine 850 1000R Package XMRO-Ring. Except Engine 850 1000R Package XMR
-
70705501554 O-Ring. Engine 850 1000R Package XMRO-Ring. Engine 850 1000R Package XMR
-
74715900101 Fixe Yoke. Except Engine 850 1000R Package XMR, Package PROFixe Yoke. Except Engine 850 1000R Package XMR, Package PRO
-
74715900271 Joint. Engine 850 1000R Package XMRJoint. Engine 850 1000R Package XMR
-
74715900272 Joint. Package PROJoint. Package PRO
-
75715900106 Spline YokeSpline Yoke
-
76715900184 Grease Fitting. Except Package PROGrease Fitting. Except Package PRO
-
76715900295 Grease Fitting. Package PROGrease Fitting. Package PRO
-
77715500371 Universal Joint. Outlander, Except Package PROUniversal Joint. Outlander, Except Package PRO
-
77715900270 Universal Joint. Out Max, Esxcept Package PROUniversal Joint. Out Max, Esxcept Package PRO
-
77703500846 Universal Joint Ass'y. Package PROUniversal Joint Ass'y. Package PRO
-
78509000045 Oetiker Gear ClampOetiker Gear Clamp
-
79715900118 Rubber BootRubber Boot
-
80715900187 CoverCover
-
83715900296 Fixe Yoke. Except Engine 850 1000R Package XMRFixe Yoke. Except Engine 850 1000R Package XMR
-
83715900271 Joint. Engine 850 1000R Package XMRJoint. Engine 850 1000R Package XMR
-
84293450317 Insert. Package XTPInsert. Package XTP
-
85250000787 Hex. Flanged Screw M6 X 25. Package XTPHex. Flanged Screw M6 X 25. Package XTP
-
86705501776 CV JointCV Joint
-
87715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
88715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
89705501780 Plunging JointPlunging Joint
-
90705501842 Joint Protector. Package XMRJoint Protector. Package XMR
-
91415080200 Hose, PolyurethaneHose, Polyurethane
-
92293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
93705401811 Orange Reinforcement Disk. Package XTPOrange Reinforcement Disk. Package XTP
-
94705501781 CirclipCirclip
