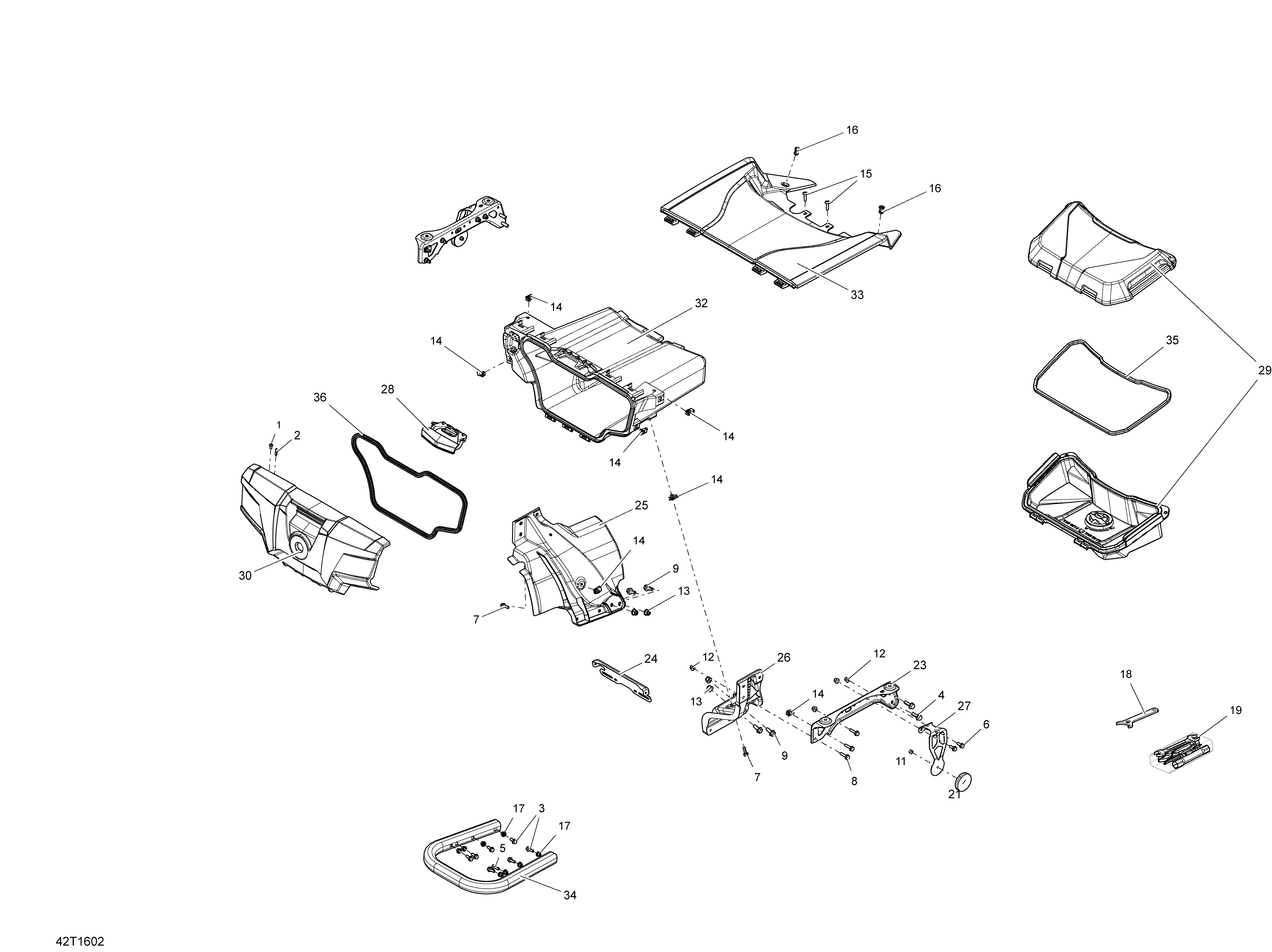

09- Rear Cargo Box - All Models для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1205951046 Socket Head Screw M5 X 10. Europe ModelSocket Head Screw M5 X 10. Europe Model
-
2206252044 Socket Set Screw M5 X 20. Europe ModelSocket Set Screw M5 X 20. Europe Model
-
3207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207661634 Hex. Flanged Screw M6 X 16. Package Europe, T3Hex. Flanged Screw M6 X 16. Package Europe, T3
-
6207661644 Hex. Flanged Screw M6 X 16. Except Europe ModelHex. Flanged Screw M6 X 16. Except Europe Model
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
11233251434 Flanged Elastic Nut M5. Except Europe ModelFlanged Elastic Nut M5. Except Europe Model
-
12233261414 Hex. Flanged Elastic Nut M6. Except Europe ModelHex. Flanged Elastic Nut M6. Except Europe Model
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
15250000807 Torx Screw M6 X 25. Except Package XMR Engine 1000RTorx Screw M6 X 25. Except Package XMR Engine 1000R
-
16293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
17293450274 Insert. Europe Model -Package T3Insert. Europe Model -Package T3
-
18529000035 Adjustement WrenchAdjustement Wrench
-
19704700168 Tool KitTool Kit
-
21705002408 Red Reflector. Except Europe ModelRed Reflector. Except Europe Model
-
23705004563 LH SupportLH Support
-
23705004564 RH SupportRH Support
-
24705004806 Plate SupportPlate Support
-
25705006997 LH Cargo SupportLH Cargo Support
-
26705006998 RH Cargo SupportRH Cargo Support
-
27705202576 Reflector Support. Except Europe ModelReflector Support. Except Europe Model
-
28708200272 HandleHandle
-
29708200408 Box Ass'y. MAX ModelBox Ass'y. MAX Model
-
30708300150 Rear Panel. Except Europe ModelRear Panel. Except Europe Model
-
32708300674 Rear Storage BoxRear Storage Box
-
33708301212 Rear Storage Box CoverRear Storage Box Cover
-
34715001564 Rear Bumper. North America ModelRear Bumper. North America Model
-
35293250312 Neoprene Seal. MAX ModelNeoprene Seal. MAX Model
-
36293200163 Neoprene SealNeoprene Seal
