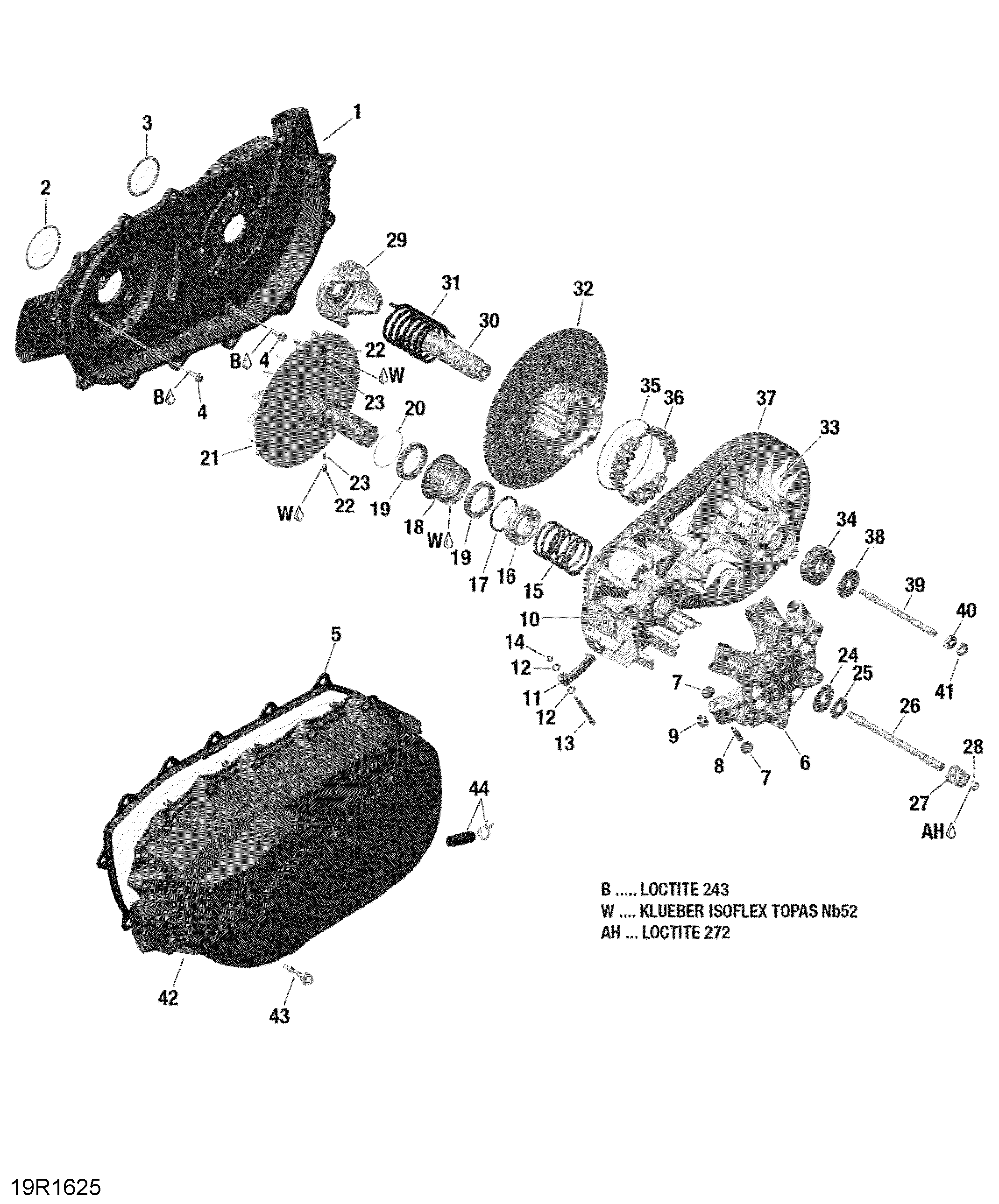

05- Transmission - 1000R EFI (Outlander Except XMR) для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1420612304 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5420430126 GasketGasket
-
6>9420280664 Governor Cup Ass'y. Includes 6 to 9Governor Cup Ass'y. Includes 6 to 9
-
7420281296 Slider Shoe SetSlider Shoe Set
-
8417223257 Roller AxleRoller Axle
-
9417223767 RollerRoller
-
10420280467 Outher HaftOuther Haft
-
11a>14420248682 Centrifugal Lever Kit (set of 6). Includes 11a to 14Centrifugal Lever Kit (set of 6). Includes 11a to 14
-
15420238617 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
16420627577 Spring SeatSpring Seat
-
17420460430 Friction WasherFriction Washer
-
18420257195 Drive Pulley ClutchDrive Pulley Clutch
-
19420632377 Ball BearingBall Bearing
-
20420245951 Retaining RingRetaining Ring
-
21420280374 Inner HalfInner Half
-
22420229577 Spring SleeveSpring Sleeve
-
23420239134 SpringSpring
-
24>28703500842 Clutch Bolt Repair KitClutch Bolt Repair Kit
-
24420282830 Washer 40 mmWasher 40 mm
-
25420282820 Washer 30 mmWasher 30 mm
-
26420441801 Hex. Screw M12 X 172Hex. Screw M12 X 172
-
27420242381 Socket Set ScrewSocket Set Screw
-
28420441811 NutNut
-
29420280700 CamCam
-
30420220914 Driven Pulley ShaftDriven Pulley Shaft
-
31420638040 Compression SpringCompression Spring
-
32420280499 Inner Half Ass'yInner Half Ass'y
-
33>36420280178 Outer Half Pulley Ass'yOuter Half Pulley Ass'y
-
34420932421 Ball BearingBall Bearing
-
35420245911 Retaining RingRetaining Ring
-
36420660124 Torque GearTorque Gear
-
37715000302 V-BeltV-Belt
-
38420627590 Thrust WasherThrust Washer
-
39420441900 Stud Screw M10 X 136Stud Screw M10 X 136
-
40420242097 Nut M10Nut M10
-
41420242402 Nut M10Nut M10
-
42420612310 Variator CoverVariator Cover
-
43420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
44707001179 Drain Plug KitDrain Plug Kit
