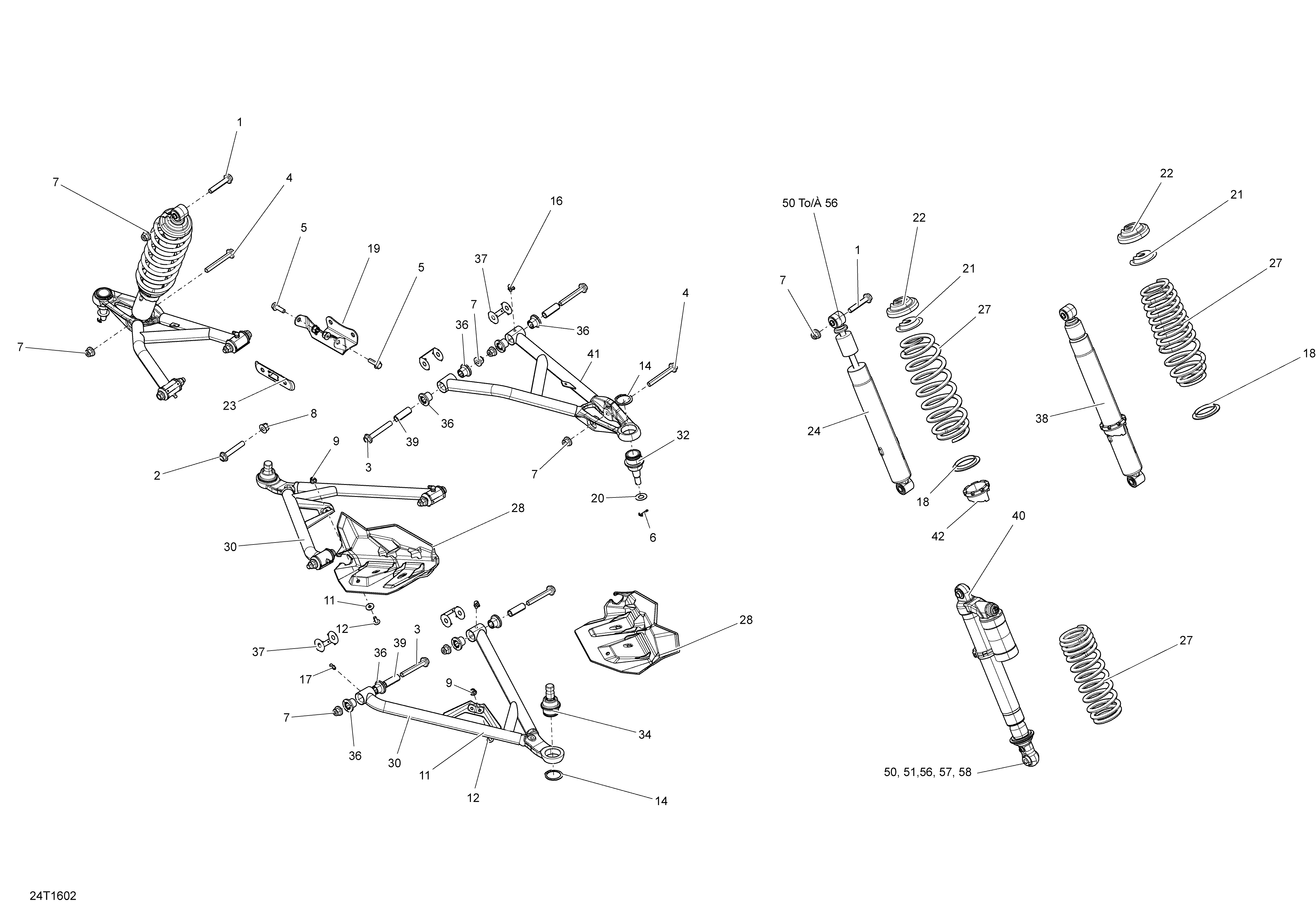

07- Front Suspension - All Models для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
2207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
5207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
6211400017 Cotter PinCotter Pin
-
7233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
8233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062670 Flat Washer, StainlessFlat Washer, Stainless
-
12250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250100099 Nut M12Nut M12
-
14293370035 CirclipCirclip
-
15293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
16293550056 Grease Fitting 90°Grease Fitting 90°
-
17408200700 Grease FittingGrease Fitting
-
18503187500 Spring Guide. Except Engine 1000R Package XMRSpring Guide. Except Engine 1000R Package XMR
-
19705203247 Upper Front HolderUpper Front Holder
-
20250200086 Flat WasherFlat Washer
-
21706200785 Cap. Except Engine 1000R Package XMRCap. Except Engine 1000R Package XMR
-
22706200881 Spring Stopper. Except Engine 1000R Package XMRSpring Stopper. Except Engine 1000R Package XMR
-
23706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
24706201170 Shock Absorber. Package STD - DPS Except MAXShock Absorber. Package STD - DPS Except MAX
-
24706201243 Shock Absorber. Package STD - DPS MAX ModelShock Absorber. Package STD - DPS MAX Model
-
24706201170 Shock Absorber. Package XT Except MAXShock Absorber. Package XT Except MAX
-
24706201243 Shock Absorber. Package XT Max ModelShock Absorber. Package XT Max Model
-
24706201170 Shock Absorber. Engine 650 Package XMRShock Absorber. Engine 650 Package XMR
-
24706201170 Shock Absorber. Package PROShock Absorber. Package PRO
-
24706201243 Shock Absorber. Package LTDShock Absorber. Package LTD
-
24706201812 Shock Absorber. Package XTPShock Absorber. Package XTP
-
27706201171 Black Spring. Package STD - DPS Except MAXBlack Spring. Package STD - DPS Except MAX
-
27706201649 Black Spring. Package STD - DPS MAX ModelBlack Spring. Package STD - DPS MAX Model
-
27706201173 Black Spring. Package XT Except MAXBlack Spring. Package XT Except MAX
-
27706201251 Black Spring. Package XT Max ModelBlack Spring. Package XT Max Model
-
27706201251 Black Spring. Package LTDBlack Spring. Package LTD
-
27706201637 Black Spring. Package XTPBlack Spring. Package XTP
-
27706202364 Red Spring. Engine 650 Package XMRRed Spring. Engine 650 Package XMR
-
27706202368 Red Spring. Engine 850 Package XMRRed Spring. Engine 850 Package XMR
-
27706202068 Green Manta Front Spring. Package XMR Digital Camo & Manta GreenGreen Manta Front Spring. Package XMR Digital Camo & Manta Green
-
27706202368 Red Spring. Package XMR Red ModelRed Spring. Package XMR Red Model
-
27706202371 Blue Spring. Package XMR Blue ModelBlue Spring. Package XMR Blue Model
-
27706202424 Black Spring. Package PROBlack Spring. Package PRO
-
28706201829 LH Joint ProtectorLH Joint Protector
-
28706201830 RH Joint ProtectorRH Joint Protector
-
30706201874 Black LH Lower ArmBlack LH Lower Arm
-
30706201875 Black RH Lower ArmBlack RH Lower Arm
-
32706202044 Ball JointBall Joint
-
34706202045 Ball JointBall Joint
-
36706202088 CushionCushion
-
37706202089 Wear PlateWear Plate
-
38706202489 Shock Absorber. Engine 850 Package XMRShock Absorber. Engine 850 Package XMR
-
39703500875 Bushing KitBushing Kit
-
40706202170 Shock Absorber. Engine 1000R Package XMRShock Absorber. Engine 1000R Package XMR
-
41706201797 Black RH Upper ArmBlack RH Upper Arm
-
41706201796 Black LH Upper ArmBlack LH Upper Arm
-
42505073625 Adjustment Cam. Except Engine 1000R Package XMRAdjustment Cam. Except Engine 1000R Package XMR
-
50715900209 O-Ring Bushing. Package XTPO-Ring Bushing. Package XTP
-
50715900209 O-Ring Bushing. Engine 1000R Package XMRO-Ring Bushing. Engine 1000R Package XMR
-
51715900210 Interior Bushing. Package XTPInterior Bushing. Package XTP
-
51715900210 Interior Bushing. Engine 1000R Package XMRInterior Bushing. Engine 1000R Package XMR
-
52706201648 Bushing. Package XTPBushing. Package XTP
-
53706201585 Bushing Sleeve. Package XTP, XMR 850Bushing Sleeve. Package XTP, XMR 850
-
54706201586 Bushing Sleeve. Package XTP, XMR 850Bushing Sleeve. Package XTP, XMR 850
-
55715900251 Spherical Bearing. Package XTPSpherical Bearing. Package XTP
-
56715900252 Retaining Ring. Package XTPRetaining Ring. Package XTP
-
56715900252 Retaining Ring. Engine 1000R Package XMRRetaining Ring. Engine 1000R Package XMR
-
57715900336 Ball Journal. Engine 1000R Package XMRBall Journal. Engine 1000R Package XMR
-
58715900331 Protector. Engine 1000R Package XMRProtector. Engine 1000R Package XMR
