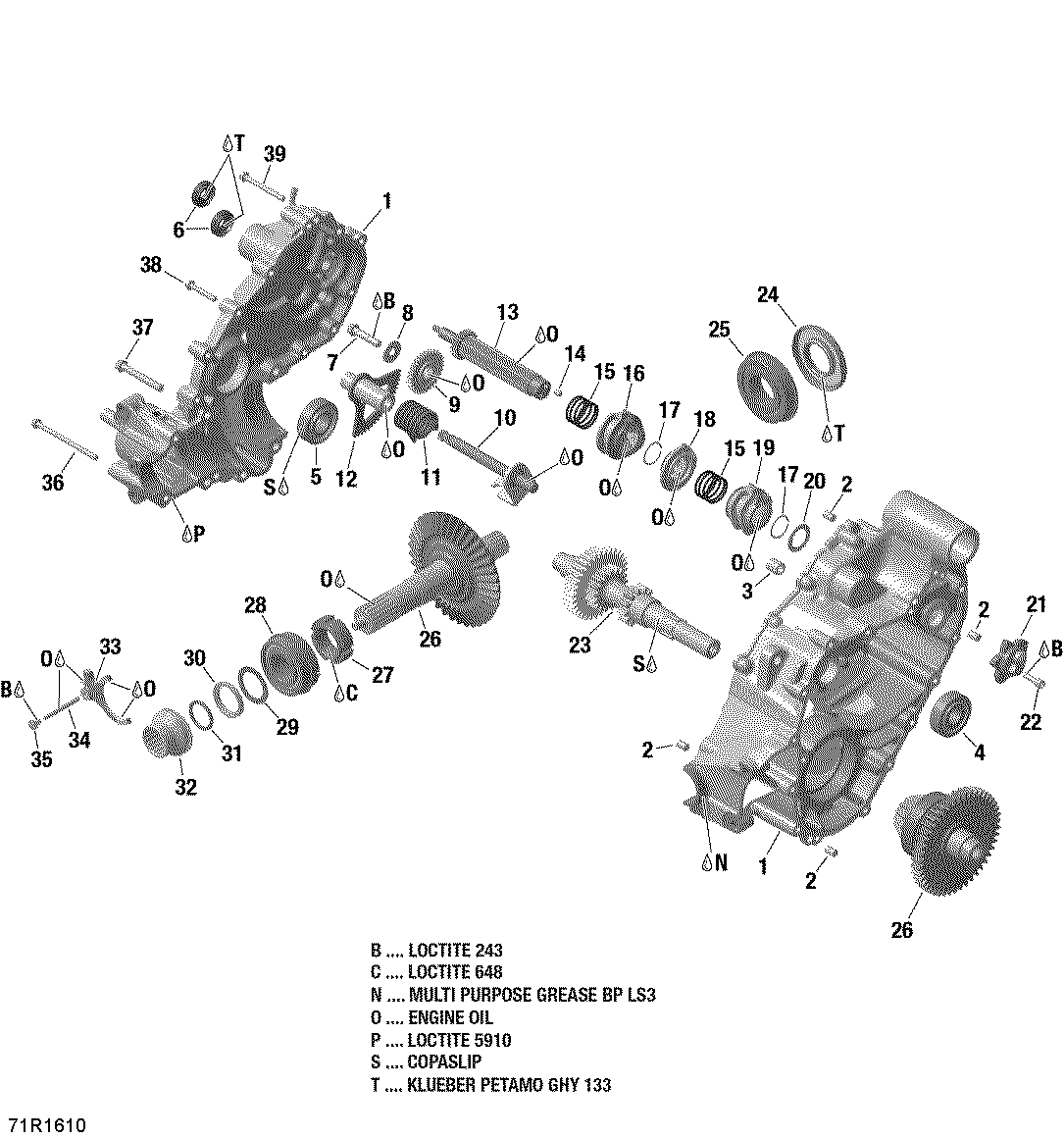

01- Gear Box Output Shaft - GBPS - Package PRO для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
4420932816 Ball BearingBall Bearing
-
5420932432 Ball BearingBall Bearing
-
6420250452 Oil SealOil Seal
-
7420440861 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
8420227937 Plain WasherPlain Washer
-
9>12420620922 Shift Shaft Ass'yShift Shaft Ass'y
-
13>20420657235 Shifting Drum Ass'yShifting Drum Ass'y
-
22420241939 Allen Screw M6 X 20Allen Screw M6 X 20
-
23420620677 CountershaftCountershaft
-
24420831955 Oil SealOil Seal
-
32420257673 Shifting Sleeve KitShifting Sleeve Kit
-
33420257606 Shifting ForkShifting Fork
-
33a420832650 Needle PinNeedle Pin
-
34420841771 Set Screw M6 X 8Set Screw M6 X 8
-
35420841580 Hex. Screw M6 X 8Hex. Screw M6 X 8
-
36420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
37420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
38420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
39420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
