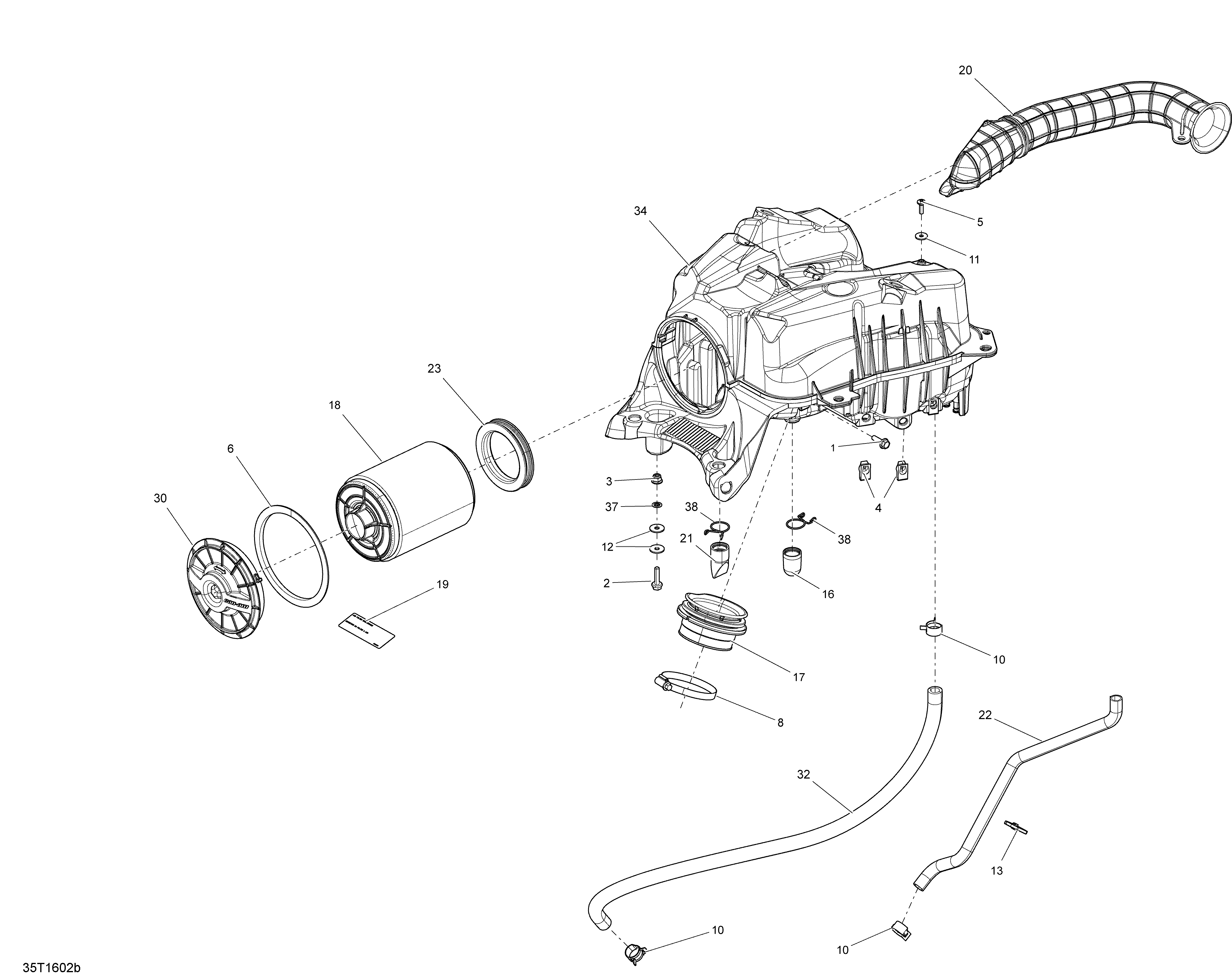

02- Air Intake - Except XMR для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
6293300175 GasketGasket
-
8293650091 Norma ClampNorma Clamp
-
10293650110 Norma ClampNorma Clamp
-
11391301600 WasherWasher
-
12250200082 Flat WasherFlat Washer
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16707800080 Drain TubeDrain Tube
-
17707800333 Intake AdaptorIntake Adaptor
-
18707800371 Air FilterAir Filter
-
19707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
20707800375 Air Intake HoseAir Intake Hose
-
21707800404 Drain TubeDrain Tube
-
22707800453 Vent HoseVent Hose
-
23707800470 Air Filter AdaptorAir Filter Adaptor
-
30707800518 Intake Silencer CapIntake Silencer Cap
-
34707800599 Welded Air BoxWelded Air Box
-
37732610072 Push NutPush Nut
-
38707800278 Retainer ClipRetainer Clip
