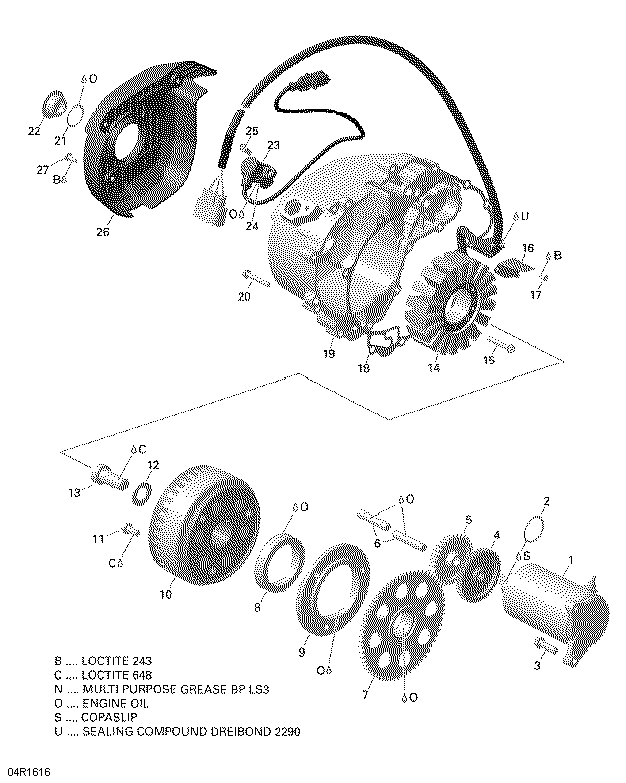

03- Magneto and Electric Starter - 650 EFI для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1>2420684562 Starter Ass'yStarter Ass'y
-
2420250140 O-RingO-Ring
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420634741 Double GearDouble Gear
-
5420634605 Gear, 30 TeethGear, 30 Teeth
-
6420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
7420659112 Sprag ClutchSprag Clutch
-
8420659261 Sprag Clutch HousingSprag Clutch Housing
-
9420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
10420685920 Stator Plate, 420W. Except DPS PackageStator Plate, 420W. Except DPS Package
-
10420685632 Stator Plate, 650W. DPS PackageStator Plate, 650W. DPS Package
-
11420296906 Flywheel, 420W. Except DPS PackageFlywheel, 420W. Except DPS Package
-
11420685647 Flywheel, 650W. DPS PackageFlywheel, 650W. DPS Package
-
12420627270 ShimShim
-
13420241545 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
15420251880 Cable Inner CoverCable Inner Cover
-
16420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
17420611134 CoverCover
-
18420656370 Pressure Relief ValvePressure Relief Valve
-
19420939480 Compression SpringCompression Spring
-
20420256486 Housing ValveHousing Valve
-
21420650465 Gasket RingGasket Ring
-
22420640270 Screw PlugScrew Plug
-
23>24420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
24420431580 O-RingO-Ring
-
25420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
26420430782 O-RingO-Ring
-
27420241630 Screw PlugScrew Plug
-
28420651200 GasketGasket
-
29420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
30420201390 CoverCover
-
31420941935 Taptite Screw M5 x 12Taptite Screw M5 x 12
