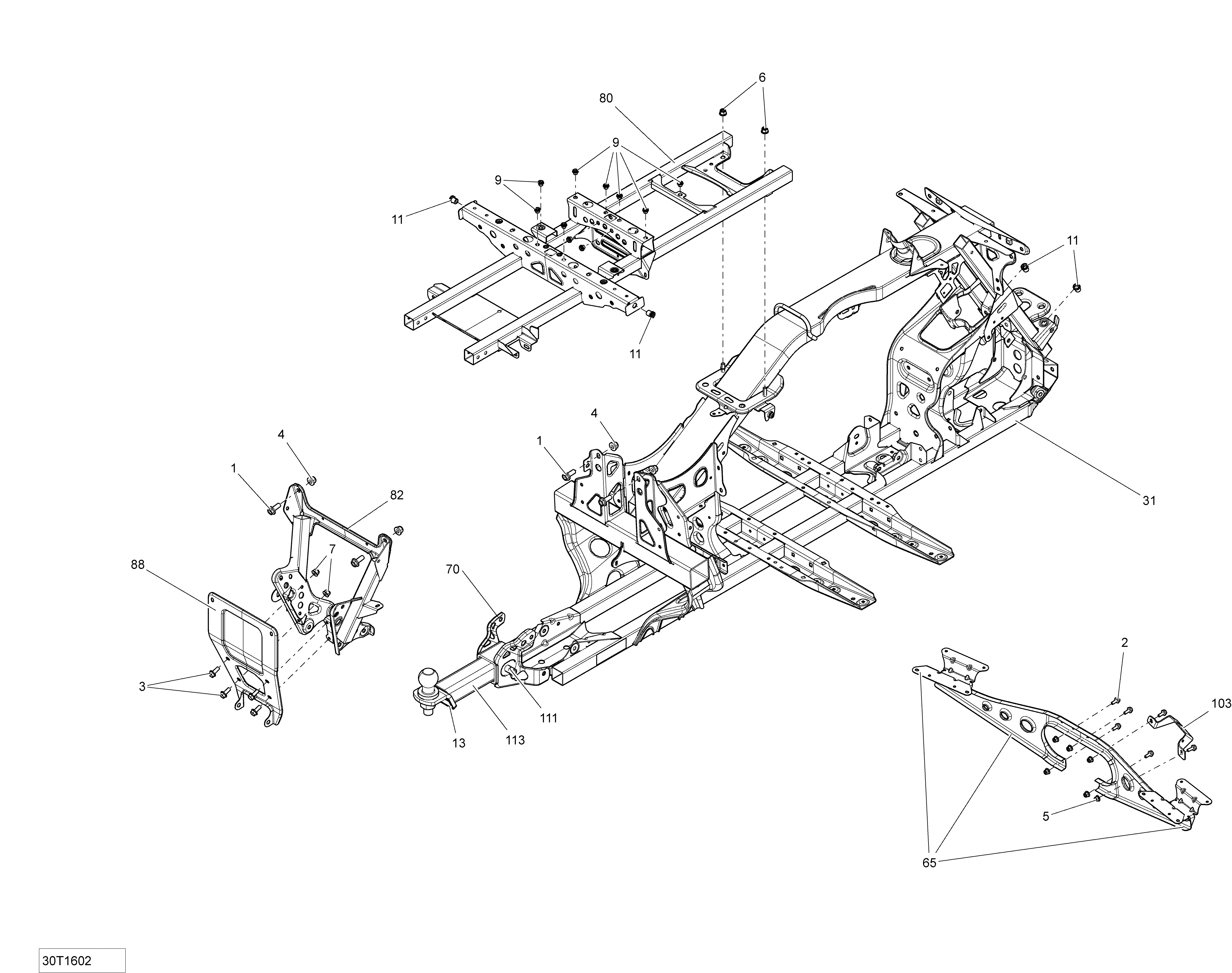

09- Frame - All Models для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
1207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
2207661644 Hex. Flanged Screw M6 X 16. MAX ModelHex. Flanged Screw M6 X 16. MAX Model
-
3207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5233261414 Hex. Flanged Elastic Nut M6. MAX ModelHex. Flanged Elastic Nut M6. MAX Model
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
9293450232 Insert. MAX ModelInsert. MAX Model
-
9293450232 Insert. Except MAX ModelInsert. Except MAX Model
-
11293450307 InsertInsert
-
13704902700 WARNING LABEL. Package PRO InternationalWARNING LABEL. Package PRO International
-
13704902939 WARNING LABEL. Package PRO EuropeWARNING LABEL. Package PRO Europe
-
31705204116 Black Frame. Except MAX ModelBlack Frame. Except MAX Model
-
31705204118 Black Frame. MAX ModelBlack Frame. MAX Model
-
65705202947 Footrest Support. MAX ModelFootrest Support. MAX Model
-
70715002243 Black Trailer Hitch KitBlack Trailer Hitch Kit
-
80705204075 Black Frame Extension. Except MAX ModelBlack Frame Extension. Except MAX Model
-
80705204077 Black Frame Extension. MAX ModelBlack Frame Extension. MAX Model
-
82705203387 Black Rear SupportBlack Rear Support
-
88705203301 Rear SupportRear Support
-
103705203874 Master Cylinder Bracket. MAX ModelMaster Cylinder Bracket. MAX Model
-
111705204490 HITCH PIN. Package PROHITCH PIN. Package PRO
-
113705205304 REAR HITCH KIT. Package PRO InternationalREAR HITCH KIT. Package PRO International
-
113705205306 REAR HITCH KIT. Package PRO EuropeREAR HITCH KIT. Package PRO Europe
