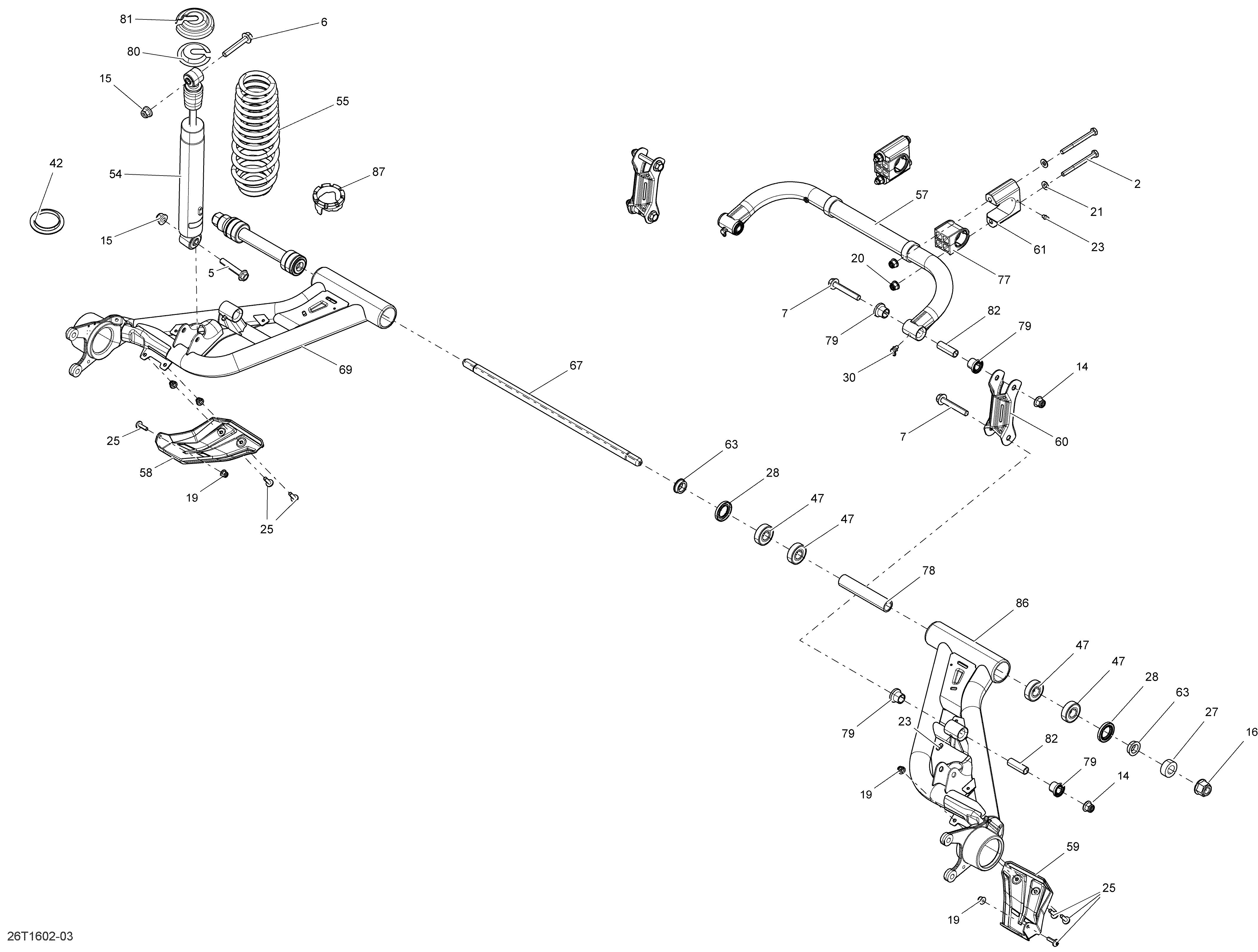

08- Rear Suspension - Except Package LTD для BRP Outlander - Outlander MAX - 2016
-
№АртикулНазвание
-
5207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
6207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
7207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
14233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
15233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
16233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
19233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
20233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21234081430 Flat Washer M8Flat Washer M8
-
25250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
27250200112 Flat Washer M17Flat Washer M17
-
28293200144 SealSeal
-
31293650207 Clamp OetikerClamp Oetiker
-
41414811400 O-RingO-Ring
-
42503187500 Spring Guide. Except Package - XTP - XMR Engine 1000RSpring Guide. Except Package - XTP - XMR Engine 1000R
-
43515175232 Male TerminalMale Terminal
-
44515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
45705600459 ClampClamp
-
47706000826 Ball BearingBall Bearing
-
48706000860 Check ValveCheck Valve
-
49706000869 ConnectorConnector
-
50706000872 Elbow 90°Elbow 90°
-
53706000946 ''T'' Fitting''T'' Fitting
-
54706000958 Shock. Package STD - DPS - XT (Except MAX)Shock. Package STD - DPS - XT (Except MAX)
-
54706000970 Rear Shock. Package STD - DPS - XT, (MAX)Rear Shock. Package STD - DPS - XT, (MAX)
-
54706001572 Rear Shock. Package XTPRear Shock. Package XTP
-
54706001908 Rear Shock. Package XXCRear Shock. Package XXC
-
54706000958 Shock. Package PROShock. Package PRO
-
54706000958 Shock. Package XMR Engine 650Shock. Package XMR Engine 650
-
54706002339 Rear Shock. Package XMR Engine 850Rear Shock. Package XMR Engine 850
-
54706001959 Rear Shock. Package XMR Engine 1000RRear Shock. Package XMR Engine 1000R
-
55706000963 Black Spring. Package STD - DPS - XT (Except MAX)Black Spring. Package STD - DPS - XT (Except MAX)
-
55706000971 Black Spring. Package STD - DPS - XT, (MAX) Except RED ModelBlack Spring. Package STD - DPS - XT, (MAX) Except RED Model
-
55706002195 Red Spring. MAX Model RedRed Spring. MAX Model Red
-
55706001362 Black Spring. Package XTPBlack Spring. Package XTP
-
55706002192 Black Spring. Package XMR Engine 650Black Spring. Package XMR Engine 650
-
55706002195 Red Spring. Package XMR Engine 850Red Spring. Package XMR Engine 850
-
55706002195 Red Spring. Package XMR Engine 1000R RedRed Spring. Package XMR Engine 1000R Red
-
55706002474 Blue Spring. Package XMR Engine 1000R BlueBlue Spring. Package XMR Engine 1000R Blue
-
55706001838 Green Spring. Package XMR Engine 1000R DigitL CamoGreen Spring. Package XMR Engine 1000R DigitL Camo
-
55706002243 Black Spring. Package PROBlack Spring. Package PRO
-
57706000988 SwaybarSwaybar
-
58706001009 LH ProtectorLH Protector
-
59706001010 RH ProtectorRH Protector
-
60706001020 Swaybar LinkageSwaybar Linkage
-
61706001099 Bushing HolderBushing Holder
-
63706001282 SpacerSpacer
-
67706001664 Axial Pivot M16Axial Pivot M16
-
69706001860 Black LH Swing ArmBlack LH Swing Arm
-
69706001860 Black LH Swing ArmBlack LH Swing Arm
-
77706002246 CushionCushion
-
78706002259 ENTRETOISEENTRETOISE
-
79706200181 BushingBushing
-
80706200785 Cap. Except Package - XTP - XMR Engine 1000RCap. Except Package - XTP - XMR Engine 1000R
-
81706200881 Spring Stopper. Except Package - XTP - XMR Engine 1000RSpring Stopper. Except Package - XTP - XMR Engine 1000R
-
82706201587 SleeveSleeve
-
86706001861 Black RH Swing ArmBlack RH Swing Arm
-
87505073625 Adjustment Cam. Except Package - XTP - XMR Engine 1000RAdjustment Cam. Except Package - XTP - XMR Engine 1000R
