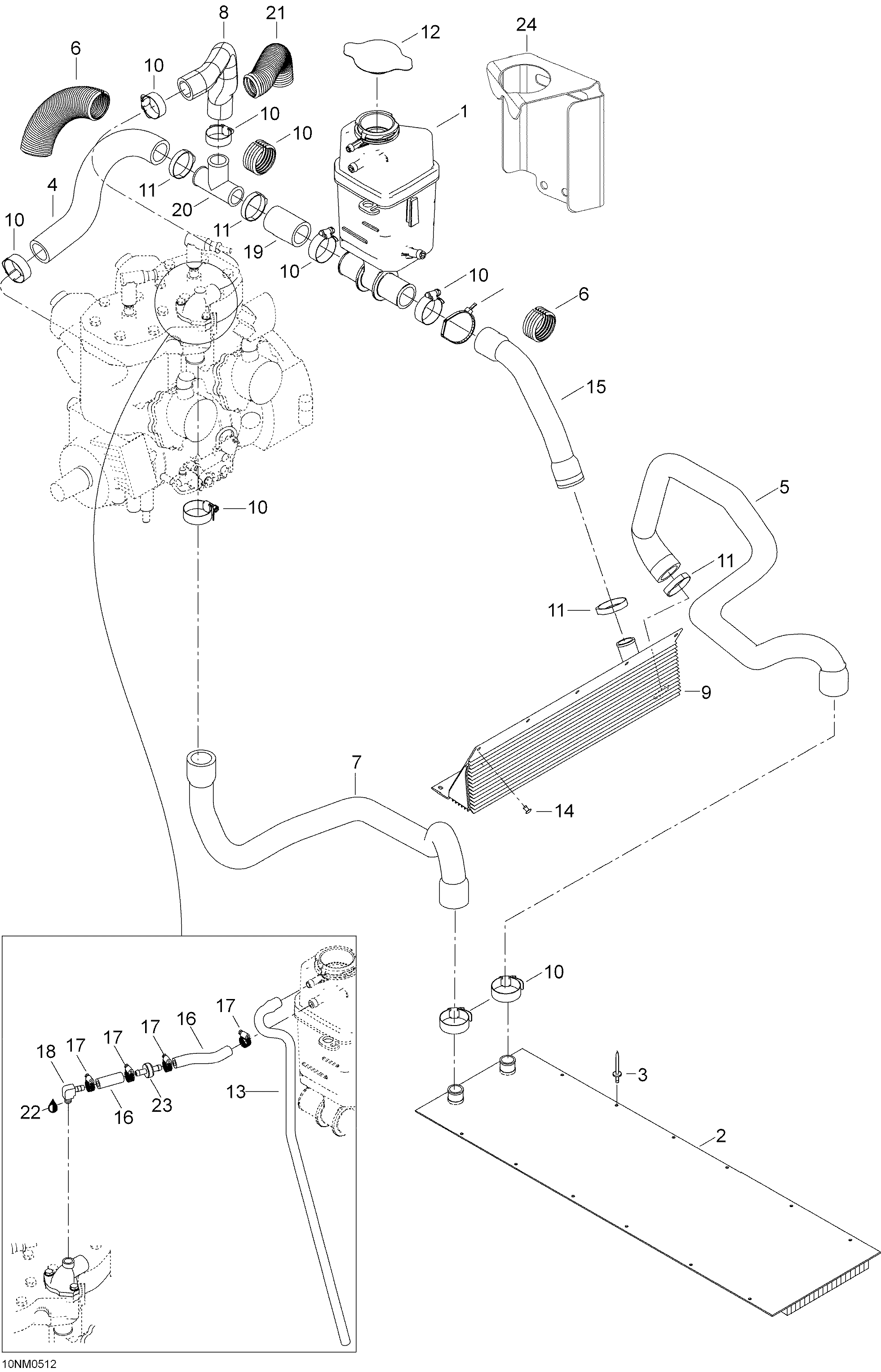

01- Cooling System для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1509000140 Coolant-tankCoolant-tank
-
25246648 RadiatorRadiator
-
336083 RivetRivet
-
4509000141 HoseHose
-
55347902 HoseHose
-
6390003 Protective shield (1000 mm)Protective shield (1000 mm)
-
75347901 HoseHose
-
8509000142 HoseHose
-
9509000146 Front radiatorFront radiator
-
10408800400 Hose clampHose clamp
-
11509000045 Hose clampHose clamp
-
12509000187 Cap pressureCap pressure
-
1339038 HoseHose
-
1436489 RivetRivet
-
15509000144 HoseHose
-
16509000093 HoseHose
-
17293650170 Hose clampHose clamp
-
18293700020 Hose clampHose clamp
-
19509000143 HoseHose
-
20414619900 T-fittingT-fitting
-
21605449802 TubingTubing
-
22293800018 Loctite 592, 50mlLoctite 592, 50ml
-
23509000153 Valve.checkValve.check
-
24605348608 Heat protection plateHeat protection plate
