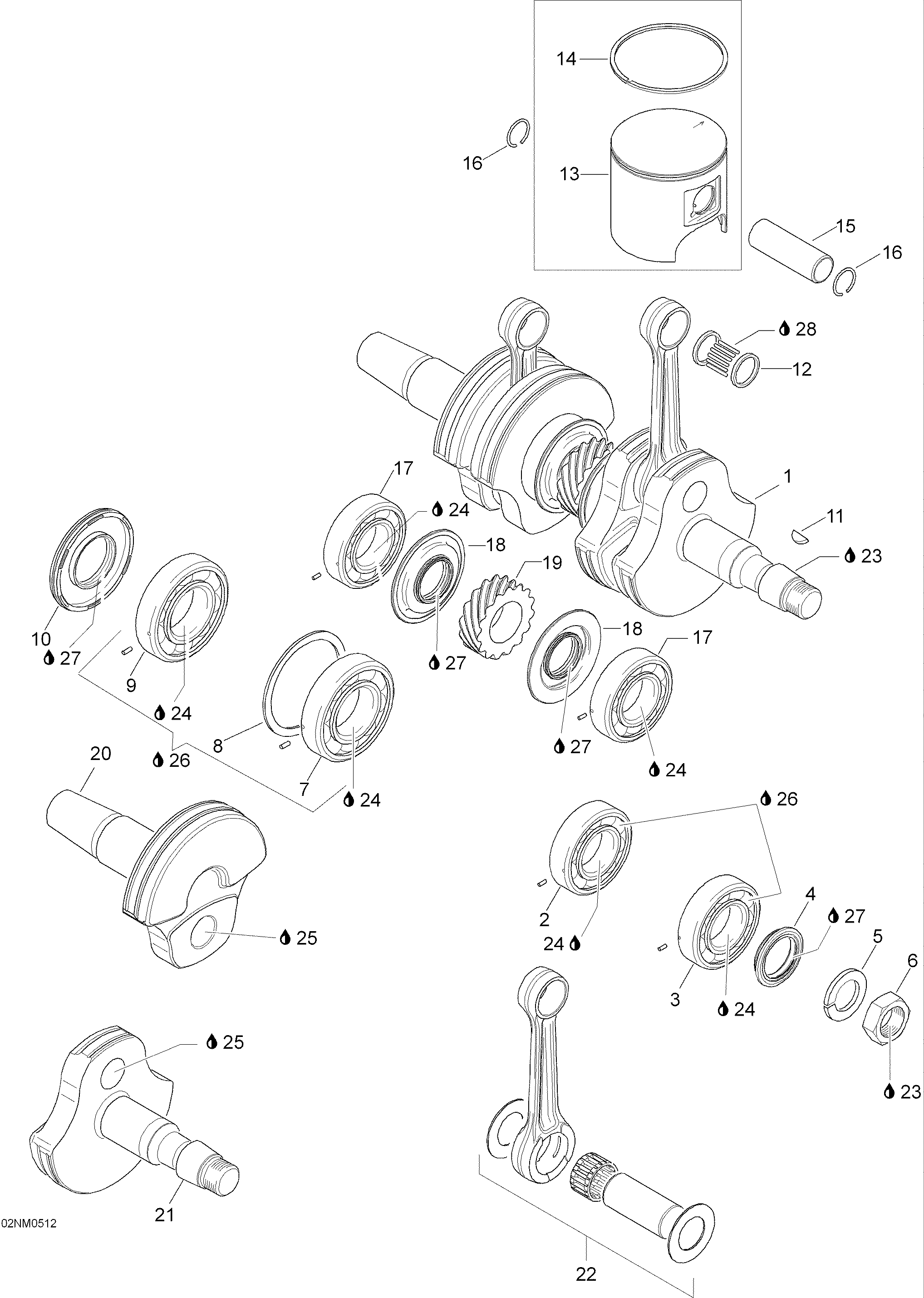

01- Crankshaft And Pistons для BRP Lynx Sport Touring 600HO SDI - 2005

№

Артикул

Название
1

420890950 Crankshaft ass'y. Includes 1 to 10

Crankshaft ass'y. Includes 1 to 10

0 ₽
2

420832638 Ball bearing 6207

Ball bearing 6207

0 ₽
3

420832575 Ball bearing 6207

Ball bearing 6207

8 480 ₽
4

420931792 Oil seal

Oil seal

0 ₽
5

420945759 Lock washer 22 mm

Lock washer 22 mm

660 ₽
6

420842230 Hex. nut M22

Hex. nut M22

0 ₽
7

420832608 Ball bearing 6207

Ball bearing 6207

0 ₽
8

420926190 Retaining disk

Retaining disk

3 990 ₽
9

420832700 Ball bearing 6207

Ball bearing 6207

0 ₽
10

420931285 Oil seal

Oil seal

0 ₽
11

420246015 Woodruff-key

Woodruff-key

1 040 ₽
12

420832428 Needle bearing

Needle bearing

0 ₽
13

420889187 Piston ass'y. Includes 13 to 14

Piston ass'y. Includes 13 to 14

0 ₽
14

420815295 Semi-trapez ring 66,6 mm

Semi-trapez ring 66,6 mm

17 160 ₽
15

420916411 Piston pin

Piston pin

0 ₽
16

420845106 Piston circlip

Piston circlip

2 410 ₽
17

420832575 Ball bearing 6206

Ball bearing 6206

8 480 ₽
18

420931455 Oil seal

Oil seal

5 240 ₽
19

420834355 Central gear 15 Teeth

Central gear 15 Teeth

9 030 ₽
20

420818709 Crankshaft (PTO-side)

Crankshaft (PTO-side)

27 720 ₽
21

420819232 Crankshaft (MAG-side)

Crankshaft (MAG-side)

0 ₽
22

420684653 Rod repair kit (MAG side)

Rod repair kit (MAG side)

0 ₽
22

420684654 Rod repair kit (PTO side)

Rod repair kit (PTO side)

0 ₽
23

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
24

293800023 Loctite 767, Antiseize lubricant, 454 g

Loctite 767, Antiseize lubricant, 454 g

0 ₽
25

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
26

1472341 Klueber Isoflex grease, 400 g

Klueber Isoflex grease, 400 g

0 ₽
27

420899271 Grease Petamo Ghy 133N, 400 g

Grease Petamo Ghy 133N, 400 g

8 190 ₽
28

1472236 Injection oil (8 x 1 Liter)

Injection oil (8 x 1 Liter)

0 ₽
