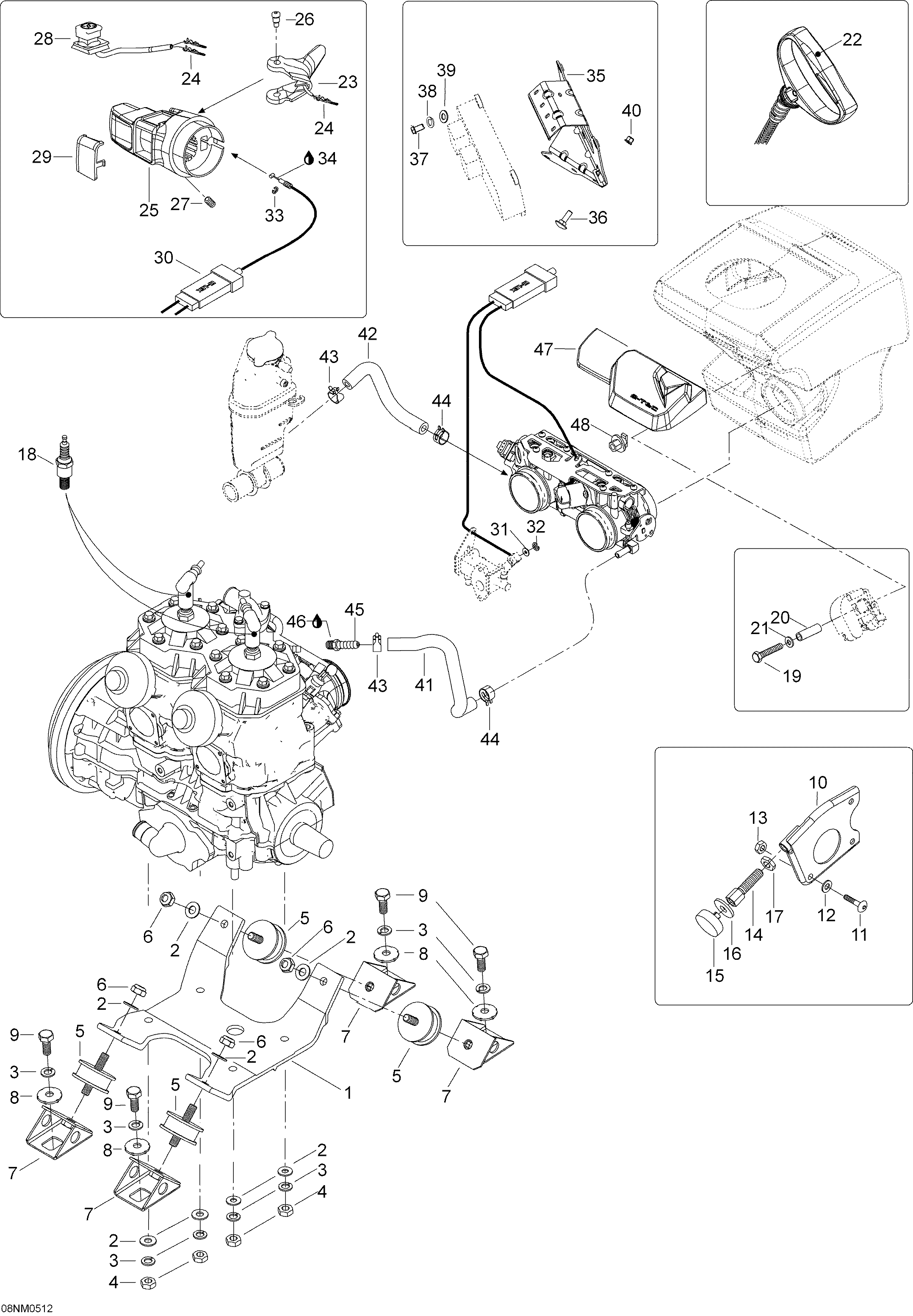

01- Engine для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1512059173 Engine supportEngine support
-
220105 Washer, hardened M10Washer, hardened M10
-
320047 Spring washer B10Spring washer B10
-
433004 Nut M10Nut M10
-
5570128700 RubberRubber
-
633012 Engine supportEngine support
-
7512050900 Engine supportEngine support
-
8512056700 Lock washerLock washer
-
940040 Screw M10 x 25Screw M10 x 25
-
10512058500 Support plateSupport plate
-
1140344 Socket head screw M8 x 25Socket head screw M8 x 25
-
1220104 Washer, hardenedWasher, hardened
-
1333011 Nut elastic M8Nut elastic M8
-
14512058800 Stopper screwStopper screw
-
15512059056 StopperStopper
-
1620023 WasherWasher
-
1733218 Jam nut M12Jam nut M12
-
18512059534 Spark plug BR9ECSSpark plug BR9ECS
-
1940193 Hex. screw M6 x 50Hex. screw M6 x 50
-
20512059812 SleeveSleeve
-
21234161471 Lock washer M6Lock washer M6
-
22572084400 GripGrip
-
23512059107 Throttle handleThrottle handle
-
2442603 ConnectorConnector
-
25512059763 Throttle handle housingThrottle handle housing
-
26732601143 ScrewScrew
-
27414440800 ScrewScrew
-
28515175410 Switch killSwitch kill
-
29572100901 CoverCover
-
30512059362 Throttle cableThrottle cable
-
31234081100 WasherWasher
-
3231035 CirclipCirclip
-
3331038 CirclipCirclip
-
34293550004 Dielectric-grease, 150gDielectric-grease, 150g
-
35512059613 BracketBracket
-
3640327 Hex. screw M6 x 12Hex. screw M6 x 12
-
3740030 Hex. screw M6 x 20Hex. screw M6 x 20
-
3820052 Lock washer A6Lock washer A6
-
3920009 Washer A6,4Washer A6,4
-
4036086 Nut M6Nut M6
-
41512059563 Formed hoseFormed hose
-
42512059892 Formed hoseFormed hose
-
43414655700 ClampClamp
-
44293650170 ClampClamp
-
45293710082 FittingFitting
-
46293800018 Loctite 592, 50mlLoctite 592, 50ml
-
47512059666 CoverCover
-
48512059786 LockLock
