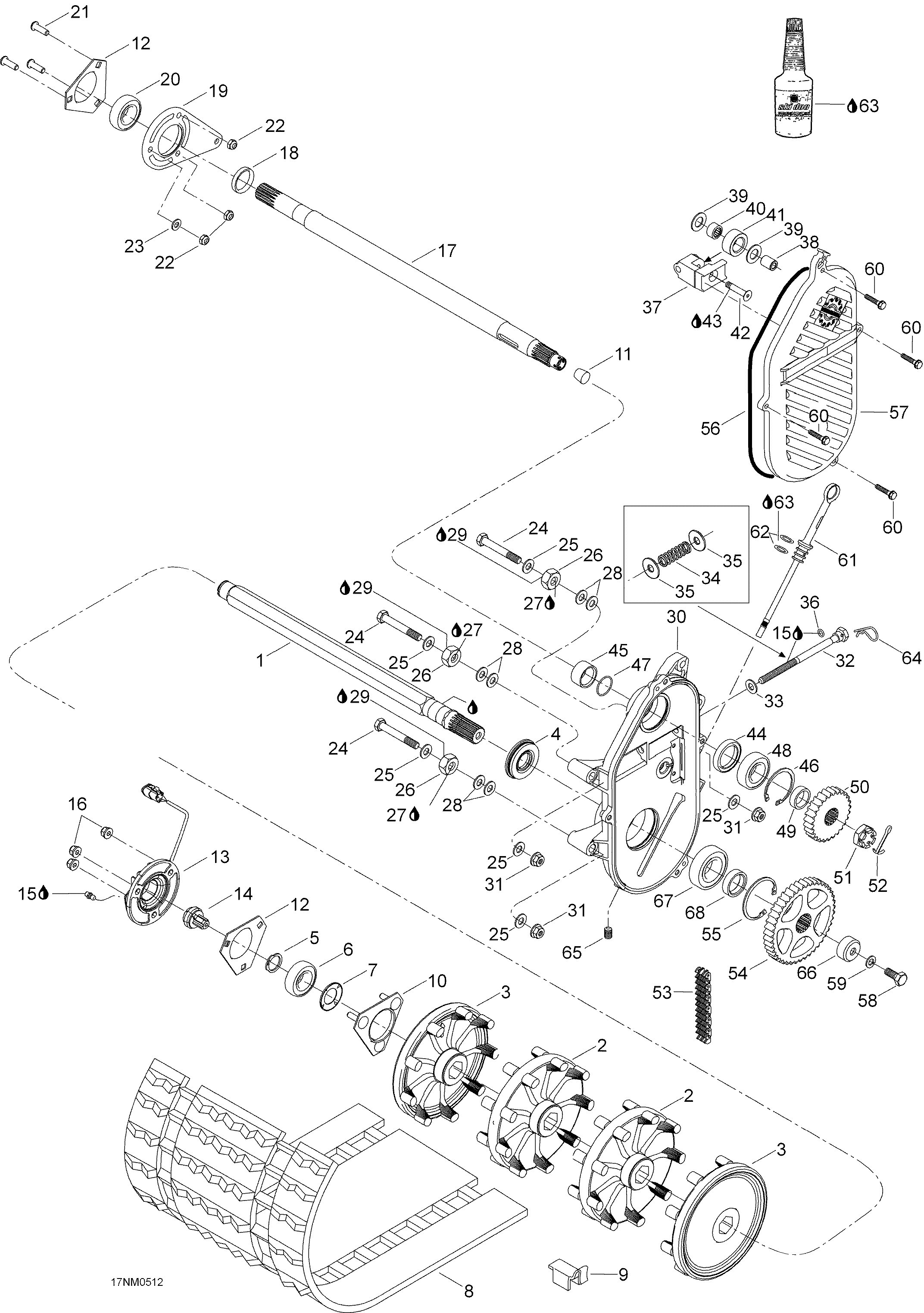

05- Drive System для BRP Lynx Sport Touring 600HO SDI - 2005
![](/wa-data/public/shop/sheme/bombardier/lynx/d30e1e26-dcc6-412e-88f7-a01dcb26fe0c.png)
-
№АртикулНазвание
-
-5346820 Drive axle assy. Includes 1 to 4Drive axle assy. Includes 1 to 4
-
1501027400 Drive axleDrive axle
-
2504151781 Sprocket 9 teethSprocket 9 teeth
-
3504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
4504151918 Oil sealOil seal
-
531001 CirclipCirclip
-
6504152009 BearingBearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8504152039 Track (31,8). Includes 8 to 9Track (31,8). Includes 8 to 9
-
9500003400 Guide cleatGuide cleat
-
10504151860 Bearing housingBearing housing
-
11414784800 CorkCork
-
12501025000 FlangeFlange
-
13504152173 FlangeFlange
-
14504152040 Magnetic, adaptorMagnetic, adaptor
-
15219700417 Synthetic greaseSynthetic grease
-
1633201 Elastic flanged nut M8Elastic flanged nut M8
-
17501026300 Counter shaftCounter shaft
-
18504149100 HylsaHylsa
-
1980044200 Casting SpacerCasting Spacer
-
20504152026 Bearing ballBearing ball
-
2140344 Socket head screw M8 x 25Socket head screw M8 x 25
-
2233011 Elastic stop nut M8Elastic stop nut M8
-
2320104 WasherWasher
-
2440190 Hex. screw M10 x 80Hex. screw M10 x 80
-
2520005 Washer A10,5Washer A10,5
-
26504083800 SpacerSpacer
-
27293800060 Loctite 243, 10mlLoctite 243, 10ml
-
28504073700 ShimShim
-
29293800070 Loctite 767, 10mlLoctite 767, 10ml
-
30504152062 ChaincaseChaincase
-
3133012 Elastic stop nut M10Elastic stop nut M10
-
32504151946 Adjusting screwAdjusting screw
-
33503189148 Washer, hardenedWasher, hardened
-
34504151945 SpringSpring
-
35503125900 Washer, hardenedWasher, hardened
-
36504151954 O-ringO-ring
-
37504151940 Chain tensionerChain tensioner
-
38504080200 SleeveSleeve
-
39504080300 WasherWasher
-
40405403000 Needle bearingNeedle bearing
-
41414531300 RollerRoller
-
42732601144 ScrewScrew
-
43293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
44415049300 SealSeal
-
45507031500 SleeveSleeve
-
46371901700 CirclipCirclip
-
47414876700 O-ringO-ring
-
48504152006 Ball bearingBall bearing
-
49504147200 ShimShim
-
50504090900 Sprocket Z24Sprocket Z24
-
51250000012 Castalled nut M20Castalled nut M20
-
5241003 Cotter pinCotter pin
-
53504151857 Chain driving, 13/74Chain driving, 13/74
-
54504148500 Sprocket Z43/13Sprocket Z43/13
-
55415064300 CirclipCirclip
-
56415046400 SealSeal
-
57504152027 CoverCover
-
5840040 Hex. screw M10 x 25Hex. screw M10 x 25
-
5920068 Lock washerLock washer
-
6040340 Self tapping screw M6 x 30Self tapping screw M6 x 30
-
61504151703 Filler cap ass'yFiller cap ass'y
-
62414969400 O-ringO-ring
-
63413803300 Synthetic chaincase oil (12 x 355 ml)Synthetic chaincase oil (12 x 355 ml)
-
64414575600 PinPin
-
65504151921 PlugPlug
-
66504152104 SpacerSpacer
-
67504152005 Bearing ballBearing ball
-
68504152058 SpacerSpacer
