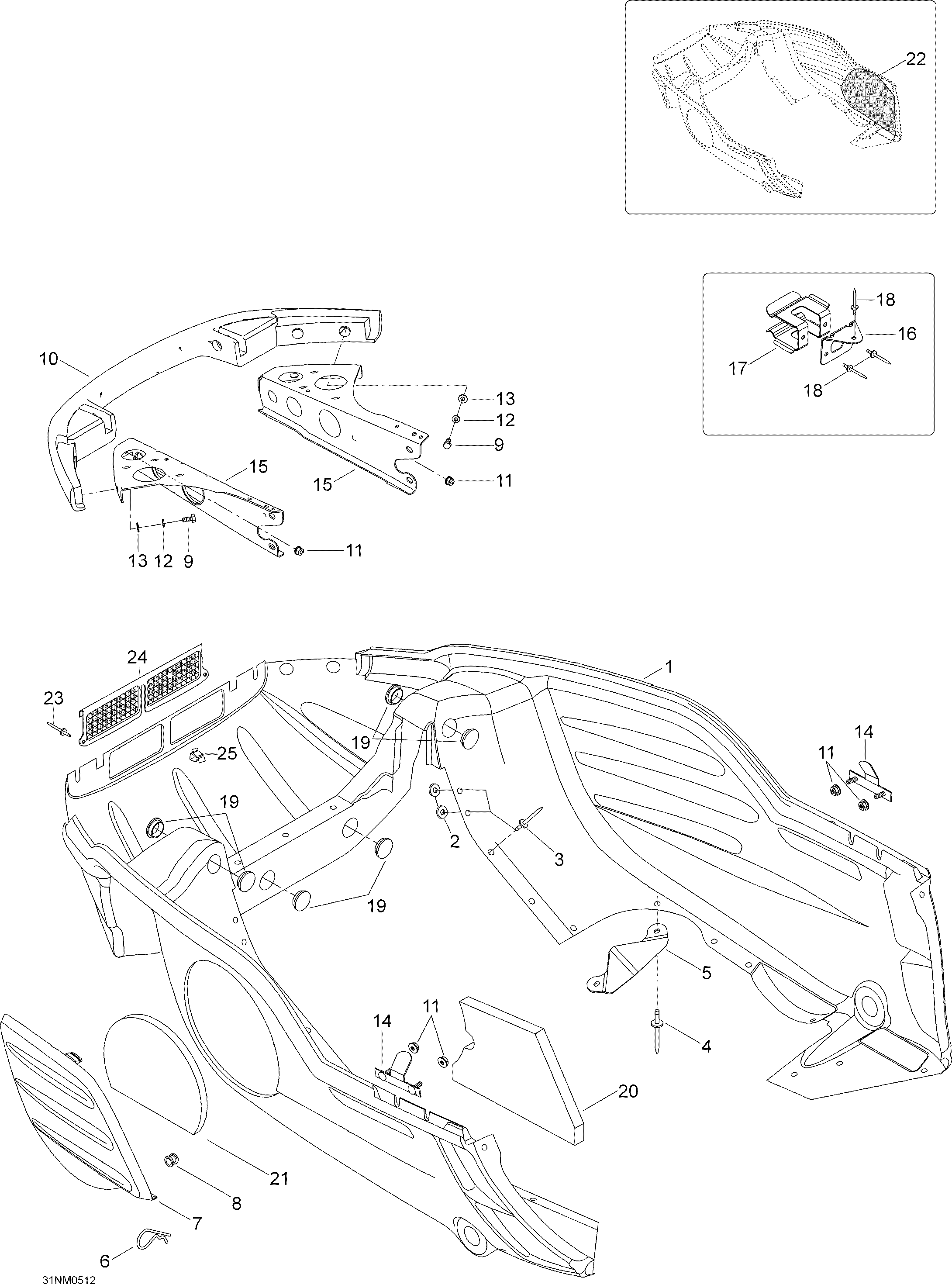

09- Bottom Pan для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1605352471 Bottom pan, blackBottom pan, black
-
220008 WasherWasher
-
336037 RivetRivet
-
436087 RivetRivet
-
5502006563 Deflector snowDeflector snow
-
6414575600 PinPin
-
7502006506 Bottom pan doorBottom pan door
-
8414036300 GrommetGrommet
-
940029 Hex. screw M6 x 16Hex. screw M6 x 16
-
10502006719 Bumper, blackBumper, black
-
1133200 Elastic flange nut M6Elastic flange nut M6
-
1220052 Lock washer A6Lock washer A6
-
1320009 Washer A6,4Washer A6,4
-
14502006645 BracketBracket
-
15502006597 Support LHSupport LH
-
15502006596 pport RHpport RH
-
16502006599 BracketBracket
-
17517281905 Belt supportBelt support
-
1836489 RivetRivet
-
19414916600 Nylon capNylon cap
-
20605250270 Bottom foamBottom foam
-
21605350269 Bottom pan door foamBottom pan door foam
-
22605249386 Heat protectorHeat protector
-
2336036 RivetRivet
-
24502006697 GrillGrill
-
25517302785 ClipClip
