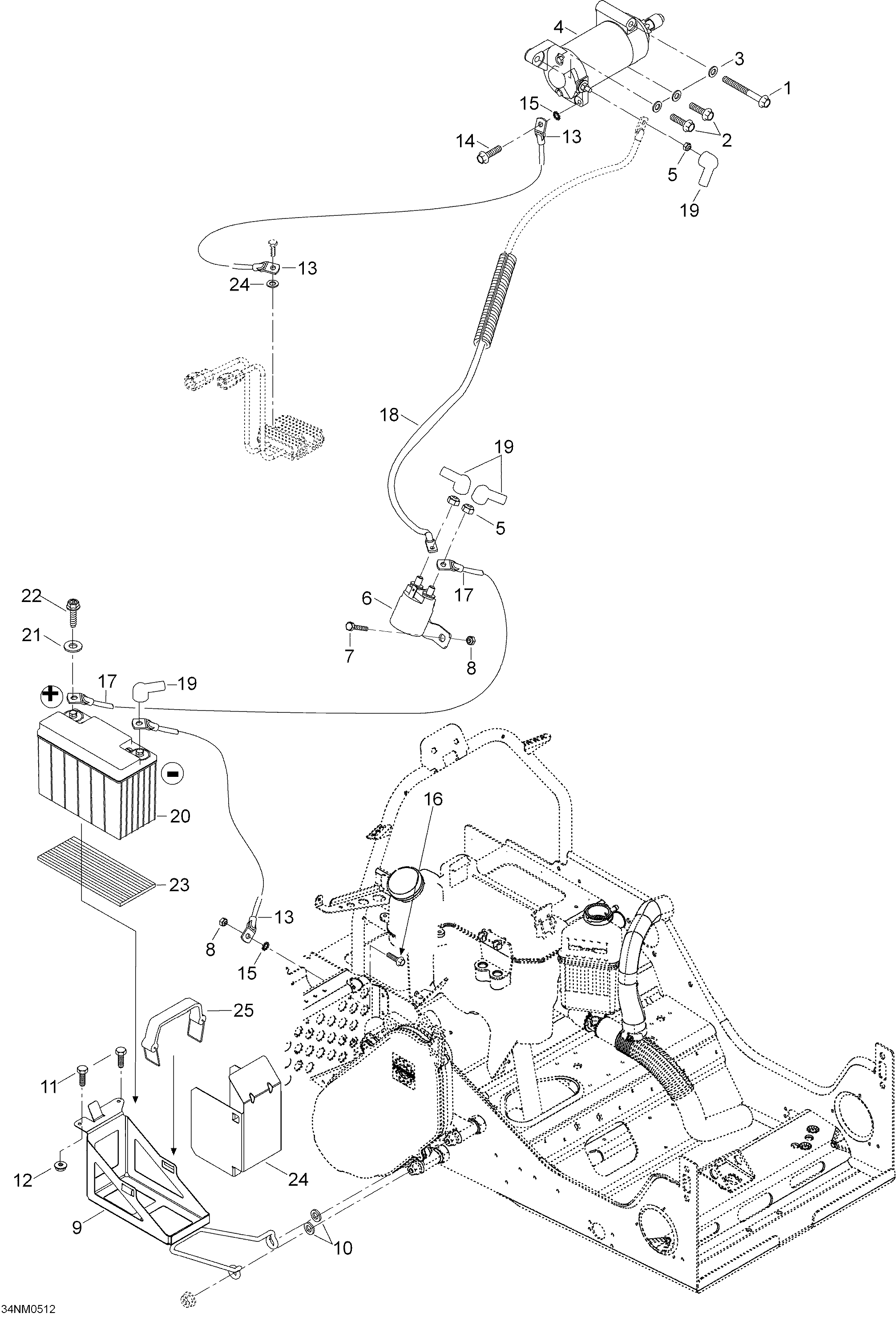

10- Electrical System для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1207587544 Hex. screw M8 x 75Hex. screw M8 x 75
-
2207583044 Hex. screw M8 x 30Hex. screw M8 x 30
-
3250200008 WasherWasher
-
4515176003 Electric starter assyElectric starter assy
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6515176011 Relay-starterRelay-starter
-
740029 Hex. screw M6 x 16Hex. screw M6 x 16
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
9515175848 Battery supportBattery support
-
1020005 Washer A10,5Washer A10,5
-
1140308 Socket head screw M5 x 16Socket head screw M5 x 16
-
1233062 Elastic flanged nut M5Elastic flanged nut M5
-
13515175483 Ground wireGround wire
-
14207361644 Hex. screw M6 x 16Hex. screw M6 x 16
-
1520017 Lock washer serrated M6Lock washer serrated M6
-
1640029 Screw M6 x 16Screw M6 x 16
-
17515175555 Battery wireBattery wire
-
185448151 Battery wireBattery wire
-
19570151000 Protector capProtector cap
-
20515175642 Battery. Includes 20 to 22Battery. Includes 20 to 22
-
21391302100 WasherWasher
-
22207161644 Screw M6x16Screw M6x16
-
235347314 RubberRubber
-
24515175643 ProtectorProtector
-
25515175475 Battery strapBattery strap
