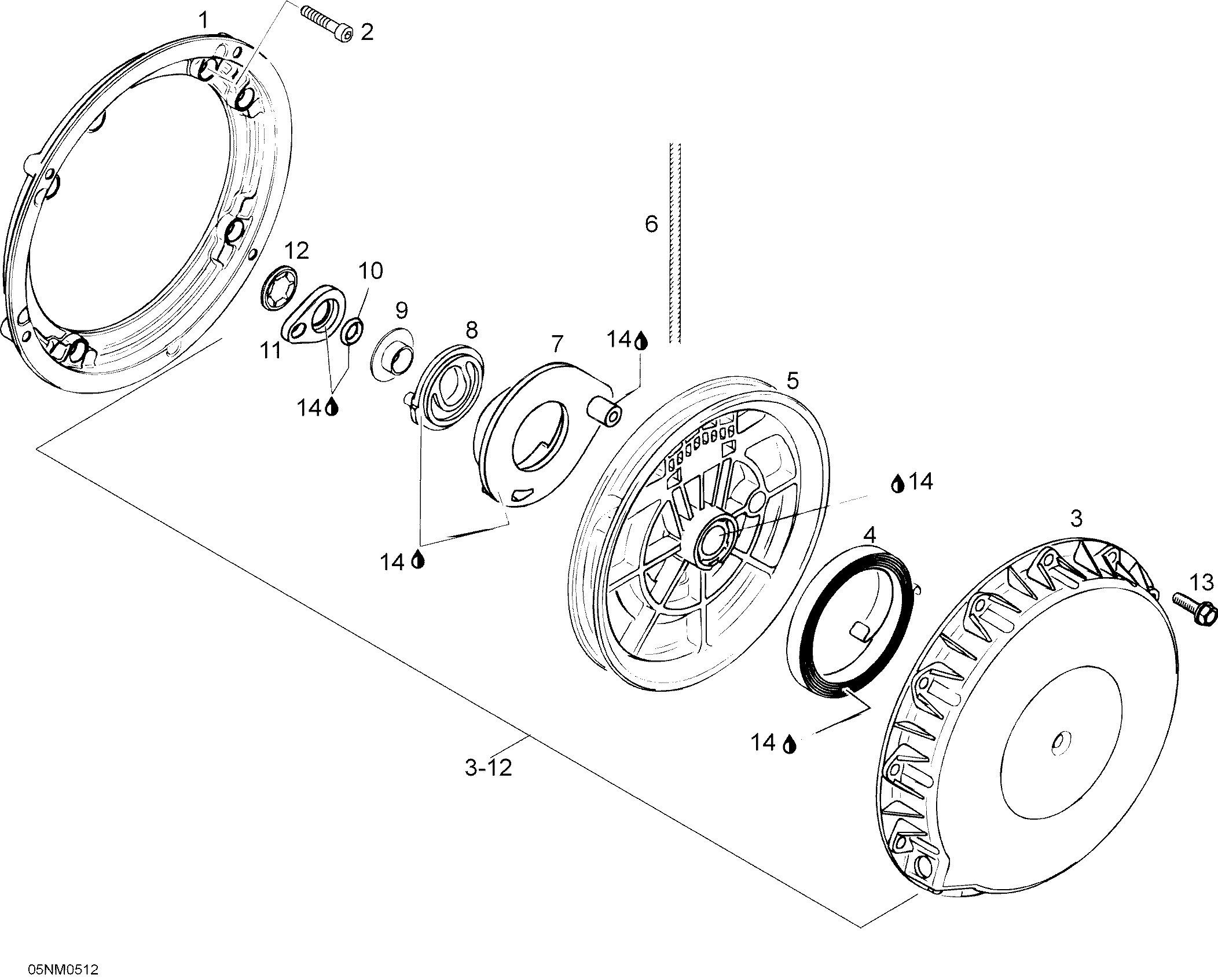

04- Rewind Starter для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1420810868 Connecting flangeConnecting flange
-
2420241236 Socket head screw M6 x 16Socket head screw M6 x 16
-
-420889765 Rewind starter ass'y. Includes 3 to 12Rewind starter ass'y. Includes 3 to 12
-
3420811403 Starter housingStarter housing
-
4420939115 Rewind spring ass'yRewind spring ass'y
-
5420852288 Rope sheaveRope sheave
-
6420852492 Starter rope 2200 mmStarter rope 2200 mm
-
6412500200 Starter rope 30mStarter rope 30m
-
7420852297 PawlPawl
-
8420852307 Pawl lockPawl lock
-
9420847925 Stage slleveStage slleve
-
10420250400 O-ringO-ring
-
11420852520 Lock leverLock lever
-
12420845560 Locking elementLocking element
-
13420941256 Torx taptite screw M6 x 20Torx taptite screw M6 x 20
-
14420899763 Molykote PG 54, 10gMolykote PG 54, 10g
