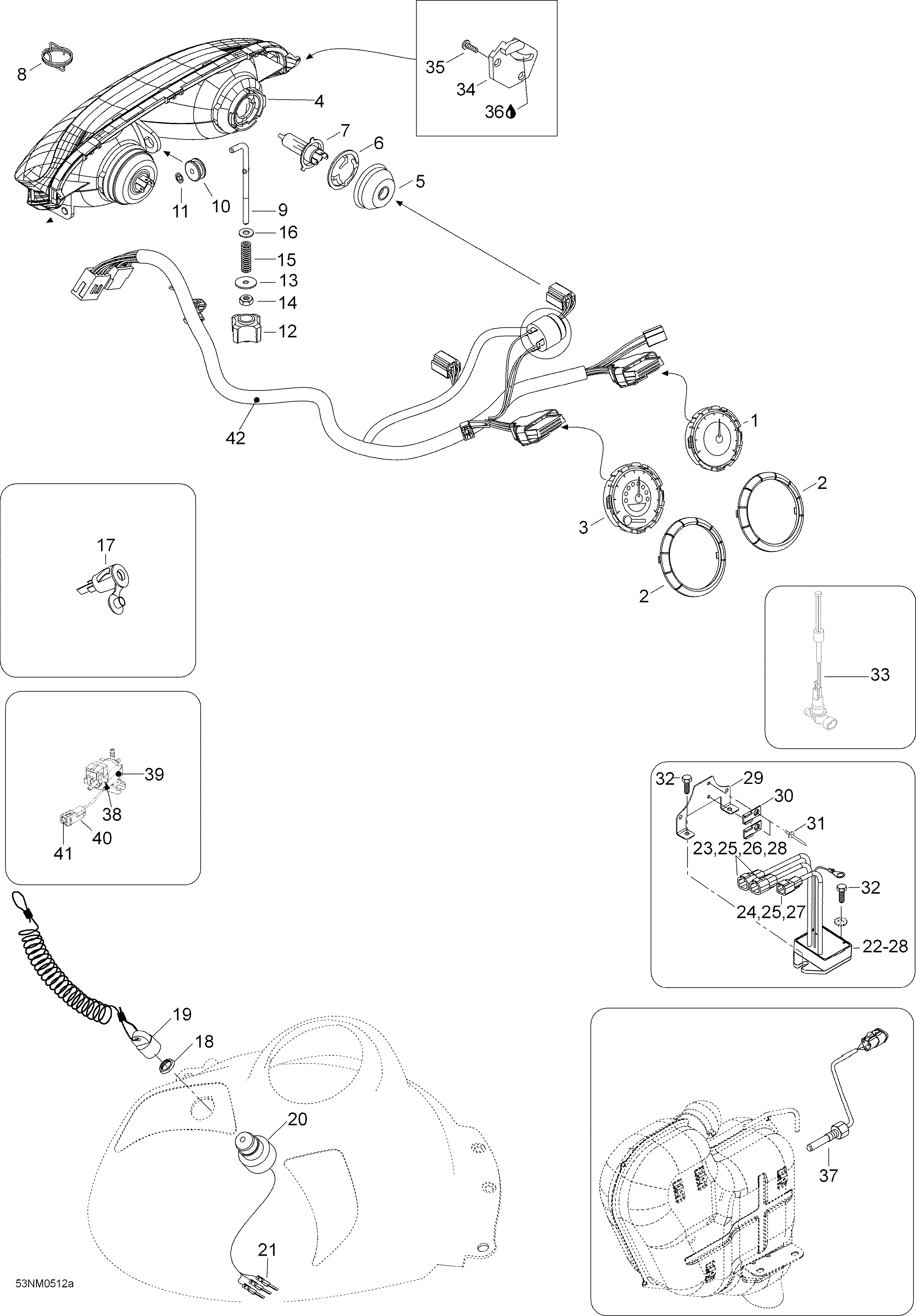

10- Electrical System для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1515176244 SpeedometerSpeedometer
-
2515175651 Ring gaugeRing gauge
-
3515176275 TachometerTachometer
-
4515175909 Halogen headlamp assy. Includes 5 to 7Halogen headlamp assy. Includes 5 to 7
-
5410607100 CoverCover
-
6410608300 Bulb holderBulb holder
-
7410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
85447238 SpringSpring
-
9517295800 Adjuster RodAdjuster Rod
-
10415100800 GrommetGrommet
-
11732610072 Nut PushNut Push
-
12515175548 HandleHandle
-
1320038 WasherWasher
-
1433010 Nut elastic M6Nut elastic M6
-
15415100600 SpringSpring
-
1620003 Washer A6,4Washer A6,4
-
1742026 Flush Mounted SocketFlush Mounted Socket
-
18278000508 NutNut
-
19515166900 Cap assy, D.E.S.S.Cap assy, D.E.S.S.
-
20515175145 D.E.S.S. switchD.E.S.S. switch
-
2142603 Male terminalMale terminal
-
22515176023 rectifier ass'y. Includes 22 to 28rectifier ass'y. Includes 22 to 28
-
23278001477 Male terminal housingMale terminal housing
-
24278001674 Male terminal housingMale terminal housing
-
25515175568 Male terminalMale terminal
-
26278001478 Male lockMale lock
-
27278001672 Male lockMale lock
-
28293000052 Sealing capSealing cap
-
29515175923 BracketBracket
-
30270000141 ClipClip
-
3136005 RivetRivet
-
3240322 Self tapping screw M6 x 16Self tapping screw M6 x 16
-
33515176016 SensorSensor
-
34517289300 Headlamp Support R.HHeadlamp Support R.H
-
34517289400 Headlamp Support L.HHeadlamp Support L.H
-
3540177 Screw b4,8 x 16Screw b4,8 x 16
-
36413707500 Grease 400gGrease 400g
-
37515176132 Exhaust temperature sensorExhaust temperature sensor
-
38515176087 HeaterHeater
-
39512059809 BracketBracket
-
40515175654 Connector housingConnector housing
-
41515175232 ConnectorConnector
-
42605149624 Wiring harness ass'y, front lightWiring harness ass'y, front light
