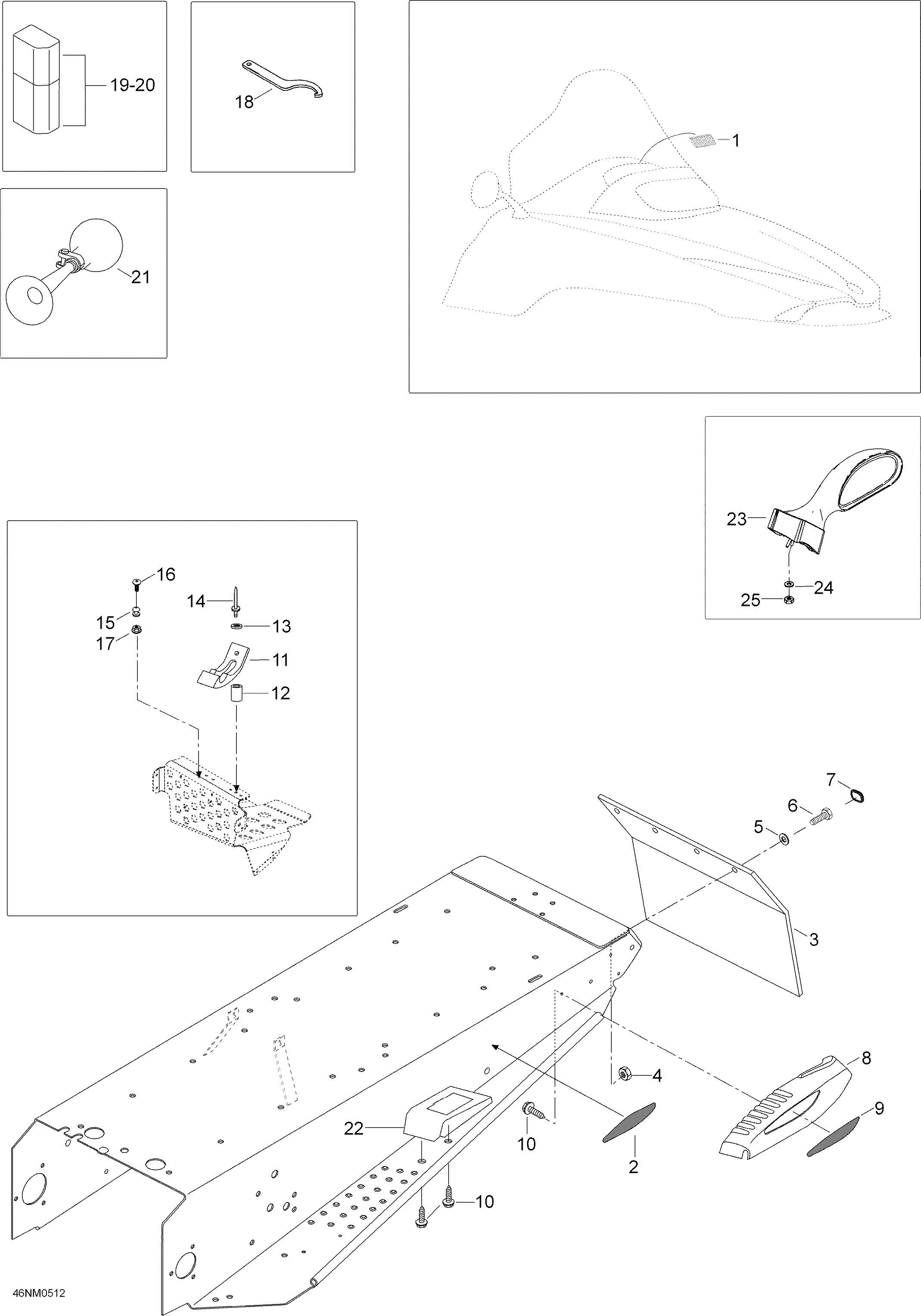

09- Utilities для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
121060 Reflector, brightReflector, bright
-
221135 Reflector, yellowReflector, yellow
-
35246859 Snow quardSnow quard
-
433200 Elastic flanged nut M6Elastic flanged nut M6
-
520009 Washer A6,4Washer A6,4
-
640078 Screw M6 x 22Screw M6 x 22
-
7415073300 CapCap
-
8605251970 R.H. MoldingR.H. Molding
-
8605251971 L.H. MoldingL.H. Molding
-
9516000241 R.H. Rear reflectorR.H. Rear reflector
-
9516000242 L.H. Rear reflectorL.H. Rear reflector
-
1040870 ScrewScrew
-
11531955 LatchLatch
-
12543417 SleeveSleeve
-
13543392 WasherWasher
-
1436072 RivetRivet
-
15605449087 Counter rollCounter roll
-
1640168 Screw M4 x 25Screw M4 x 25
-
1733008 Elastic stop nut M4Elastic stop nut M4
-
18529032900 Wrench adjustWrench adjust
-
19605350525 Tool set. Includes 19 to 20Tool set. Includes 19 to 20
-
20708200041 Tool boxTool box
-
2121003 HornHorn
-
22572088700 R.H. Foot RestR.H. Foot Rest
-
22572088800 L.H. Foot RestL.H. Foot Rest
-
23517302764 R.H. MirrorR.H. Mirror
-
23517302766 L.H. MirrorL.H. Mirror
-
2420037 Washer A4,3Washer A4,3
-
2533008 Elastic stop nut M4Elastic stop nut M4
