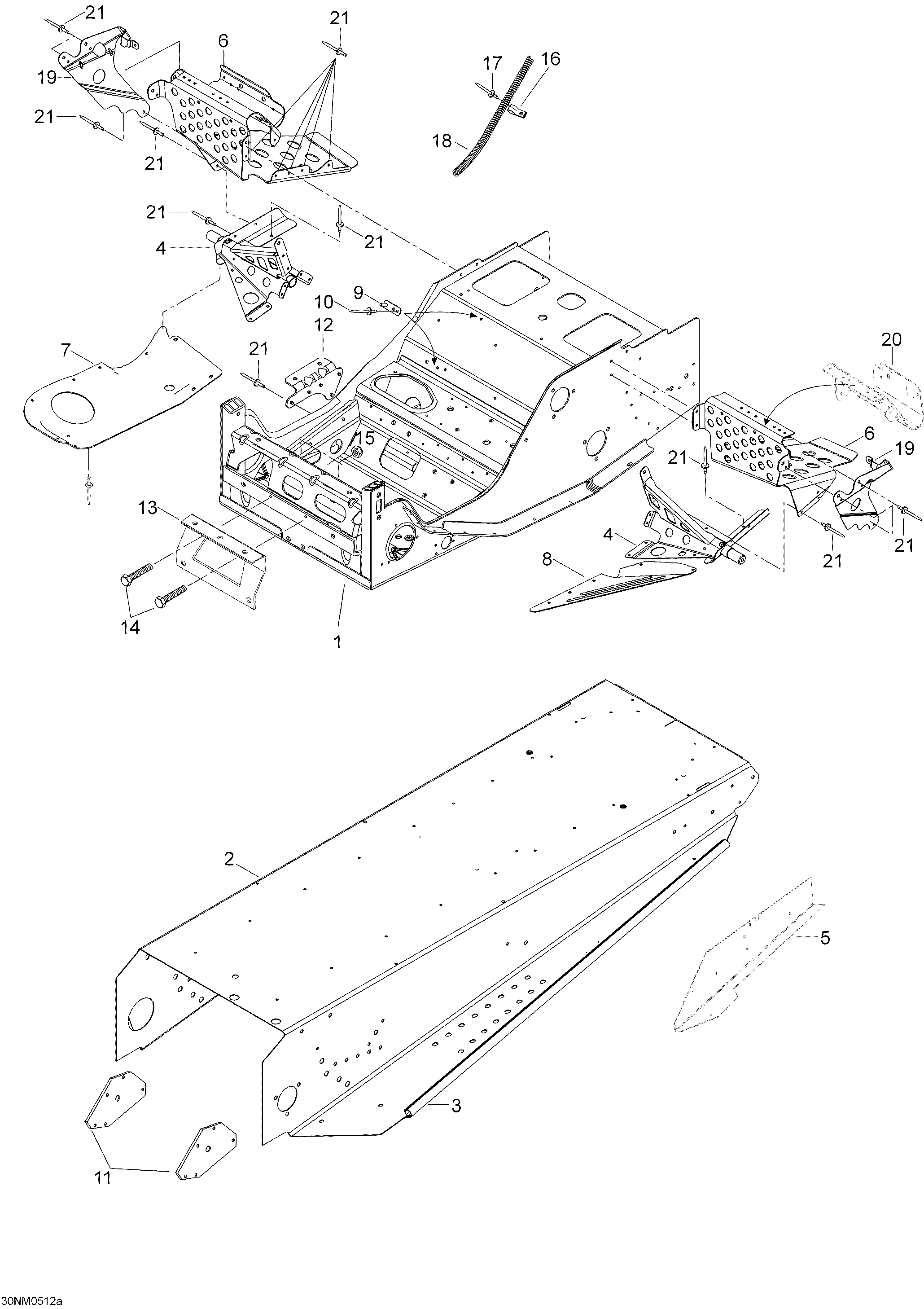

09- Frame для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1605151171 Frame ass'yFrame ass'y
-
35348046 SupportSupport
-
4605151358 R.H. supportR.H. support
-
4605151359 L.H. supportL.H. support
-
5605351194 L.H. bracketL.H. bracket
-
5605351195 R.H. bracketR.H. bracket
-
6605250239 R.H. front footrestR.H. front footrest
-
6605250240 L.H. front footrestL.H. front footrest
-
7518322636 R.H. bottom pan plateR.H. bottom pan plate
-
8605349267 L.H. reinf. plateL.H. reinf. plate
-
9518319728 Double bracketDouble bracket
-
1036489 RivetRivet
-
115348321 SupportSupport
-
12518322635 Muffler supportMuffler support
-
135346111 Support plateSupport plate
-
1440029 Hex. screw M6 x 16Hex. screw M6 x 16
-
1533200 Elastic flanged nut M6Elastic flanged nut M6
-
1627092 ClampClamp
-
1736036 RivetRivet
-
18518321569 Rope guideRope guide
-
195146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
195146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
20605149607 R.H. toe holdR.H. toe hold
-
205146918 R.H. toe holdR.H. toe hold
-
2136108 RivetRivet
