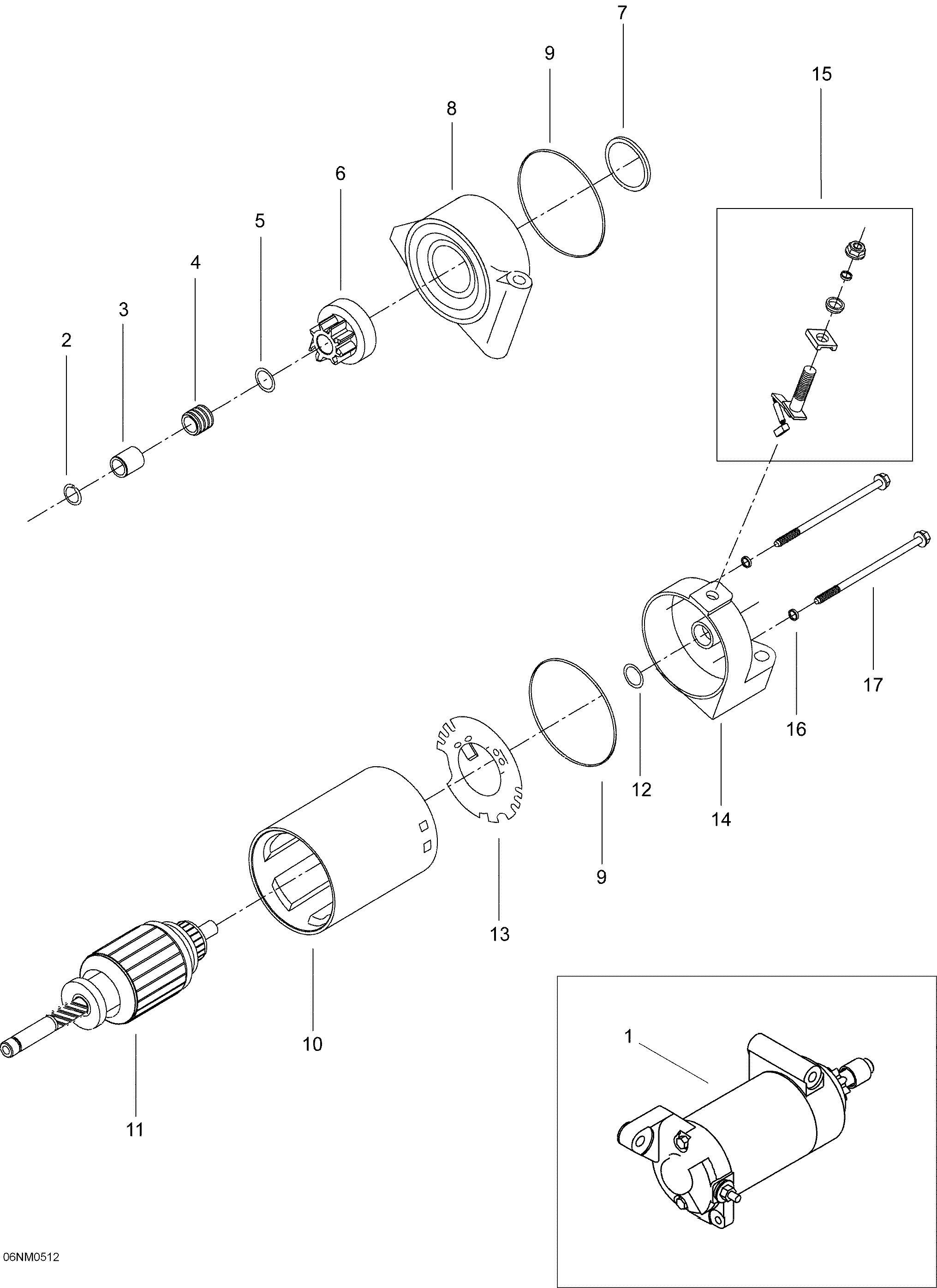

02- Electric Starter для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1515176003 Electric starter assy. Includes 1 to 17Electric starter assy. Includes 1 to 17
-
2410207700 CirclipCirclip
-
3515175928 NutNut
-
4410922957 SpringSpring
-
5278001105 WasherWasher
-
6410922958 ClutchClutch
-
7278000696 O-RingO-Ring
-
8410922959 Housing ass'yHousing ass'y
-
9278000695 O-RingO-Ring
-
10410213104 Yoke ass'yYoke ass'y
-
11515175785 Armature ass'yArmature ass'y
-
12410204500 Thrust washerThrust washer
-
13515175786 Holder ass'yHolder ass'y
-
14410922960 Housing ass'yHousing ass'y
-
15410212100 Brush kitBrush kit
-
16278000060 O-RingO-Ring
-
17410922961 BoltBolt
