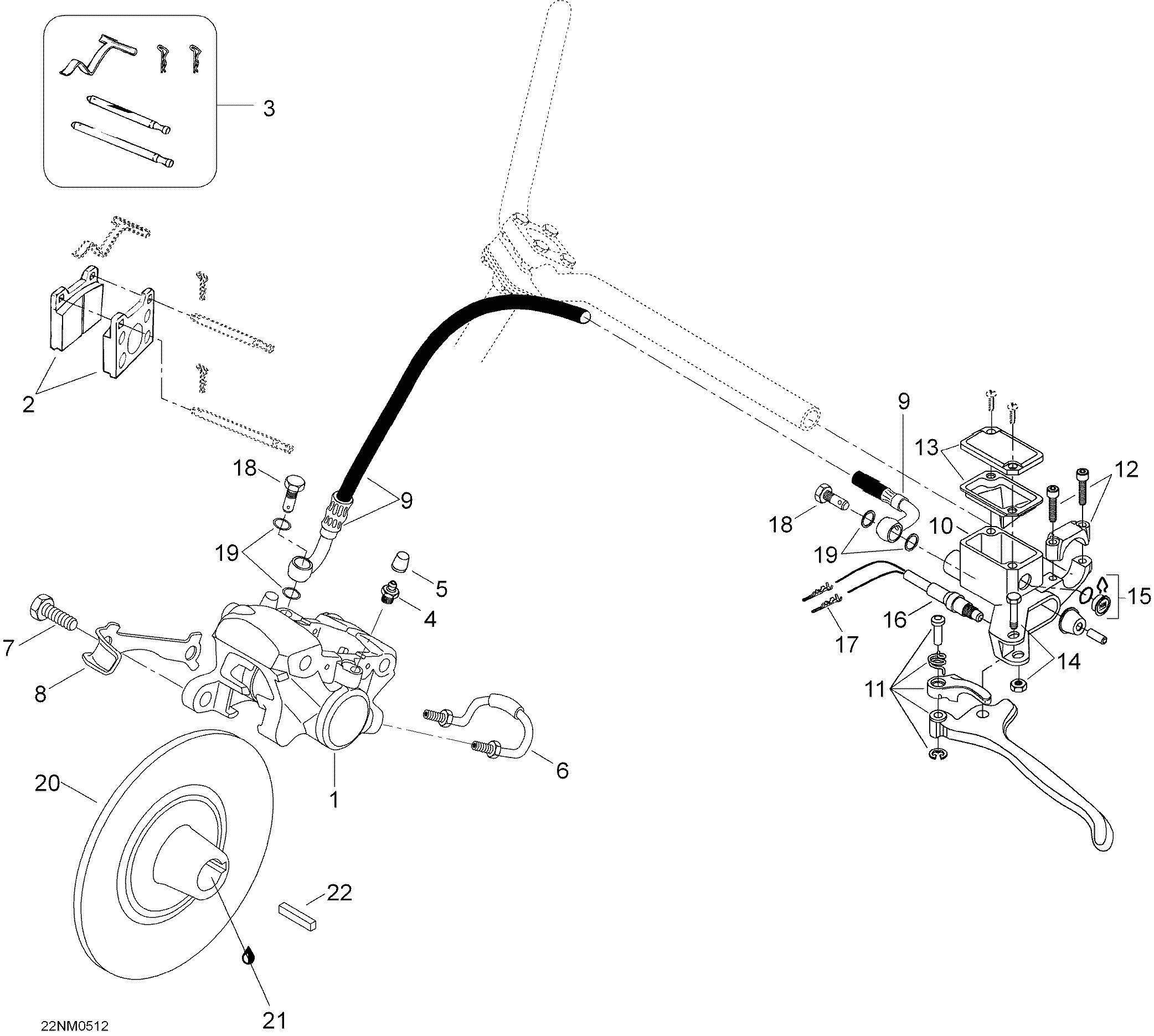

06- Hydraulic Brake для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1507032409 CaliberCaliber
-
2415084600 Brake lining kitBrake lining kit
-
3415128865 Kit (pins,retainers,spring)Kit (pins,retainers,spring)
-
4414989800 Screw-bleederScrew-bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
740049 Screw M10 x 35Screw M10 x 35
-
8507032316 Locking tabLocking tab
-
9507032237 HoseHose
-
10507032361 Master cylinderMaster cylinder
-
11507032268 Short brake leverShort brake lever
-
12415029800 Clamp assyClamp assy
-
13415029900 CoverCover
-
14415030000 Pin ass'yPin ass'y
-
15414990600 WindowWindow
-
16507032366 Microswitch ass'yMicroswitch ass'y
-
1742603 ConnectorConnector
-
18414920500 Banjo-boltBanjo-bolt
-
19414920600 WasherWasher
-
20507031300 Brake diskBrake disk
-
21293800070 Loctite 767, 8ozLoctite 767, 8oz
-
22507021300 KeyKey
