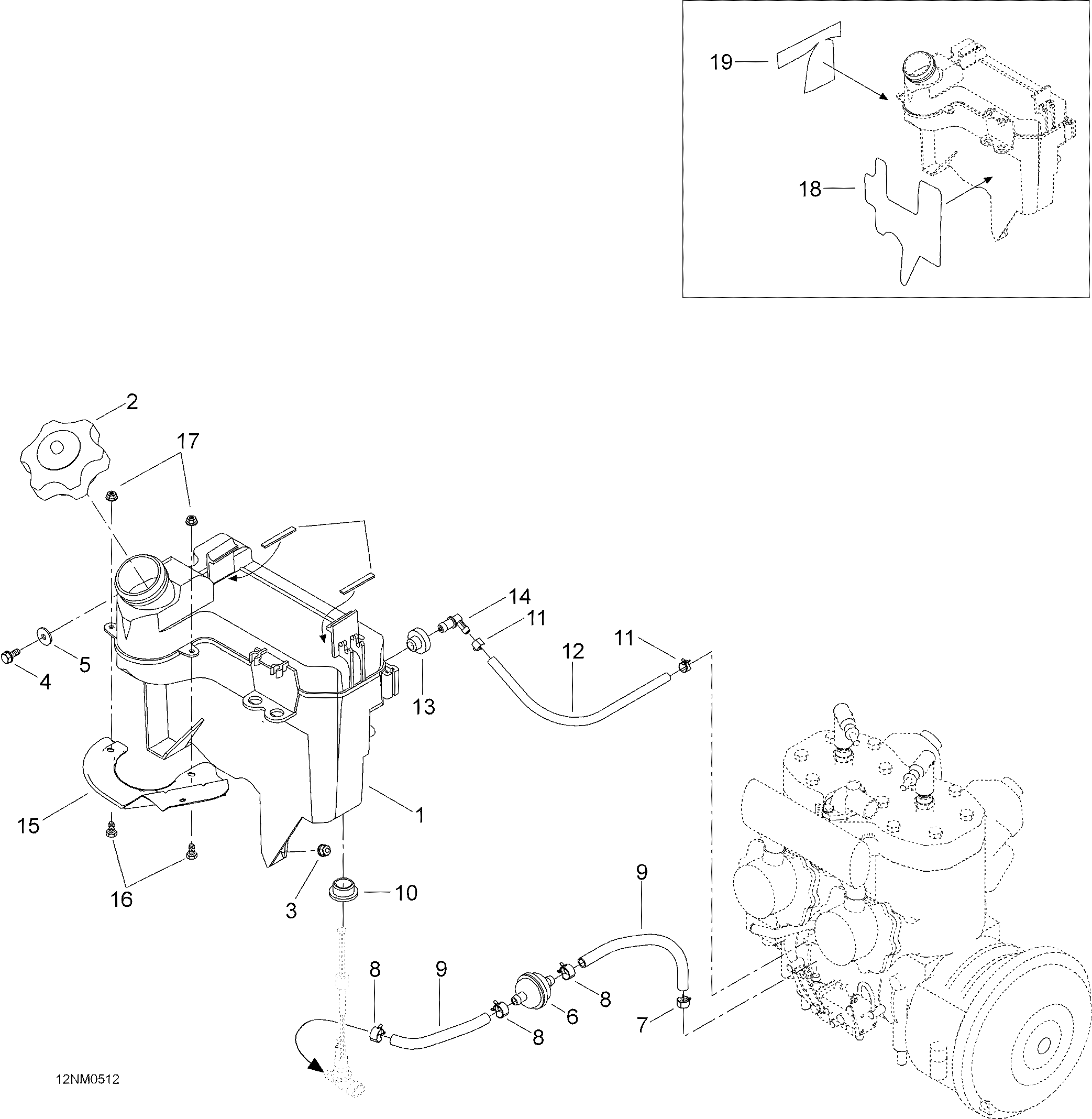

02- Oil Tank And Support для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1519000049 Oil tankOil tank
-
2519000042 Oil tank capOil tank cap
-
333200 Elastic flange nut M6Elastic flange nut M6
-
440327 Self tapping screw M6 x 12Self tapping screw M6 x 12
-
520017 Serrated lock washerSerrated lock washer
-
6414536500 Oil filterOil filter
-
7414420700 ClampClamp
-
8414415200 ClampClamp
-
939046 HoseHose
-
10570023000 GrommetGrommet
-
11414554800 ClampClamp
-
1239038 HoseHose
-
13570135100 GrommetGrommet
-
14414580700 Male connectorMale connector
-
155348098 DeflectorDeflector
-
1640026 Screw M5 x 12Screw M5 x 12
-
1733062 Elastic flange nut M5Elastic flange nut M5
-
18519000059 Reflective sheetReflective sheet
-
19519000051 Reflective sheetReflective sheet
