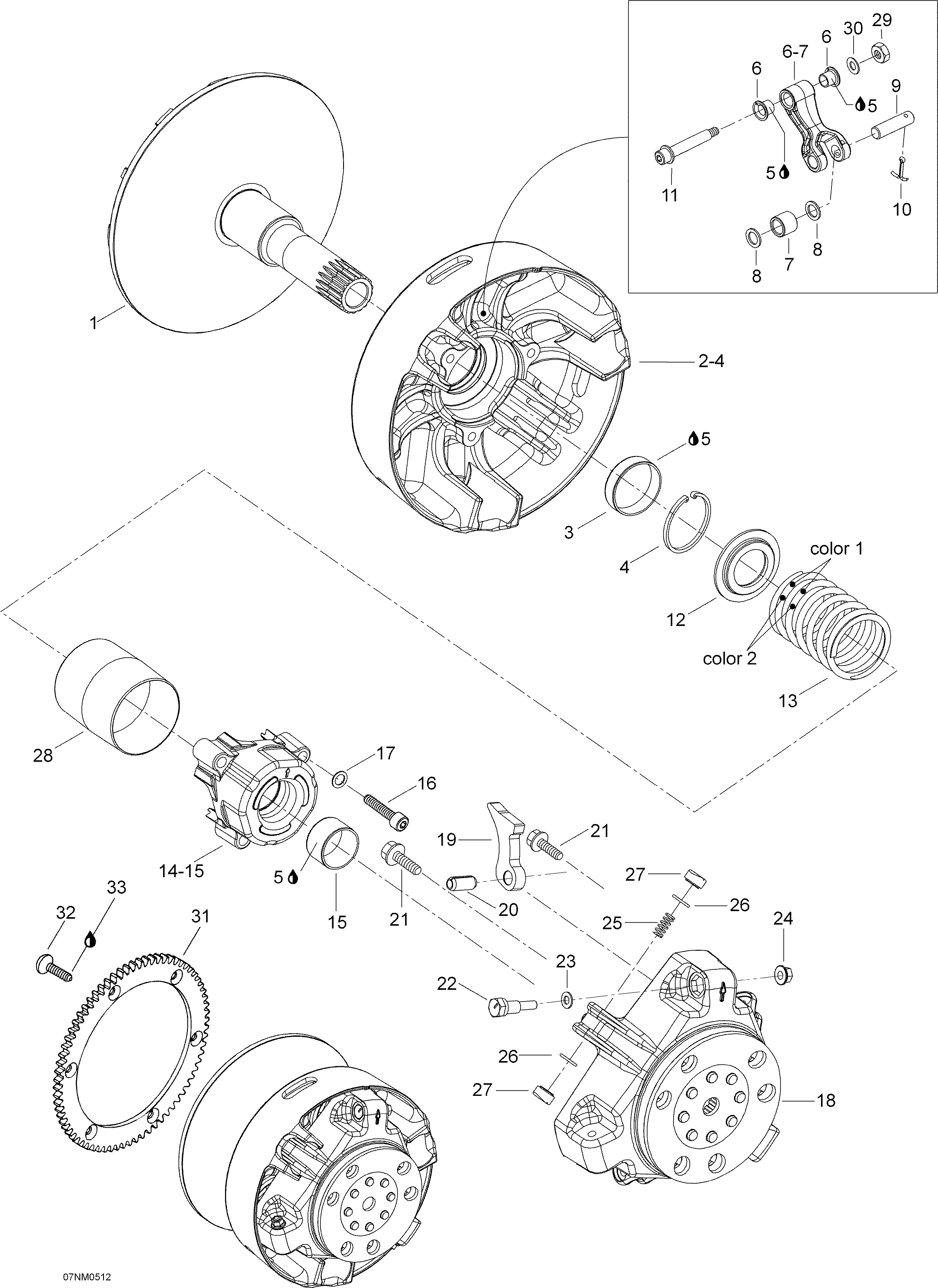

05- Drive Pulley для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1417222167 Fixe flangeFixe flange
-
2417222171 Sliding flange. Includes 2 to 4Sliding flange. Includes 2 to 4
-
3417222182 Bushing outer halfBushing outer half
-
4293370037 CirclipCirclip
-
5413703100 Loctite 609Loctite 609
-
-417222671 Lever assy. Includes 6 to 7Lever assy. Includes 6 to 7
-
6417222633 Flange bushingFlange bushing
-
7417003900 Roller ass'yRoller ass'y
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
11417222028 Fitting screwFitting screw
-
12417222312 Spring seatSpring seat
-
13414689500 Spring, Blue/YellowSpring, Blue/Yellow
-
14417007500 Spring cover ass'y. Includes 14 to 15Spring cover ass'y. Includes 14 to 15
-
15417009204 Spring cover bushingSpring cover bushing
-
16205084044 Socket head screw M6 x 40Socket head screw M6 x 40
-
17250200009 WasherWasher
-
18417222213 Gouvernor cup ass'yGouvernor cup ass'y
-
19417222546 Ramp 414Ramp 414
-
20250400009 Dowel tube M8x24Dowel tube M8x24
-
21250000059 Hex. locking screw M6 x 18Hex. locking screw M6 x 18
-
22417005500 Calibration screwCalibration screw
-
23417005600 WasherWasher
-
24233061414 Locking nut M6Locking nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417222362 Shoe sliderShoe slider
-
28417009205 ProtectorProtector
-
29232561414 NutNut
-
30234061410 WasherWasher
-
31417222321 Ring gearRing gear
-
32250000049 ScrewScrew
-
33293800005 Loctite 271, 10mlLoctite 271, 10ml
