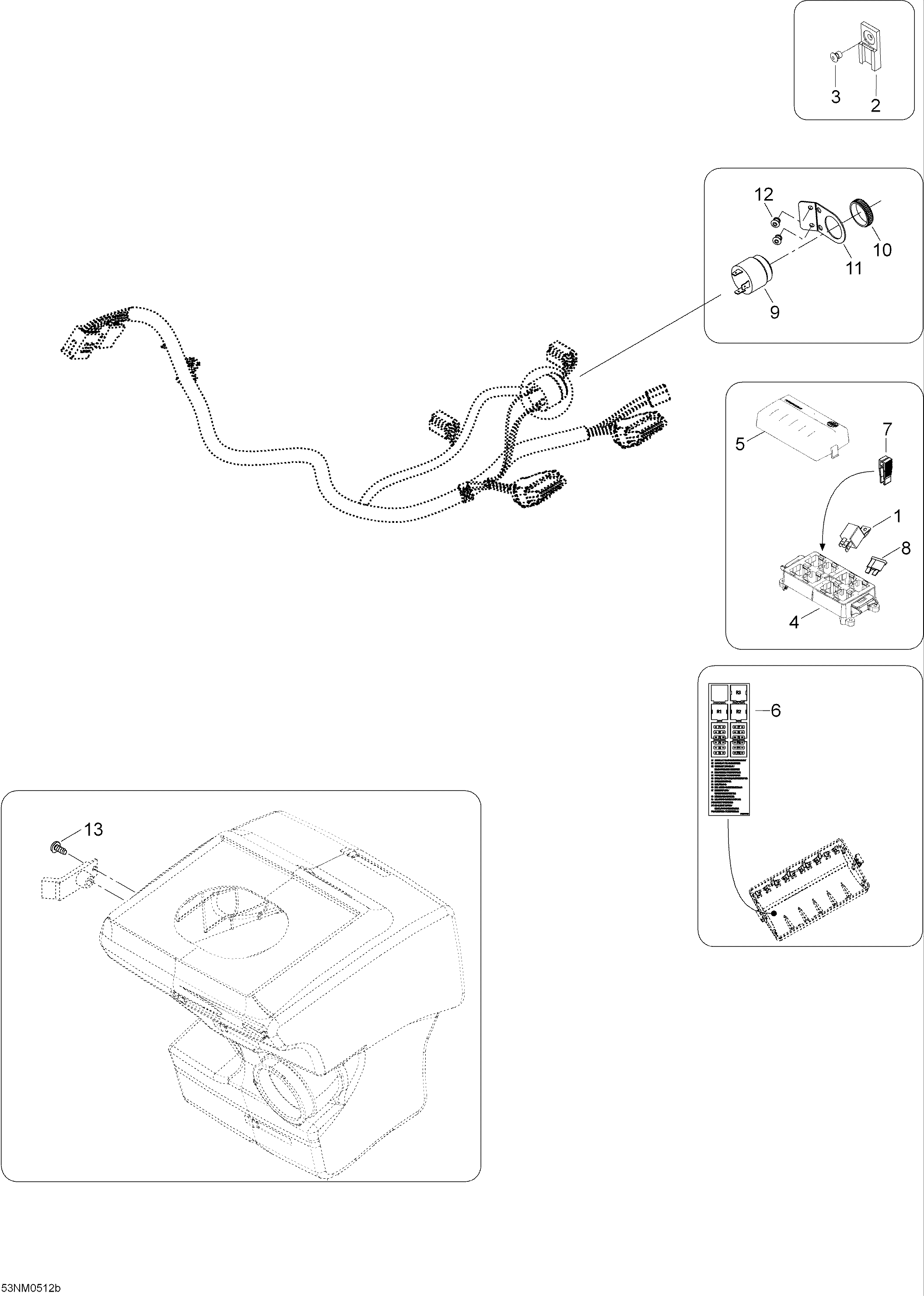

10- Electrical System для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1410113604 RelayRelay
-
2270000141 ClipClip
-
336005 RivetRivet
-
4515176065 Fuse boxFuse box
-
5515176066 CoverCover
-
6516001613 DecalDecal
-
7515175811 ToolTool
-
8278000344 Fuse 5 AFuse 5 A
-
8278000704 Fuse 7.5 AFuse 7.5 A
-
8409003900 Fuse 20 AFuse 20 A
-
8410917200 Fuse 30 AFuse 30 A
-
9515176035 DC-hornDC-horn
-
10414805101 Ring nutRing nut
-
115447941 BracketBracket
-
1236005 RivetRivet
-
13414745900 ScrewScrew
