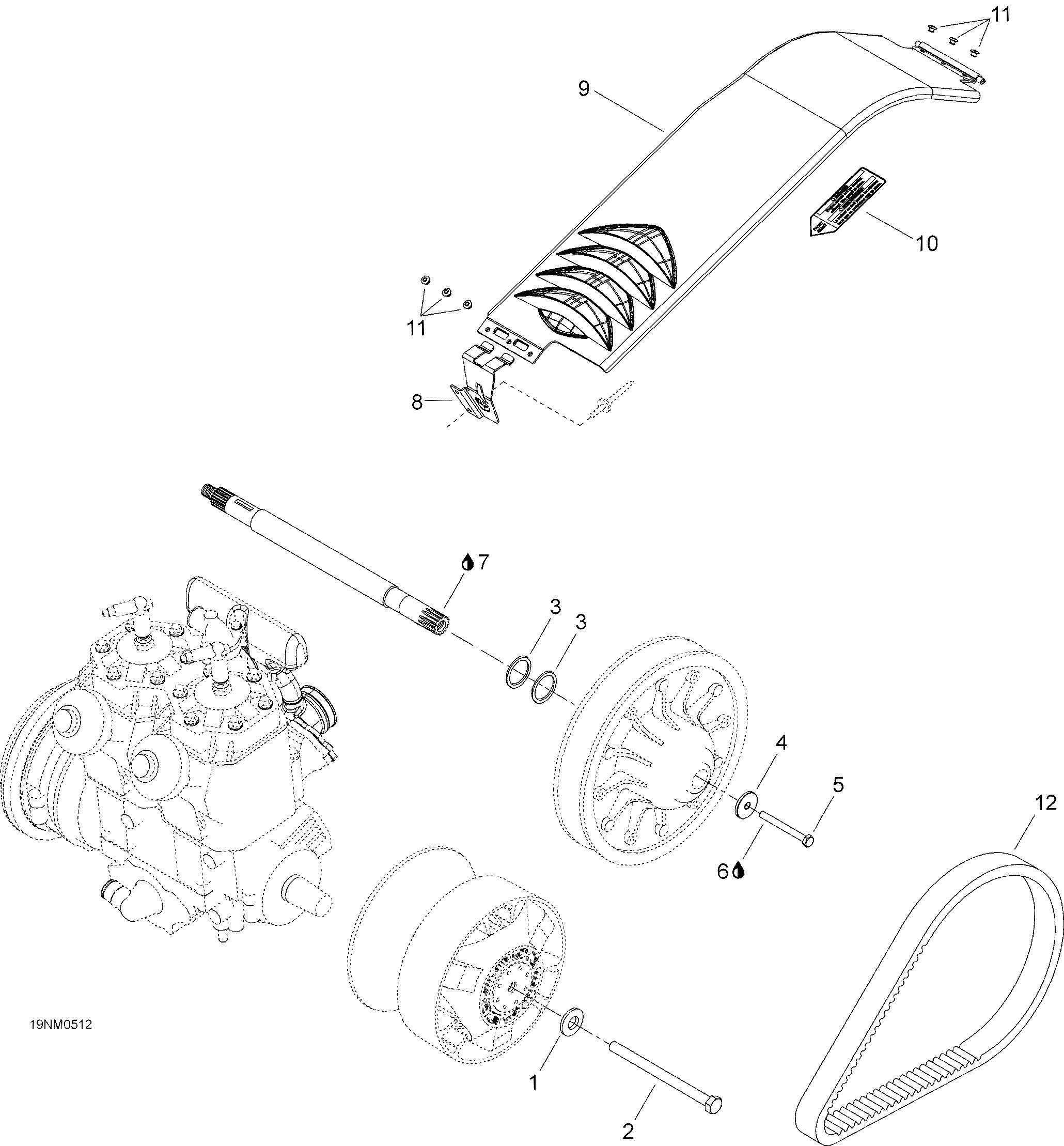

05- Drive System для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
120110 Washer M14Washer M14
-
2417120000 Screw M14Screw M14
-
3417300054 ShimShim
-
4517302322 WasherWasher
-
540089 Hex. screw M8 x 75Hex. screw M8 x 75
-
6293800060 Loctite 243, 10mlLoctite 243, 10ml
-
7293800070 Loctite 767, 8ozLoctite 767, 8oz
-
8417300001 BracketBracket
-
9417300173 Belt quard ass'yBelt quard ass'y
-
10516001190 Warning labelWarning label
-
11390402200 RivetRivet
-
12417300197 Drive beltDrive belt
