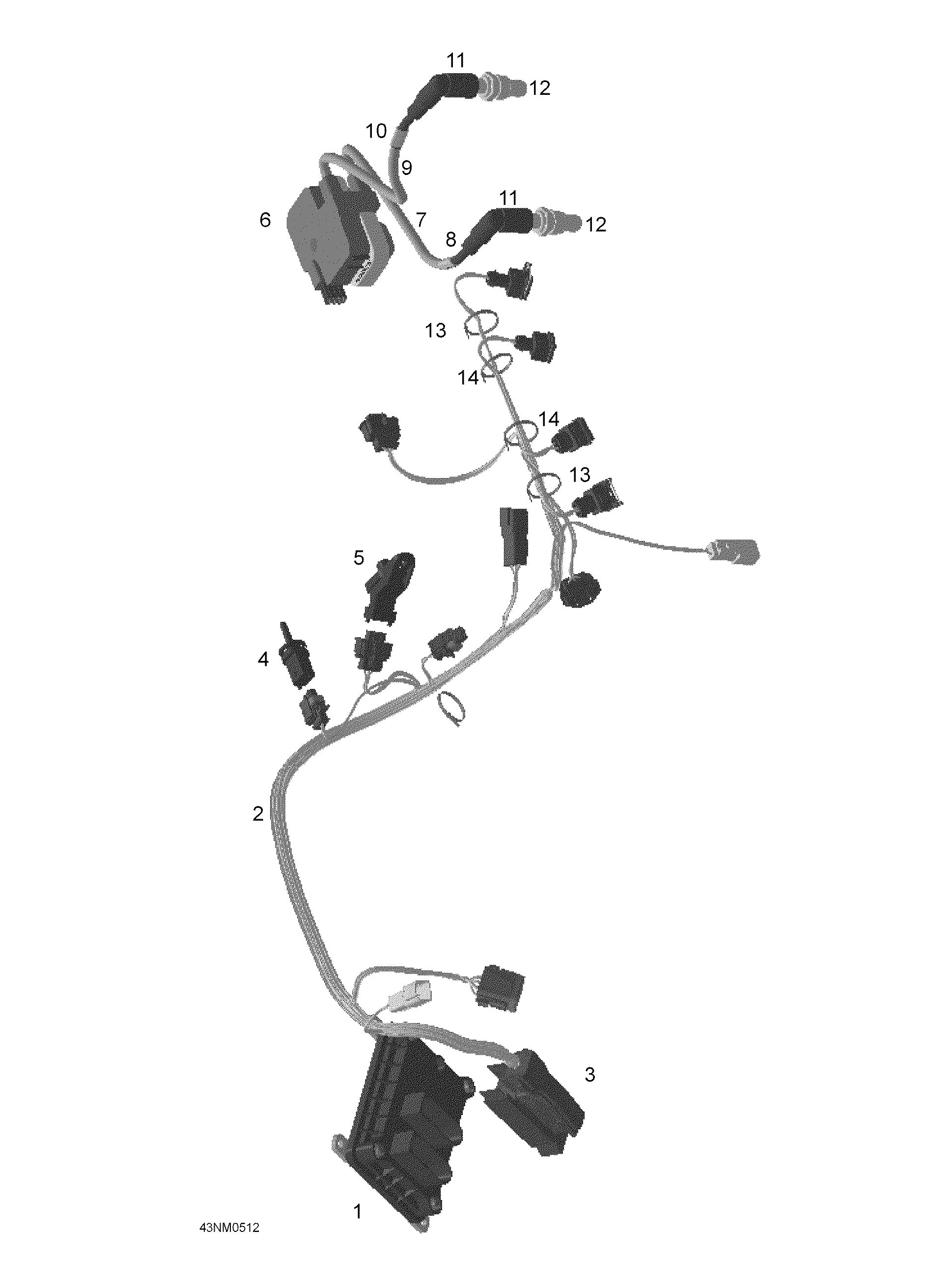

10- Engine Harness для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1420665027 Electronic boxElectronic box
-
2420664317 Wiring harness ass'yWiring harness ass'y
-
3420664450 Connector housingConnector housing
-
4420966970 Temperature sensorTemperature sensor
-
5420274055 Pressure sensorPressure sensor
-
6420266070 Double ignition coilDouble ignition coil
-
7420664300 Spark plug wire 365mmSpark plug wire 365mm
-
8420660632 Marking sleeve MAGMarking sleeve MAG
-
9420664307 Spark plug wire 430mm (PTO)Spark plug wire 430mm (PTO)
-
10420660630 Marking sleeve PTOMarking sleeve PTO
-
11420866708 Spark plug connectorSpark plug connector
-
12512059534 Spark plug BR9ECSSpark plug BR9ECS
-
13420866714 ClampClamp
-
14420866716 ClampClamp
