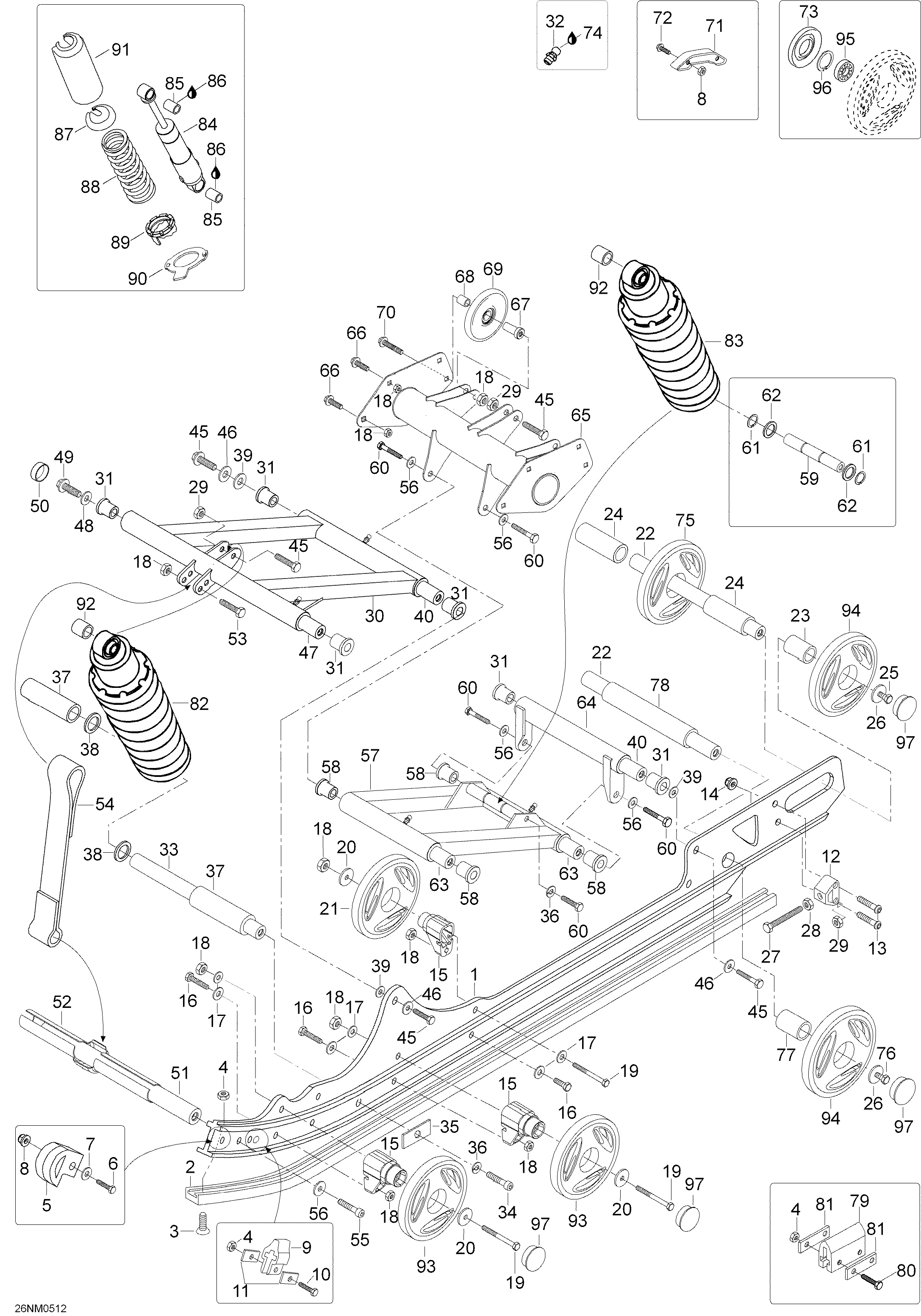

08- Rear Suspension для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1605252294 RunnerRunner
-
25343347 Runner shoeRunner shoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 He. screw M6 x 25He. screw M6 x 25
-
720003 Washer A6,4Washer A6,4
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber StopperRubber Stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 WasherWasher
-
125341633 TensionerTensioner
-
1340392 Socket head screw M8 x 45Socket head screw M8 x 45
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
15605450182 SupportSupport
-
1640037 Hex. screw M8 x 25Hex. screw M8 x 25
-
1720104 Washer, hardened M8Washer, hardened M8
-
1833011 Elastic stop nut M8Elastic stop nut M8
-
1940089 Hex. screw M8 x 75Hex. screw M8 x 75
-
20503183100 Washer, hardened M8Washer, hardened M8
-
21503190798 Wheel black 139mmWheel black 139mm
-
22605348720 Rear shaftRear shaft
-
235441512 SleeveSleeve
-
24605450572 SleeveSleeve
-
2540050 Hex. screw M10 x 35Hex. screw M10 x 35
-
26503183300 Washer, hardened M10Washer, hardened M10
-
2740239 Screw M10 x 100Screw M10 x 100
-
2833004 Nut M10Nut M10
-
2933012 Nut elastic M10Nut elastic M10
-
305145588 Welded front armWelded front arm
-
3131024 CushionCushion
-
3234011 Crease nippleCrease nipple
-
335347633 Shaft, shockShaft, shock
-
3440536 Allen screw M10 x 45Allen screw M10 x 45
-
355446786 Support plateSupport plate
-
3620068 Lock washer D10Lock washer D10
-
375346649 SpacerSpacer
-
3831013 ShimShim
-
3920116 WasherWasher
-
405346900 ShaftShaft
-
4540016 Hex. screw M10 x 45Hex. screw M10 x 45
-
46512056700 Lock washerLock washer
-
475346135 ShaftShaft
-
4820090 Lock washerLock washer
-
4940243 Hex. screw M12 x 60Hex. screw M12 x 60
-
505448025 CapCap
-
515343471 ShaftShaft
-
52605349381 Retainer for stopper strapRetainer for stopper strap
-
5340008 Hex. screw M8 x 45Hex. screw M8 x 45
-
54605449385 Stopper strapStopper strap
-
5540134 Allen screw M10 x 45Allen screw M10 x 45
-
5620105 Washer, hardened M10Washer, hardened M10
-
57605349313 Rear ArmRear Arm
-
5831027 CushionCushion
-
59605451897 ShaftShaft
-
6040014 Hex. screw M10 x 40Hex. screw M10 x 40
-
6131007 CirclipCirclip
-
6231091 ShimShim
-
635346865 ShaftShaft
-
645345535 Rear armRear arm
-
65605249274 Upper armUpper arm
-
6640058 Locking screw M8 x 20Locking screw M8 x 20
-
675447945 SleeveSleeve
-
685447946 SleeveSleeve
-
6946027 Idler Wheel blackIdler Wheel black
-
7040150 Locking screw M8 x 90Locking screw M8 x 90
-
715343191 Slide partSlide part
-
7240064 Hex. screw M6 x 40Hex. screw M6 x 40
-
73572089000 Labyrinth sealLabyrinth seal
-
74293550033 Synt. greaseSynt. grease
-
75503189478 Wheel 165Wheel 165
-
7640335 Hex. screw m10 x 30Hex. screw m10 x 30
-
775444099 SleeveSleeve
-
78605449516 SleeveSleeve
-
79570023100 Rubber damperRubber damper
-
8040002 Hex. screw m6 x 40Hex. screw m6 x 40
-
81548387 WasherWasher
-
82605348956 Shock ass'y, front armShock ass'y, front arm
-
83605348957 Shock ass'y, rear armShock ass'y, rear arm
-
8423142 ShockShock
-
8423143 Shock ass'y, rear armShock ass'y, rear arm
-
8531094 CushionCushion
-
86320006 LoctiteLoctite
-
87503140600 Spring stopperSpring stopper
-
8825058 Spring, front armSpring, front arm
-
89503183700 CamCam
-
90605348748 AdjusterAdjuster
-
915346754 ProtectorProtector
-
925446652 SleeveSleeve
-
93503190796 Idler wheel 139mm (Full Moon)Idler wheel 139mm (Full Moon)
-
94503190856 Idler wheel 165mm (Full Moon)Idler wheel 165mm (Full Moon)
-
95503190795 Ball bearingBall bearing
-
96371901700 CirclipCirclip
-
97570063600 CapCap
