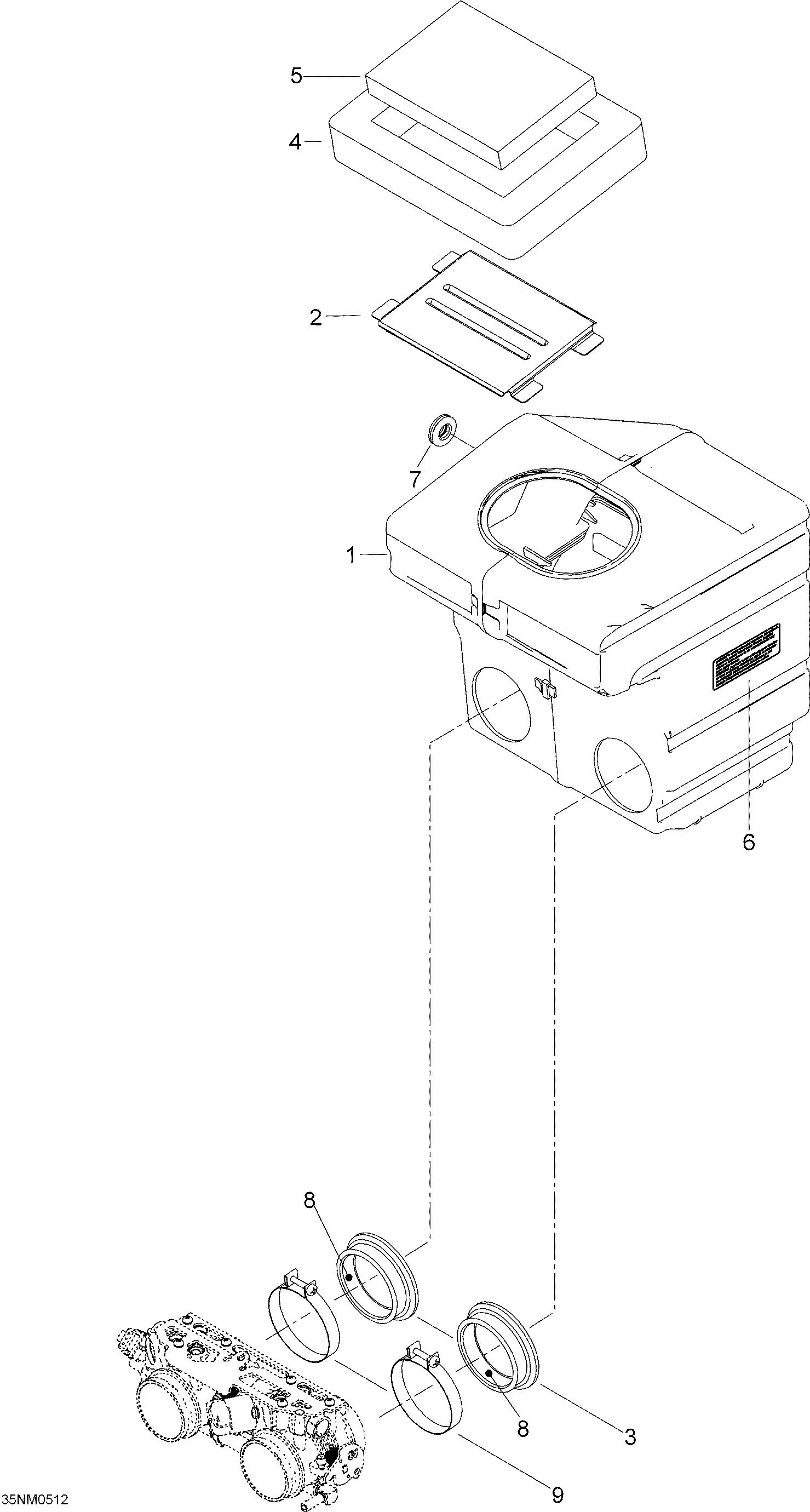

02- Air Intake System для BRP Lynx Sport Touring 600HO SDI - 2005
-
№АртикулНазвание
-
1508000453 Air intake assy. Includes 1 to 7Air intake assy. Includes 1 to 7
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Caution labelCaution label
-
7570065500 GrommetGrommet
-
8413803100 Blizzard oil (12 x 500 ml)Blizzard oil (12 x 500 ml)
-
9508000346 ClampClamp
