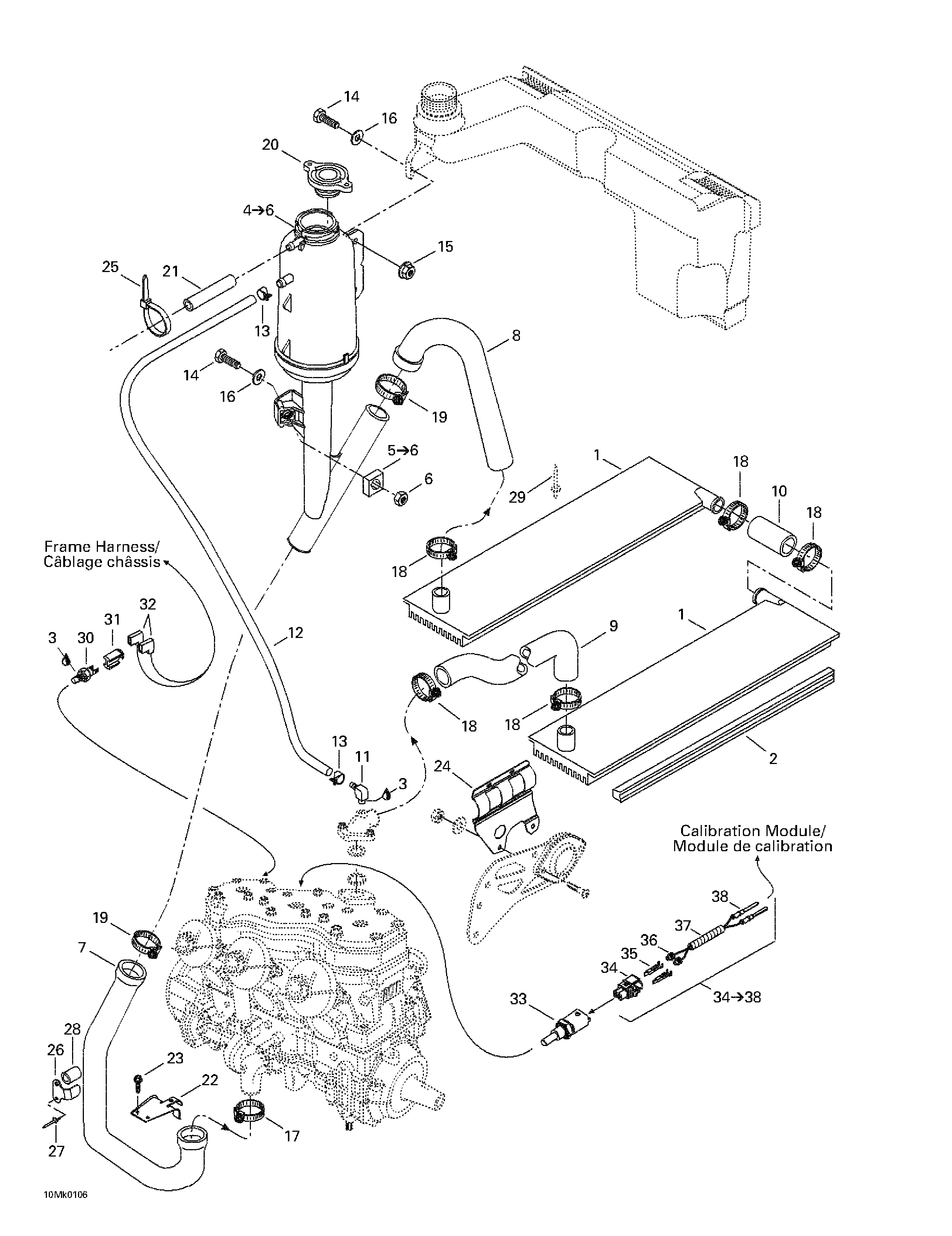

01- Cooling System для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1518322340 R.H. RadiatorR.H. Radiator
-
518322345 L.H. RadiatorL.H. Radiator
-
2518322344 Radiator ProtectorRadiator Protector
-
3293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
4509000079 Coolant Tank Ass'y. Includes 4 - 6.Coolant Tank Ass'y. Includes 4 - 6.
-
5269500252 Housing Nut Ass'y. Includes 5 - 6.Housing Nut Ass'y. Includes 5 - 6.
-
6232061600 Hex. Nut M6Hex. Nut M6
-
7509000026 Engine Inlet HoseEngine Inlet Hose
-
8415047000 Radiator Outlet HoseRadiator Outlet Hose
-
9415047100 Radiator Inlet HoseRadiator Inlet Hose
-
10509000109 Radiator Connecting HoseRadiator Connecting Hose
-
11293700020 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
12509000093 Hose 8 mmHose 8 mm
-
13414655700 Spring ClampSpring Clamp
-
14207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
15233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
16224061121 Flat WasherFlat Washer
-
17293650098 Norma Gear ClampNorma Gear Clamp
-
18408800400 Tridon Gear ClampTridon Gear Clamp
-
19509000045 Oetiker Gear ClampOetiker Gear Clamp
-
20414684700 Pressure CapPressure Cap
-
21415080200 Overflow HoseOverflow Hose
-
22509000037 Hose ProtectorHose Protector
-
23210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
24509000042 Hose ProtectorHose Protector
-
25414115200 Tie RapTie Rap
-
26509000101 BracketBracket
-
27390909100 Rivet AvexRivet Avex
-
28509000113 ProtectorProtector
-
30414728700 Temperature SensorTemperature Sensor
-
31515175297 Connector PlugConnector Plug
-
32409010300 Female TerminalFemale Terminal
-
33278001016 Temperature SensorTemperature Sensor
-
34515175587 Engine/DPM Temperature Harness. Includes 34 - 38.Engine/DPM Temperature Harness. Includes 34 - 38.
-
34515175588 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
35278000998 Female Terminal (18-20 Ga.)Female Terminal (18-20 Ga.)
-
36278000999 Wire SealWire Seal
-
37515175332 TubingTubing
-
38409015100 Female Terminal (16-20 Ga.)Female Terminal (16-20 Ga.)
