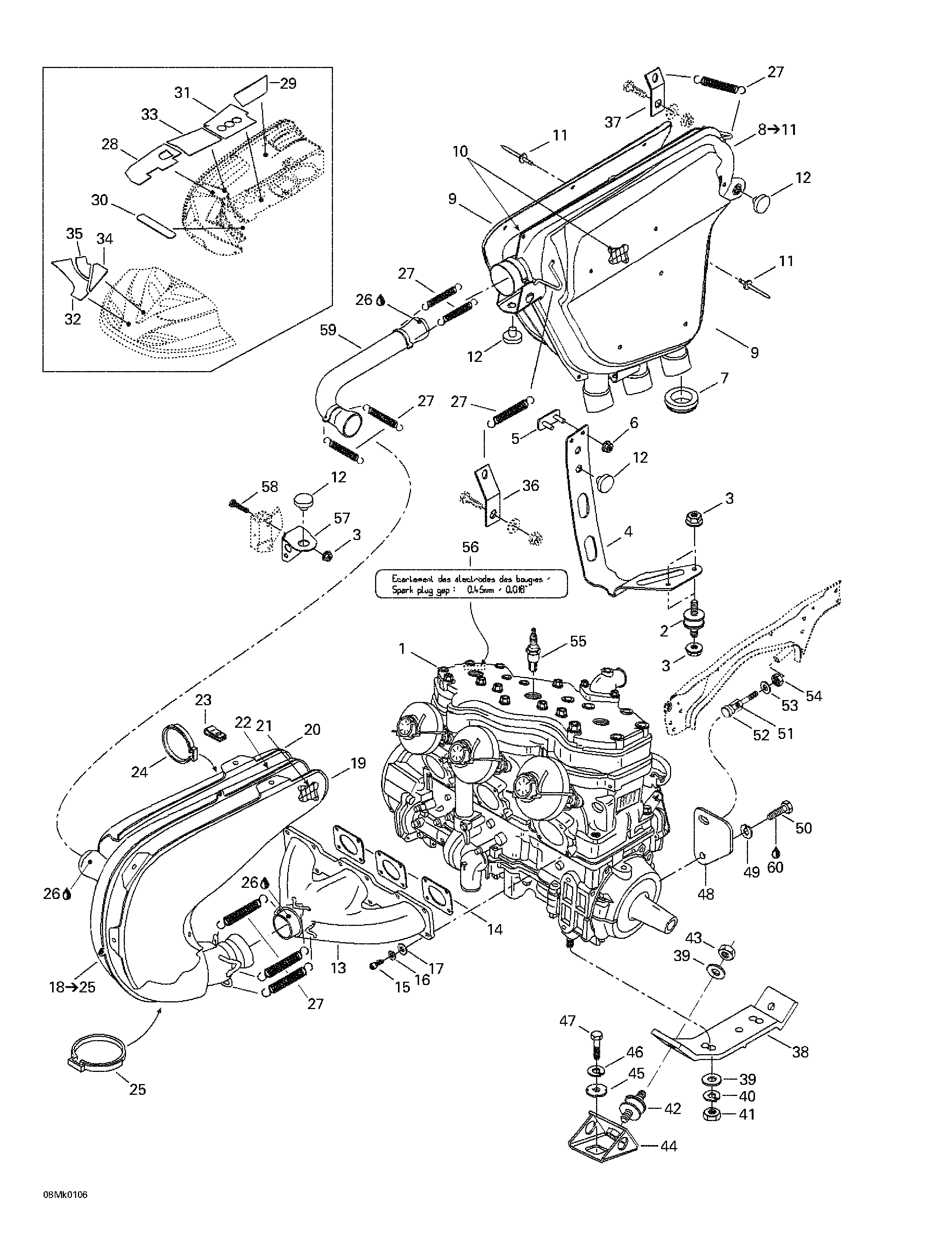

01- Engine Support для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1400800309 Engine >Engine >
-
2514052838 Rubber MountRubber Mount
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4514052887 SupportSupport
-
5517294300 BracketBracket
-
6233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
7570066200 Exhaust GrommetExhaust Grommet
-
8514053052 Muffler Ass'y. Includes 8 - 11.Muffler Ass'y. Includes 8 - 11.
-
9514052900 R.H. Heat ShieldR.H. Heat Shield
-
514047200 L.H. Heat ShieldL.H. Heat Shield
-
10514052901 R.H. InsulatorR.H. Insulator
-
514047300 L.H. InsulatorL.H. Insulator
-
11390910000 Pop Rivet 3/16Pop Rivet 3/16
-
12570048700 Rubber BumperRubber Bumper
-
13420979970 Exhaust SocketExhaust Socket
-
14420850552 GasketGasket
-
15205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
16234161471 Lock Washer 6 mmLock Washer 6 mm
-
17234061410 Flat Washer 6 mmFlat Washer 6 mm
-
18514053070 Tuned Pipe Ass'y. Includes 18 - 25.Tuned Pipe Ass'y. Includes 18 - 25.
-
19514097807 Upper ShellUpper Shell
-
20514097806 Lower ShellLower Shell
-
21514097808 Upper InsulatorUpper Insulator
-
22514097809 Lower InsulatorLower Insulator
-
23514046503 CleatCleat
-
24514052962 Norma Gear ClampNorma Gear Clamp
-
25514052902 Norma Gear ClampNorma Gear Clamp
-
26413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
27415107100 SpringSpring
-
28514098000 Reflective SheetReflective Sheet
-
29415083800 R.H. Reflective SheetR.H. Reflective Sheet
-
30415111900 Reflective SheetReflective Sheet
-
31415115000 Reflective SheetReflective Sheet
-
32415112300 R.H. Reflective SheetR.H. Reflective Sheet
-
415112400 L.H. Reflective SheetL.H. Reflective Sheet
-
33415084000 Reflective SheetReflective Sheet
-
34415112500 R.H. Reflective SheetR.H. Reflective Sheet
-
415112600 L.H. Reflective SheetL.H. Reflective Sheet
-
35415114800 R.H. Reflective SheetR.H. Reflective Sheet
-
415114900 L.H. Reflective SheetL.H. Reflective Sheet
-
36514052968 Spring BracketSpring Bracket
-
37514051000 Spring BracketSpring Bracket
-
38512059089 Engine Support (Mag)Engine Support (Mag)
-
512059090 Engine Support (PTO)Engine Support (PTO)
-
39234001410 Washer 10 mmWasher 10 mm
-
40234100602 Lock Washer 10 mmLock Washer 10 mm
-
41232006414 Nut M10Nut M10
-
42570127700 Rubber MountRubber Mount
-
43233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
44512050900 Engine SupportEngine Support
-
45512056700 Lock WasherLock Washer
-
46234100602 Lock Washer 10 mmLock Washer 10 mm
-
47207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
48512056000 Stopper PlateStopper Plate
-
49234181401 Lock Washer 8 mmLock Washer 8 mm
-
50207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
51512056900 Stopper ScrewStopper Screw
-
52512059055 StopperStopper
-
53512059058 WasherWasher
-
54232120414 Nut M12Nut M12
-
55278000609 Spark Plug BR8-ESSpark Plug BR8-ES
-
56516000986 Spark Plug DecalSpark Plug Decal
-
57514049900 Pipe Su Deg.pportPipe Su Deg.pport
-
58207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
59514052801 Tail PipeTail Pipe
-
60293800005 Loctite 271, 10 mlLoctite 271, 10 ml
