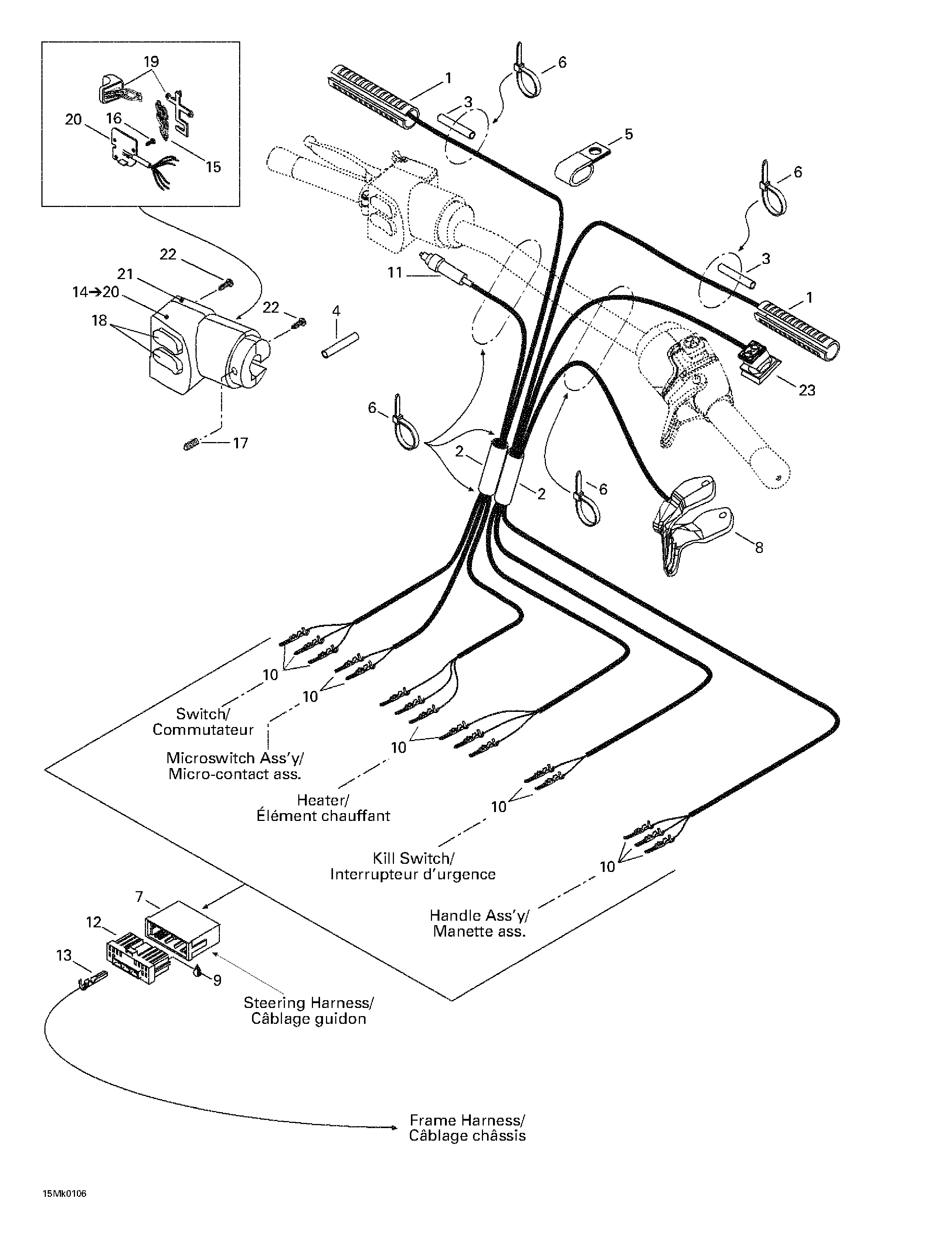

07- Steering System для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1515175501 HeaterHeater
-
2515175506 TubingTubing
-
3515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
4515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
5515175507 ClipClip
-
6414115200 Tie Rap 180 mmTie Rap 180 mm
-
7515175502 Male Terminal Housing (18 Circuits)Male Terminal Housing (18 Circuits)
-
8512059165 Heat Throttle Handle (26 mm)Heat Throttle Handle (26 mm)
-
9293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
10515175232 Male TerminalMale Terminal
-
11507032285 Microswitch Ass'yMicroswitch Ass'y
-
12515175505 Femelle Terminal Housing (18 Circuits)Femelle Terminal Housing (18 Circuits)
-
13515175231 Femelle TerminalFemelle Terminal
-
14515175503 Front Housing Ass'y. Includes 14 - 20.Front Housing Ass'y. Includes 14 - 20.
-
15415047909 Silicon PadSilicon Pad
-
16415047912 Screw M3Screw M3
-
17414440800 Set Screw M8 x 10Set Screw M8 x 10
-
18415047917 Switch KitSwitch Kit
-
19415047918 Lever KitLever Kit
-
20515175535 Printed Circuit Ass'yPrinted Circuit Ass'y
-
21415047903 Rear Housing Ass'yRear Housing Ass'y
-
22415047913 ScrewScrew
-
23512059210 Kill SwitchKill Switch
