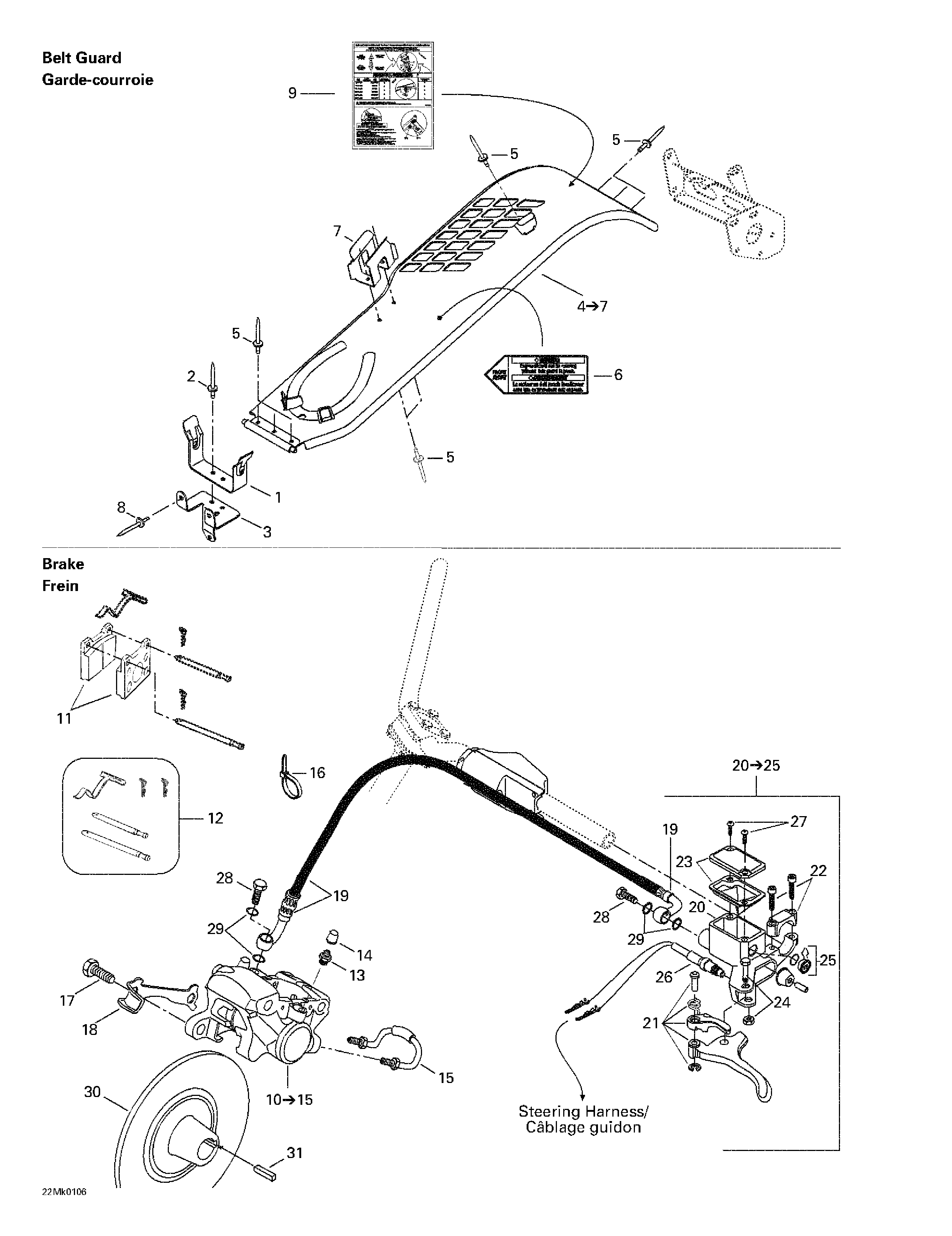

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1518202100 Pulley Guard BracketPulley Guard Bracket
-
2390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3518317000 Pulley Guard SupportPulley Guard Support
-
4417300050 Belt Guard Ass'y. Includes 4 - 7.Belt Guard Ass'y. Includes 4 - 7.
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6516000132 Warning LabelWarning Label
-
7517281905 BracketBracket
-
8390409600 Pop Rivet 3/16'' (Deep Black) (B-160)Pop Rivet 3/16'' (Deep Black) (B-160)
-
9516000953 Decal (Suspension Adjustment)Decal (Suspension Adjustment)
-
10414920000 Caliper. Includes 10 - 15.Caliper. Includes 10 - 15.
-
11414990000 Brake Lining KitBrake Lining Kit
-
12414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
13414989800 Screw-BleederScrew-Bleeder
-
14414989700 BootBoot
-
15414989900 TubeTube
-
16293750008 Tie Rap 350 mmTie Rap 350 mm
-
17207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
18507031900 Locking TabLocking Tab
-
19507032272 HoseHose
-
20507032294 Master Cylinder. Includes 20 - 25.Master Cylinder. Includes 20 - 25.
-
21415075300 Lever Ass'yLever Ass'y
-
22415029800 Clamp Ass'yClamp Ass'y
-
23415029900 CoverCover
-
24415030000 Pin Ass'yPin Ass'y
-
25414990600 WindowWindow
-
26507032285 Microswitch Ass'yMicroswitch Ass'y
-
27216141260 ScrewScrew
-
28414920500 Banjo BoltBanjo Bolt
-
29414920600 WasherWasher
-
30507031300 Brake DiskBrake Disk
-
31507021300 KeyKey
