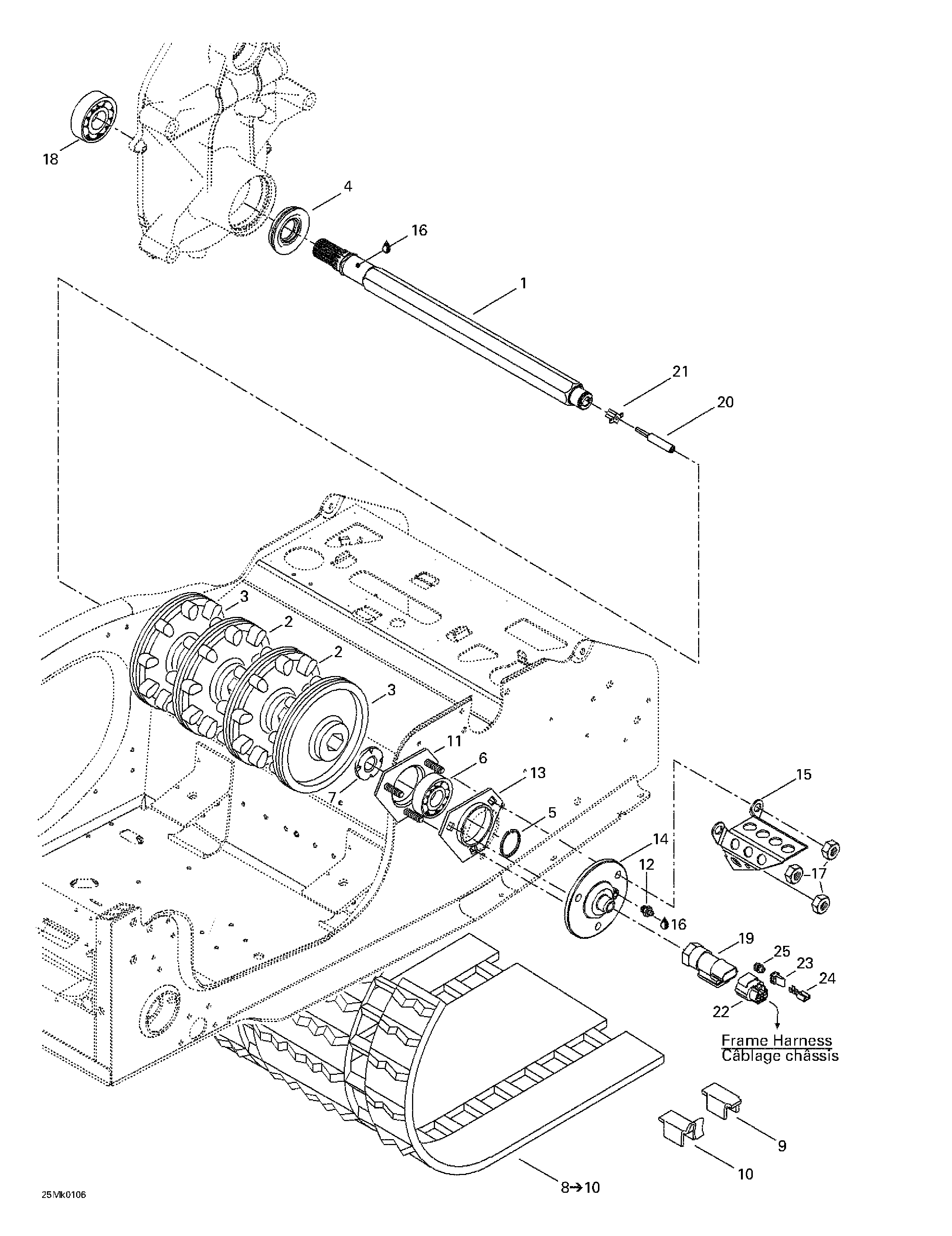

05- Drive Axle And Track для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1501026500 Drive AxleDrive Axle
-
2504151900 9-Tooth Sprocket9-Tooth Sprocket
-
3504151901 9-Tooth Half Sprocket9-Tooth Half Sprocket
-
4504151925 Oil SealOil Seal
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8504151804 Track. Includes 8 - 10.Track. Includes 8 - 10.
-
9504151828 CleatCleat
-
10500003400 Guide CleatGuide Cleat
-
11504151860 Bearing HousingBearing Housing
-
12408200700 Grease FittingGrease Fitting
-
13501025000 FlangeFlange
-
14504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
15517290100 Cable ProtectorCable Protector
-
16219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
17232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
18504152010 Ball Bearing 6206Ball Bearing 6206
-
19415049800 Speed SensorSpeed Sensor
-
20572098200 KeyKey
-
21572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
22409004900 Connector (3 Circuits)Connector (3 Circuits)
-
23409005300 Locking Plate (3 Circuits)Locking Plate (3 Circuits)
-
24409004800 Female TerminalFemale Terminal
-
25409005400 Wire SealWire Seal
