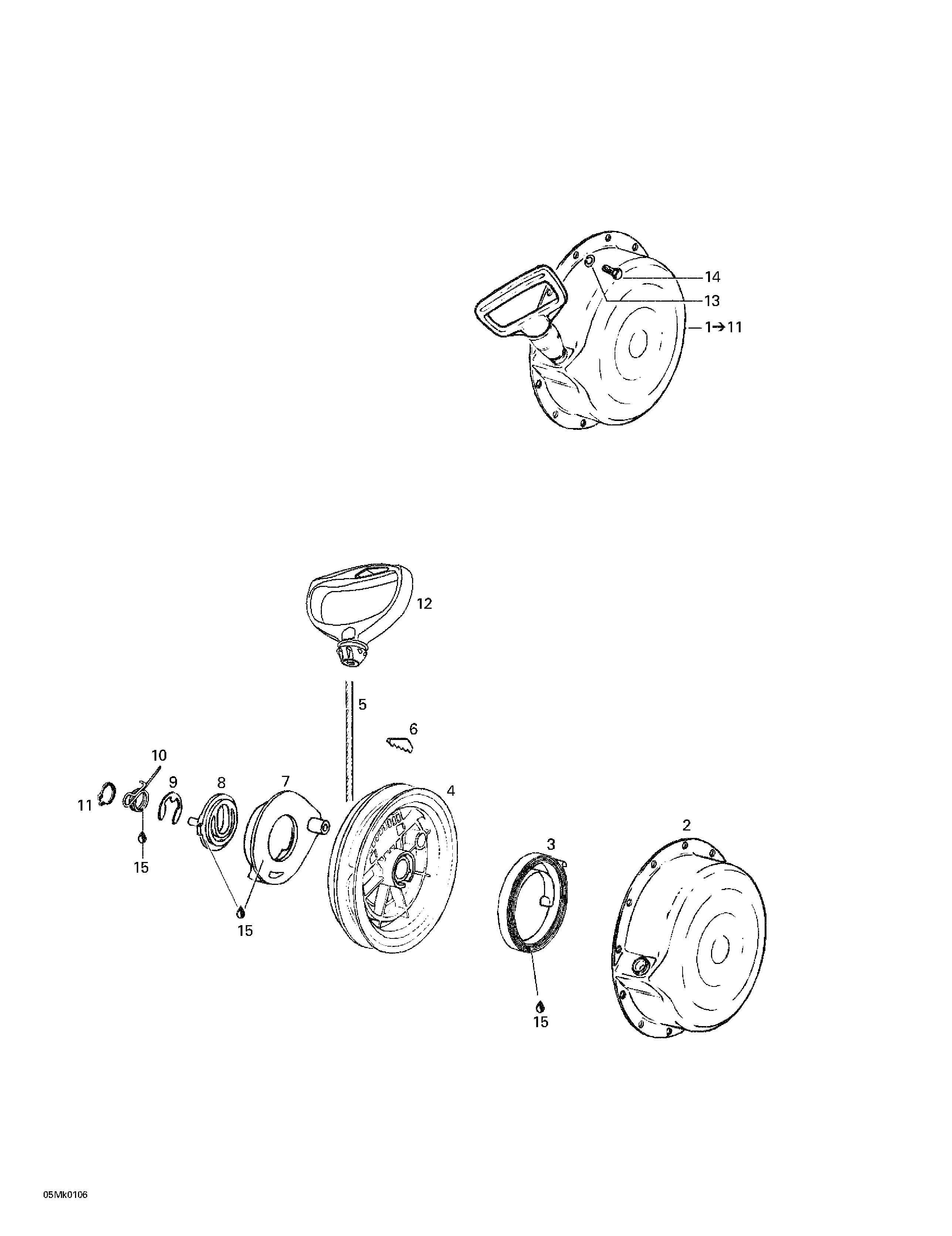

04- Rewind Starter для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1420887453 Rewind Starter Ass'y. Includes 1 - 11.Rewind Starter Ass'y. Includes 1 - 11.
-
3420939115 Rewind SpringRewind Spring
-
4420852283 Rope SheaveRope Sheave
-
5412500100 Starter Rope 2200 mmStarter Rope 2200 mm
-
6420852070 Key ClampKey Clamp
-
7420852296 PawlPawl
-
8420852302 Pawl LockPawl Lock
-
9420845300 CirclipCirclip
-
10420938986 Pawl SpringPawl Spring
-
11420945770 Lock RingLock Ring
-
12572084400 Starter GripStarter Grip
-
13420945751 Lock Washer 6 mmLock Washer 6 mm
-
14207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
15420899763 Molykote PG54Molykote PG54
