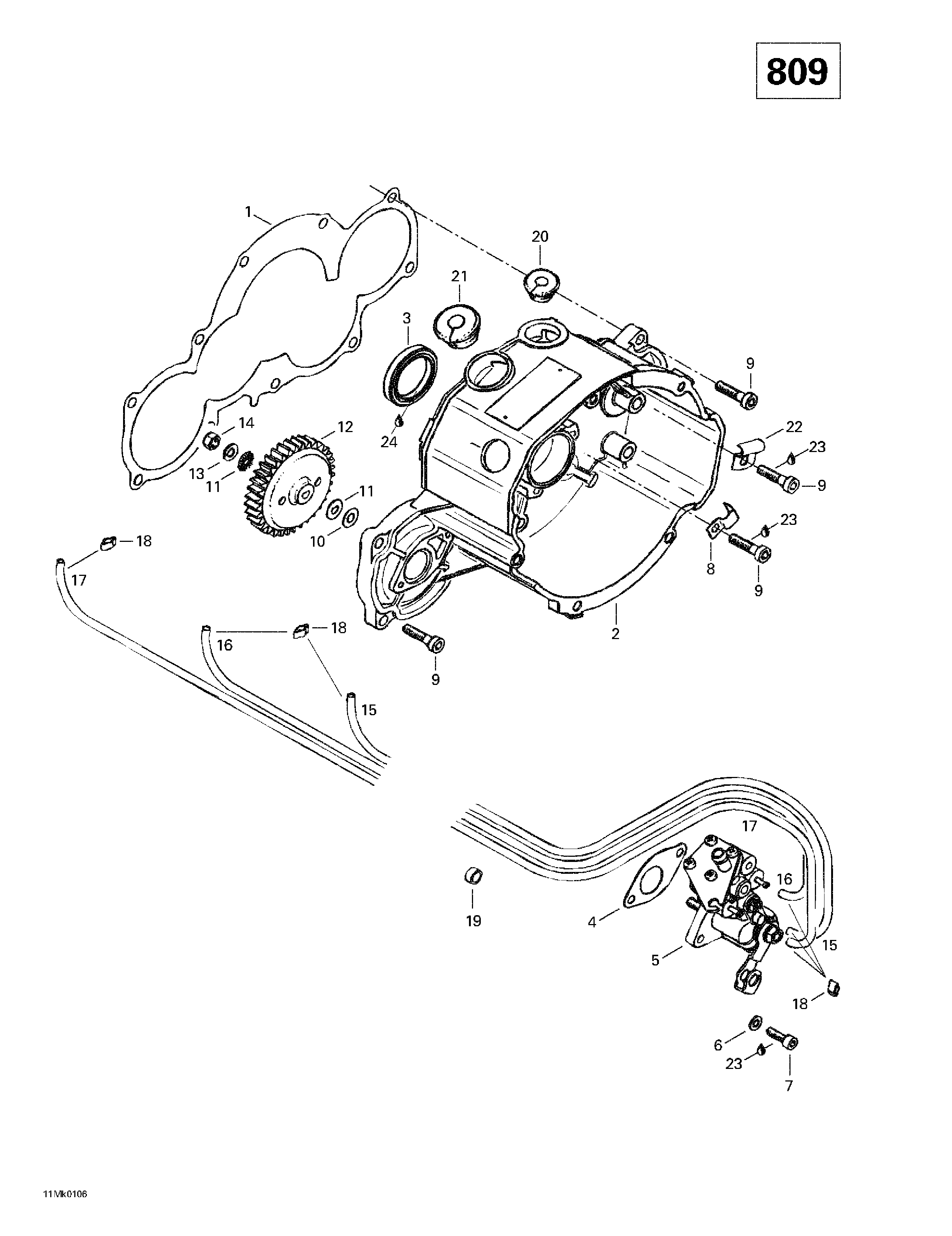

03- Ignition Housing Oil Pump для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1420950284 Gasket 0.8 mmGasket 0.8 mm
-
2420811510 Ignition HousingIgnition Housing
-
3420931290 Oil SealOil Seal
-
4420950460 GasketGasket
-
5420887935 Oil Pump Ass'yOil Pump Ass'y
-
6420945750 Lock WasherLock Washer
-
7420640071 Allen Screw M5 x 16Allen Screw M5 x 16
-
8420953387 ClampClamp
-
9420941691 Allen Screw M6 x 25Allen Screw M6 x 25
-
10420244215 Flat WasherFlat Washer
-
11420227150 WasherWasher
-
12420834270 Oil Pump Gear (36 Tooth)Oil Pump Gear (36 Tooth)
-
13420945751 Lock Washer 6 mmLock Washer 6 mm
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15414413800 Oil LineOil Line
-
16414413800 Oil LineOil Line
-
17414413800 Oil LineOil Line
-
18420256408 ClampClamp
-
19420960700 Rubber RingRubber Ring
-
20420860967 Cable GrommetCable Grommet
-
21420860965 Cable GrommetCable Grommet
-
22420953382 ClampClamp
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24413707000 Molykote 111Molykote 111
