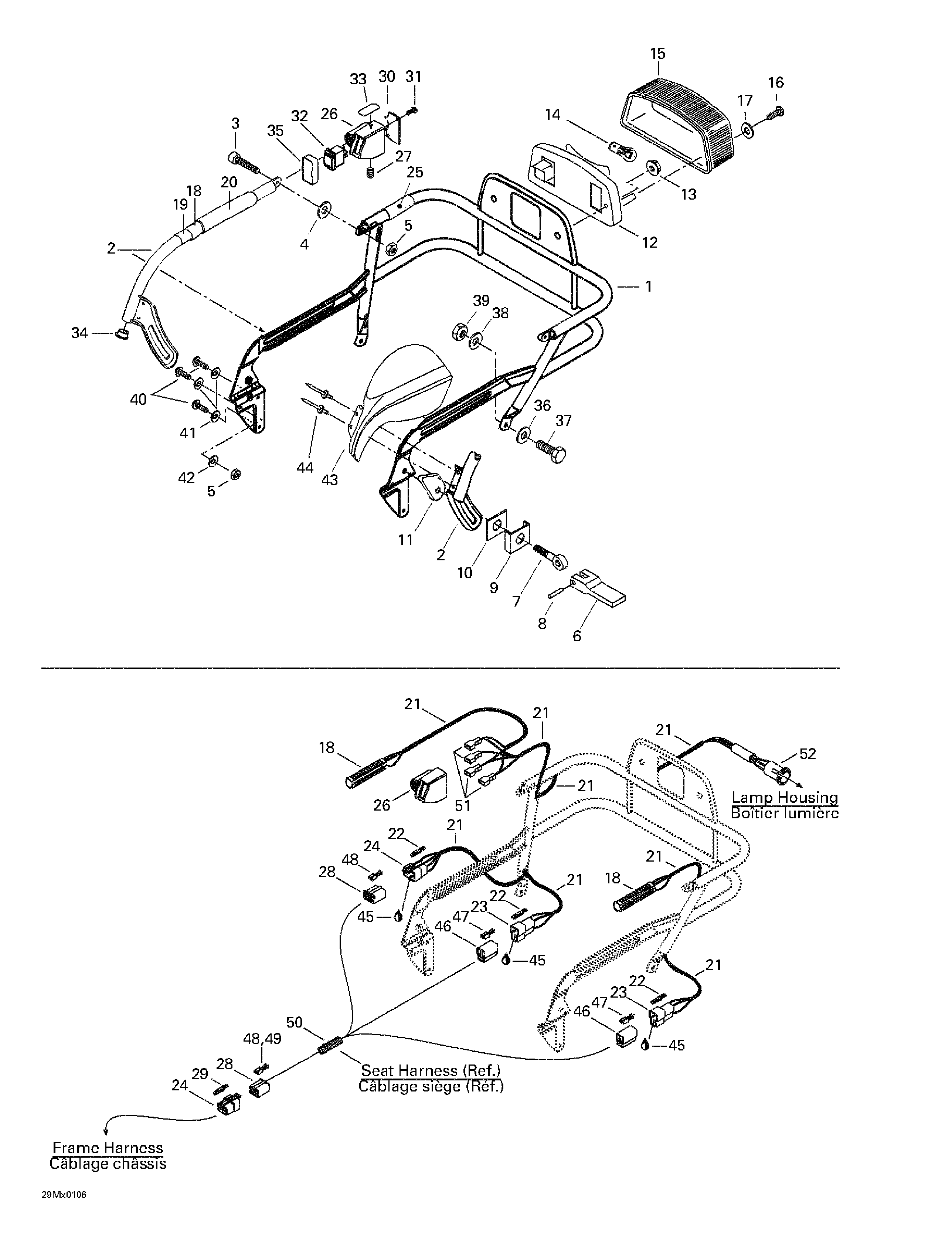

09- Luggage Rack, Hitch для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1511000124 Rack Ass'yRack Ass'y
-
2511000012 R.H. ArmR.H. Arm
-
517300900 L.H. ArmL.H. Arm
-
3205061644 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
4234062100 Flat Washer 6 mmFlat Washer 6 mm
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6572038200 Lock LeverLock Lever
-
7517257600 Eye BoltEye Bolt
-
8414821400 PinPin
-
9517290000 GuideGuide
-
10570063800 Outer SpacerOuter Spacer
-
11572088900 Spacer BlockSpacer Block
-
12515175397 Lamp HousingLamp Housing
-
13233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
14410504000 BulbBulb
-
15414513700 LensLens
-
16209632540 Phillips ScrewPhillips Screw
-
17414516400 WasherWasher
-
18515175573 Heater L.HHeater L.H
-
515175424 Heater R.HHeater R.H
-
19414988700 Reflective SheetReflective Sheet
-
20415050200 L.H. Grip (370 mm)L.H. Grip (370 mm)
-
415050300 R.H. Grip (250 mm)R.H. Grip (250 mm)
-
21515175332 Vinyl TubingVinyl Tubing
-
22409210000 Male TerminalMale Terminal
-
23409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
24409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
25415050400 Grip (Short) (60 mm)Grip (Short) (60 mm)
-
26572089200 Switch HousingSwitch Housing
-
27206580890 Screw Set M8 x 8Screw Set M8 x 8
-
28409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
29409210000 Male TerminalMale Terminal
-
30572089300 PlatePlate
-
31732601255 ScrewScrew
-
32511000001 Rocker SwitchRocker Switch
-
33418001800 Heat Grip DecalHeat Grip Decal
-
34572110800 CapCap
-
35511000002 Switch ProtectorSwitch Protector
-
36234081410 Flat Washer 8 mmFlat Washer 8 mm
-
37207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
38503183200 Washer (Yellow)Washer (Yellow)
-
39232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
40210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
41234161601 Lock Washer 6 mmLock Washer 6 mm
-
42234061410 Flat Washer 6 mmFlat Washer 6 mm
-
43572089400 R.H. ProtectorR.H. Protector
-
572089500 L.H. ProtectorL.H. Protector
-
44390906800 Pop RivetPop Rivet
-
45293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
46409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
47561503100 Female TerminalFemale Terminal
-
48561503200 Female TerminalFemale Terminal
-
49515175313 Female TerminalFemale Terminal
-
50415079900 TubingTubing
-
51409010700 Female TerminalFemale Terminal
-
52515175539 SocketSocket
