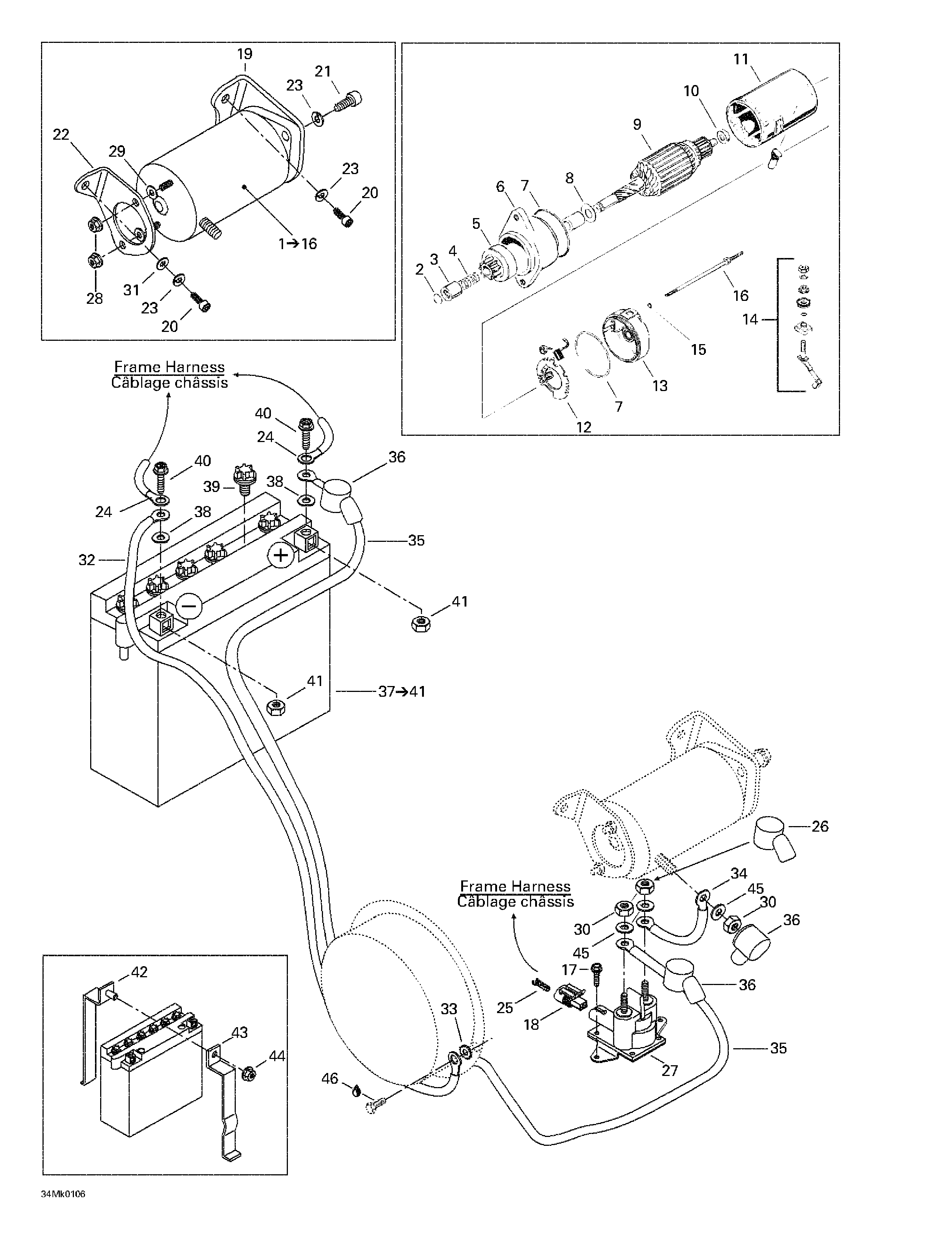

04- Electric Starter And Battery для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1515175305 Electric Starter. Includes 1 - 16.Electric Starter. Includes 1 - 16.
-
2410207700 CirclipCirclip
-
3410207800 Stop BushingStop Bushing
-
4410213101 SpringSpring
-
5410208000 Starter ClutchStarter Clutch
-
7278000695 O-RingO-Ring
-
8278000054 WasherWasher
-
10278000056 Thrust WasherThrust Washer
-
12410213105 Brush HolderBrush Holder
-
13278000251 HousingHousing
-
14410212100 Brush KitBrush Kit
-
15278000060 O-RingO-Ring
-
16278000170 Retainer StudRetainer Stud
-
17210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
18278001113 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
19512059209 Starter Bracket (PTO)Starter Bracket (PTO)
-
20205082044 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
21205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
22512059208 Starter Bracket (MAG)Starter Bracket (MAG)
-
23234181401 Lock Washer 8 mmLock Washer 8 mm
-
24409012600 Open BarrelOpen Barrel
-
25278001114 Female TerminalFemale Terminal
-
26278000020 Protector CapProtector Cap
-
27278001376 Starter RelayStarter Relay
-
28233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
29391301700 Flat WasherFlat Washer
-
30232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
31234081410 Flat Washer 8 mmFlat Washer 8 mm
-
32515175425 Ground WireGround Wire
-
33394001900 Lock WasherLock Washer
-
34515175101 Battery WireBattery Wire
-
35515166400 Battery WireBattery Wire
-
36570064200 Protection CapProtection Cap
-
37410301100 Battery. Includes 37 - 41.Battery. Includes 37 - 41.
-
38391302100 WasherWasher
-
39410300800 Battery CapBattery Cap
-
40207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
41232061414 Nut M6Nut M6
-
42517290400 Steel Strip (Weld)Steel Strip (Weld)
-
43517290402 Steel StripSteel Strip
-
44233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
45234061410 Flat Washer 6 mmFlat Washer 6 mm
-
46293800005 Loctite 271, 10 mlLoctite 271, 10 ml
