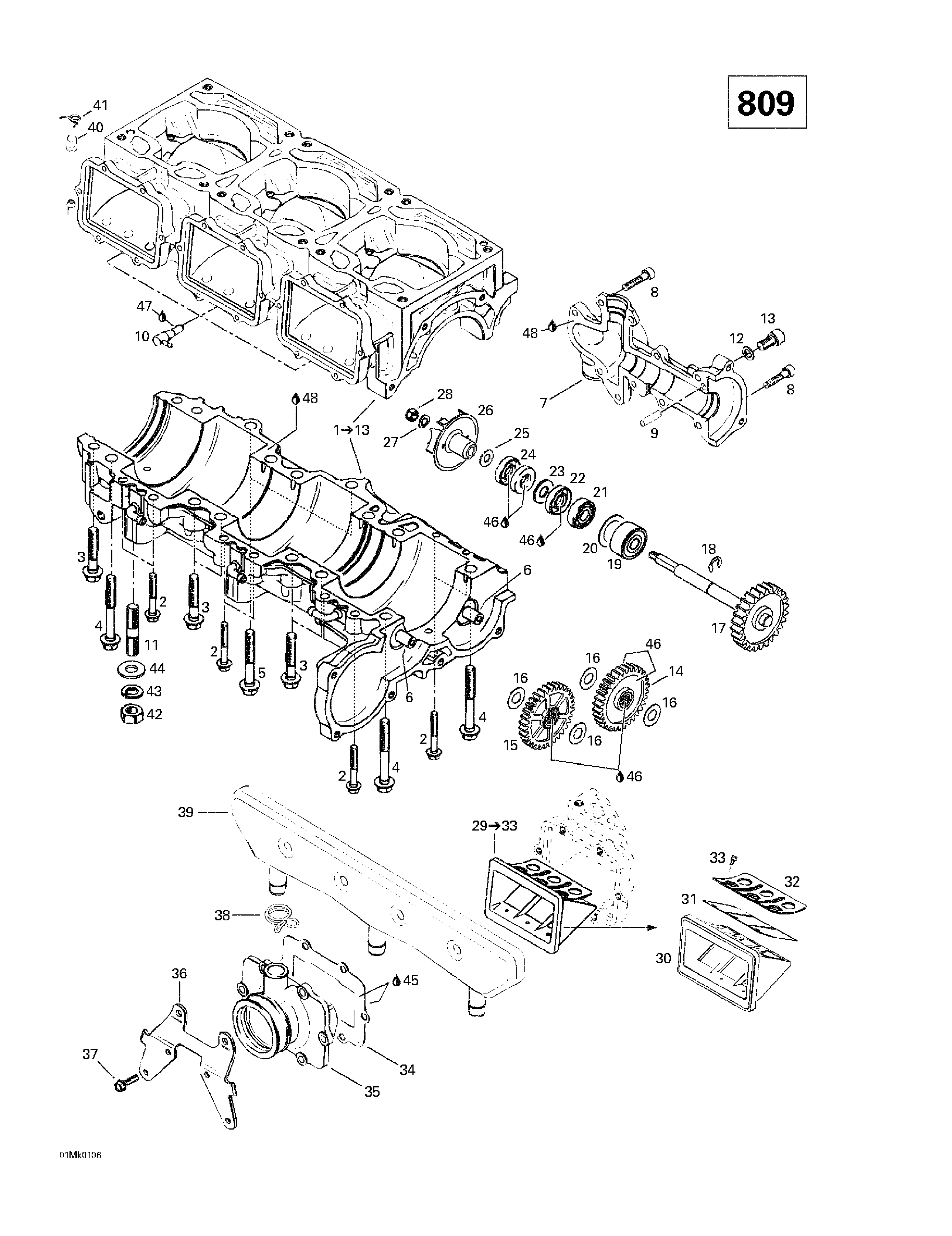

01- Crankcase, Reed Valve, Water Pump (809) для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1420888731 Crankcase Water Pump Cover Ass'y. Includes 1 - 13.Crankcase Water Pump Cover Ass'y. Includes 1 - 13.
-
2420941451 Hex. Collar Screw M6 x 40Hex. Collar Screw M6 x 40
-
3420940636 Hex. Collar Screw M8 x 45Hex. Collar Screw M8 x 45
-
4420640951 Hex. Collar Screw M8 x 68.5Hex. Collar Screw M8 x 68.5
-
5420240326 Hex. Collar Screw M8 x 53.5Hex. Collar Screw M8 x 53.5
-
6420929935 Intermediate Gear ShaftIntermediate Gear Shaft
-
8205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
9420429230 Dowel PinDowel Pin
-
10420956510 Check ValveCheck Valve
-
11420940400 Stud M10 x 25Stud M10 x 25
-
12420950141 Sealing RingSealing Ring
-
13205081644 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
14420834395 Sprocket (32 Teeth)Sprocket (32 Teeth)
-
15420834267 Sprocket (32 Teeth)Sprocket (32 Teeth)
-
16420927952 Thrust WasherThrust Washer
-
17420837431 Waterpump - Shaft/Gear Ass'yWaterpump - Shaft/Gear Ass'y
-
18420845390 Retaining RingRetaining Ring
-
19420832490 Ball BearingBall Bearing
-
20420944466 Shim 1 mmShim 1 mm
-
21420232100 Ball BearingBall Bearing
-
22420230195 Oil SealOil Seal
-
23420927410 Washer 10,3Washer 10,3
-
24420950400 Oil SealOil Seal
-
25420227155 WasherWasher
-
26420922445 Impeller WaterImpeller Water
-
27420845020 Spring WasherSpring Washer
-
28420842042 Locking Nut M6Locking Nut M6
-
29420924519 Reed Valve Ass'y. Includes 29 - 33.Reed Valve Ass'y. Includes 29 - 33.
-
31420924532 Reed PedalReed Pedal
-
32420924539 Reed Pedal StopReed Pedal Stop
-
33420941215 Oval-Head Screw M3 x 5Oval-Head Screw M3 x 5
-
34420950292 Gasket 1mmGasket 1mm
-
35420867848 Intake SocketIntake Socket
-
36420851351 CarrierCarrier
-
37420841555 Taptite Screw M5 x 20Taptite Screw M5 x 20
-
38420851360 ClampClamp
-
39420867797 Intake ResonatorIntake Resonator
-
40420960770 CapCap
-
41420938190 ClampClamp
-
42232006414 Nut M10Nut M10
-
43234100602 Lock Washer 10 mmLock Washer 10 mm
-
44234001410 Flat Washer 10 mmFlat Washer 10 mm
-
45413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
46413707000 Molykote 111Molykote 111
-
47413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
48420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
