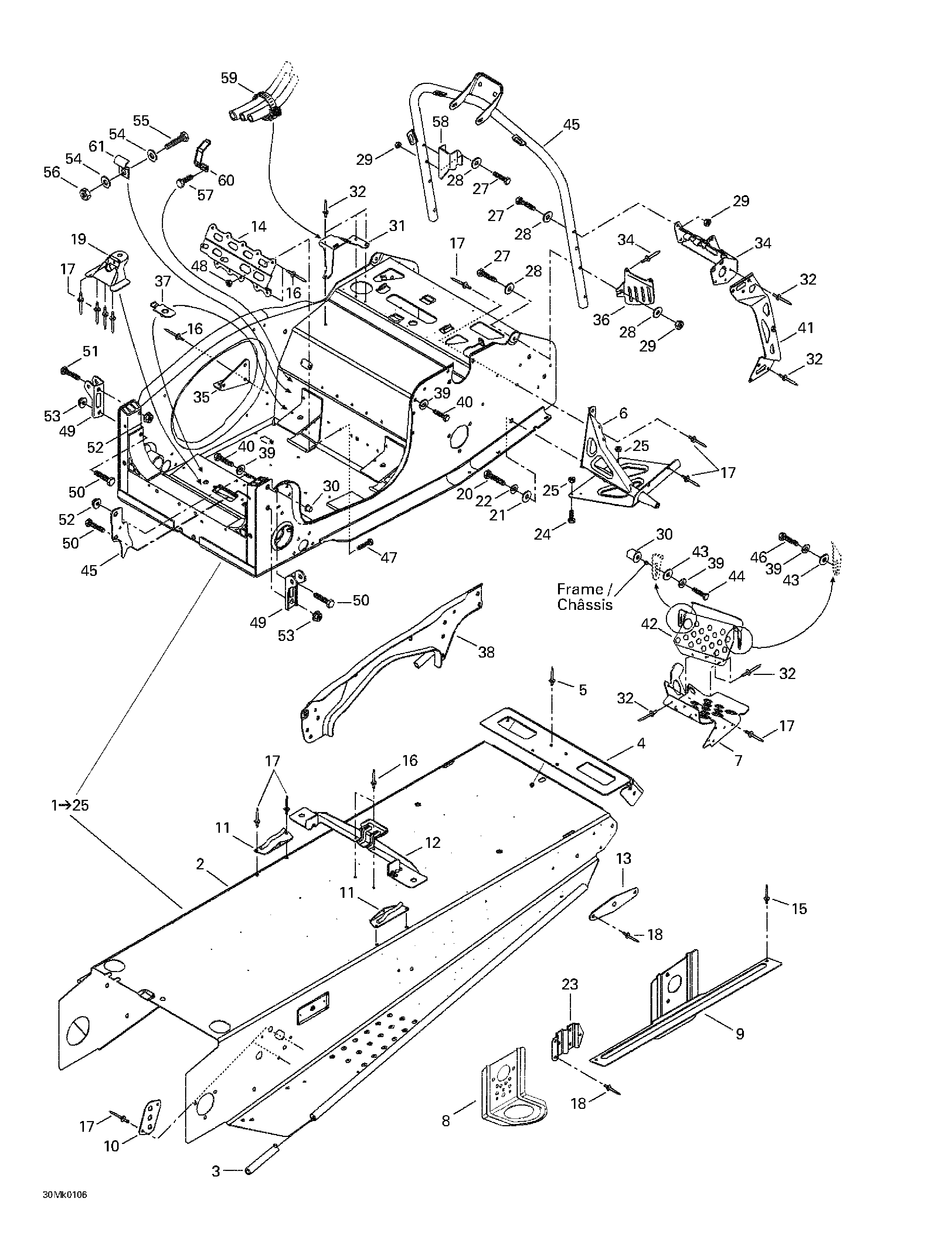

09- Frame And Accessories для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1518322495 Frame Ass'y. Includes 1 - 25. (Radiator Included)Frame Ass'y. Includes 1 - 25. (Radiator Included)
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518321302 Cap-EndCap-End
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518317522 R.H. Footrest SupportR.H. Footrest Support
-
518317523 L.H. Footrest SupportL.H. Footrest Support
-
7518321433 R.H. FootrestR.H. Footrest
-
518321434 L.H. FootrestL.H. Footrest
-
8518321495 Front BracketFront Bracket
-
9518322134 R.H. Rear BracketR.H. Rear Bracket
-
518322138 L.H. Rear BracketL.H. Rear Bracket
-
10518201321 Reinforcement PlateReinforcement Plate
-
11517266900 R.H. Tank BracketR.H. Tank Bracket
-
517267000 L.H. Tank BracketL.H. Tank Bracket
-
12518317506 Seat BracketSeat Bracket
-
13518316767 Rear ReinforcementRear Reinforcement
-
14518322282 Steering SupportSteering Support
-
15309909200 Rivet AvexRivet Avex
-
16390909100 Rivet AvexRivet Avex
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
19518317509 Pivot Arm SupportPivot Arm Support
-
20207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
21234001410 Flat Washer 10 mmFlat Washer 10 mm
-
22234101402 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
23518317562 Protector GuideProtector Guide
-
24207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
25233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
26518321511 Handle Steering SupportHandle Steering Support
-
27207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
28224061121 Flat WasherFlat Washer
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30415107300 InsertInsert
-
31518317556 GuideGuide
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33390403600 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518321572 R.H. Upper BracketR.H. Upper Bracket
-
518317543 L.H. Upper BracketL.H. Upper Bracket
-
35518317553 Muffler SupportMuffler Support
-
36518317572 Belt ProtectorBelt Protector
-
37518317507 PlatePlate
-
38518317515 StrapStrap
-
39234161471 Lock Washer M6Lock Washer M6
-
40207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
41518317520 R.H. Vertical BracketR.H. Vertical Bracket
-
518317521 L.H. Vertical BracketL.H. Vertical Bracket
-
42518317531 R.H. Toe-HoldR.H. Toe-Hold
-
518317532 L.H. Toe-HoldL.H. Toe-Hold
-
43224061201 Flat WasherFlat Washer
-
44207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
45518321421 Heat ShieldHeat Shield
-
46207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
47207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
48232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
49518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
50207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
51207085544 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
52233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
53232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
54391301600 WasherWasher
-
55207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
56232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
57210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
58515175149 Cable SupportCable Support
-
59408801900 Gear ClampGear Clamp
-
60515175422 ClipClip
