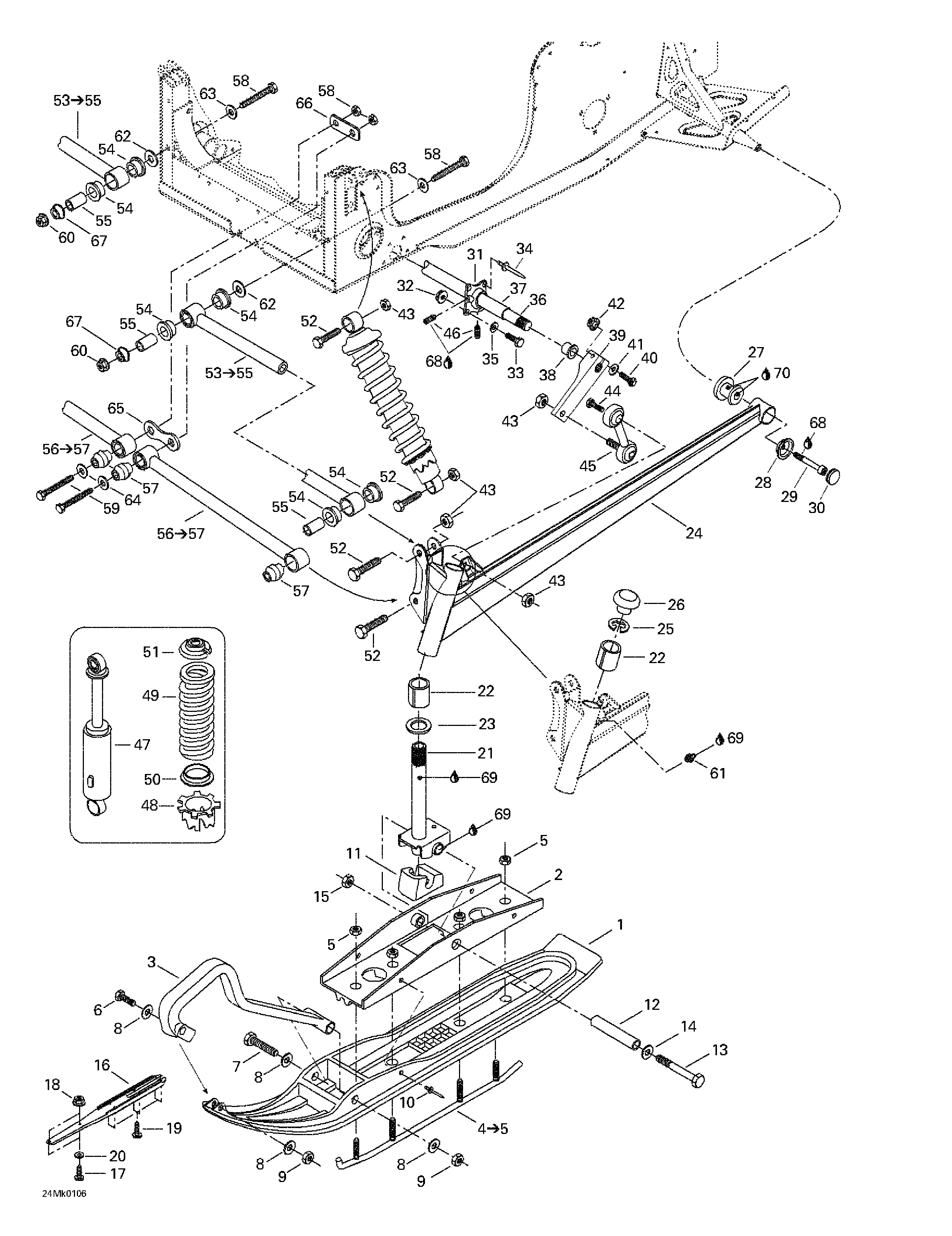

07- Front Suspension And Ski для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1505070189 Flexible Ski Liner (Black)Flexible Ski Liner (Black)
-
505070190 Flexible Ski Liner (Europe) (Black)Flexible Ski Liner (Europe) (Black)
-
2505070055 Bridge Ass'yBridge Ass'y
-
3572101000 Plastic HandlePlastic Handle
-
4860501900 Carbide Runner Kit. Includes 4 - 5.Carbide Runner Kit. Includes 4 - 5.
-
5233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
6207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
7230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10390911100 Pop Rivet 1/4''Pop Rivet 1/4''
-
11506151233 Ski StopperSki Stopper
-
12506133300 SpacerSpacer
-
13250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
14732900049 WasherWasher
-
15233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
16505070232 Proactive ControlProactive Control
-
17250000015 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
18233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
19250000016 Screw PhillipsScrew Phillips
-
20234061410 Flat Washer 6 mmFlat Washer 6 mm
-
21506151234 Ski LegSki Leg
-
22505070003 CushionCushion
-
23505070004 WasherWasher
-
24505070654 R.H. Swing Arm (Full Moon)R.H. Swing Arm (Full Moon)
-
505070655 L.H. Swing Arm (Full Moon)L.H. Swing Arm (Full Moon)
-
25371910400 CirclipCirclip
-
26572091300 CapCap
-
27570062700 DamperDamper
-
28506128500 CupCup
-
29205002544 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
30572045900 CapCap
-
31505070276 R.H. HousingR.H. Housing
-
506138900 L.H. HousingL.H. Housing
-
32233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
34390404900 Pop Rivet 1/4''Pop Rivet 1/4''
-
35234061410 Flat Washer 6 mmFlat Washer 6 mm
-
36506134300 StabilizatorStabilizator
-
37506136200 Main TubeMain Tube
-
38415039500 CushionCushion
-
39506134402 Stabilizer LeverStabilizer Lever
-
40207084544 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
41234081410 Flat Washer 8 mmFlat Washer 8 mm
-
42233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
43233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
44207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
45415101400 Double Ball JointDouble Ball Joint
-
46414440800 Set Screw M8 x 10Set Screw M8 x 10
-
47505070643 Front ShockFront Shock
-
48503169000 CamCam
-
49505070684 Spring (Full Moon)Spring (Full Moon)
-
50503165100 Spring GuideSpring Guide
-
51503140600 Spring StopperSpring Stopper
-
52207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
53505070579 Arm Ass'y. Includes 53 - 55.Arm Ass'y. Includes 53 - 55.
-
54506149100 CushionCushion
-
55505070143 BushingBushing
-
56505070140 Lower Arm Ass'y. Includes 56 - 57.Lower Arm Ass'y. Includes 56 - 57.
-
57505070025 BushingBushing
-
58230001044 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
59207008544 Hex. Screw M10 x 85Hex. Screw M10 x 85
-
60233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
61408200700 Grease FittingGrease Fitting
-
62506148100 WasherWasher
-
63399910100 Flat WasherFlat Washer
-
64503175800 WasherWasher
-
65506147900 PlatePlate
-
66506148300 PlatePlate
-
67506148400 SpacerSpacer
-
68293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
69219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
70293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
