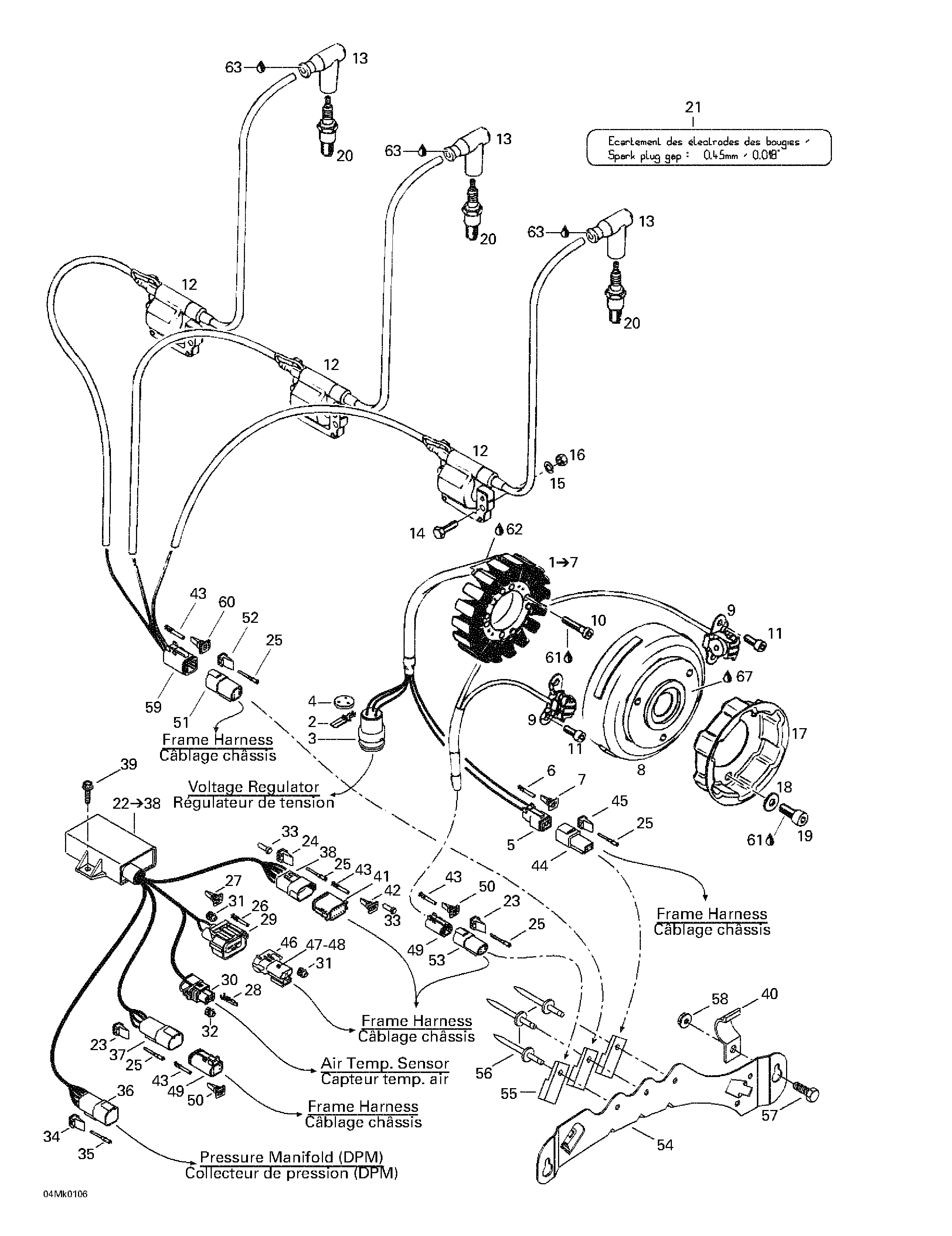

03- Magneto 12V 360W для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1410922907 Stator Plate Ass'y. Includes 1 - 7.Stator Plate Ass'y. Includes 1 - 7.
-
2409011900 Female TerminalFemale Terminal
-
3409208200 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
4409208500 SealSeal
-
5515175245 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
6409015100 Female TerminalFemale Terminal
-
7515175246 Female Lock (4 circuits)Female Lock (4 circuits)
-
8410922908 FlywheelFlywheel
-
9410922909 Pick Up Ass'y(Includes 43,49,50)Pick Up Ass'y(Includes 43,49,50)
-
10420840886 Cylinder Screw M6 x 30Cylinder Screw M6 x 30
-
11420840391 Taptite Screw M6 x 14Taptite Screw M6 x 14
-
12420966705 Ignition Coil. Includes 12 - 13.Ignition Coil. Includes 12 - 13.
-
13278000237 Spark Plug CapSpark Plug Cap
-
14207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
15420945751 Lock Washer 6 mmLock Washer 6 mm
-
16232061414 Nut M6Nut M6
-
17420852418 Starting PulleyStarting Pulley
-
18420827405 WasherWasher
-
19420841520 Socket Head Screw M8 x 12Socket Head Screw M8 x 12
-
20278000609 Spark Plug (NGK BR8-ES)Spark Plug (NGK BR8-ES)
-
21516000986 Spark Plug DecalSpark Plug Decal
-
22512059288 Calibration Module. Includes 22 - 38.Calibration Module. Includes 22 - 38.
-
23278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
25278000631 Male TerminalMale Terminal
-
26409011700 Female TerminalFemale Terminal
-
28278000998 Female TerminalFemale Terminal
-
29409206500 Female Connector Housing (2 Circuits)Female Connector Housing (2 Circuits)
-
30278001005 Male Connector Housing (2 Circuits)Male Connector Housing (2 Circuits)
-
31409208300 Wire SealWire Seal
-
32278000999 Wire SealWire Seal
-
33293000052 PlugPlug
-
34409014600 Male Lock (6 Circuits)Male Lock (6 Circuits)
-
35409014800 Male TerminalMale Terminal
-
36409015200 Male Connector Housing (6 Circuits)Male Connector Housing (6 Circuits)
-
39243141640 Screw M4.8 x 16Screw M4.8 x 16
-
40517274400 BracketBracket
-
43278000632 Female TerminalFemale Terminal
-
44409206900 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
45409207500 Male LockMale Lock
-
48409010900 Male TerminalMale Terminal
-
49278000739 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
50278000738 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
51278000137 Male Connector Housing (6 Circuits)Male Connector Housing (6 Circuits)
-
52278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
53278000635 Male Connector Housing (4 Circuits)Male Connector Housing (4 Circuits)
-
54515175148 Housing SupportHousing Support
-
55270000141 ClipClip
-
57207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
58233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
59278000736 Female Connector Housing (6 Circuits)Female Connector Housing (6 Circuits)
-
60278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
61293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
62296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
63293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
