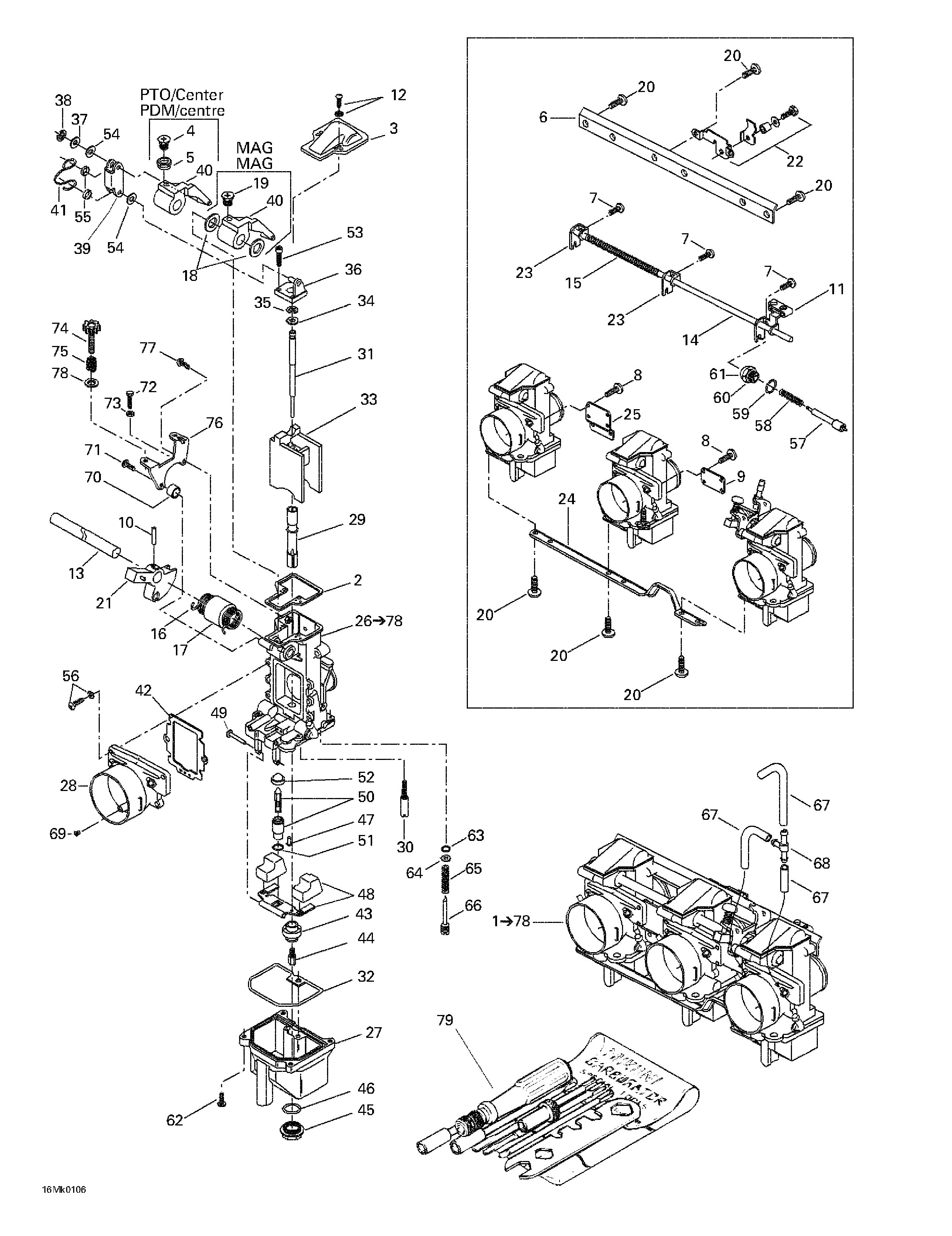

02- Carburetors для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1512059435 Carburetor Kit TM38-C321. Includes 1 - 78.Carburetor Kit TM38-C321. Includes 1 - 78.
-
2404143600 GasketGasket
-
3404142700 CoverCover
-
4404139000 Screw (PTO/Center)Screw (PTO/Center)
-
5404143500 Ring (PTO/Center)Ring (PTO/Center)
-
6404142300 PlatePlate
-
7404140500 ScrewScrew
-
8404136100 ScrewScrew
-
9404142400 PlatePlate
-
10404140100 PinPin
-
11404143900 LeverLever
-
12404139100 ScrewScrew
-
13404137100 Throttle ShaftThrottle Shaft
-
14404137200 Choke ShaftChoke Shaft
-
15404158000 SpringSpring
-
16404143200 SpringSpring
-
17404141700 RingRing
-
18404144400 Packing (MAG)Packing (MAG)
-
19404138900 Screw (MAG)Screw (MAG)
-
20404138800 ScrewScrew
-
21404142100 Lever Ass'yLever Ass'y
-
22404155100 Bracket Ass'yBracket Ass'y
-
23404140600 Starter LeverStarter Lever
-
24512059436 PlatePlate
-
25404161966 PlatePlate
-
27404161841 Float Body Ass'y (PTO/MAG)Float Body Ass'y (PTO/MAG)
-
404161965 Float Body Ass'y (Center)Float Body Ass'y (Center)
-
28404161970 Funnel (PTO)Funnel (PTO)
-
404161969 Funnel (Center)Funnel (Center)
-
404161968 Funnel (MAG)Funnel (MAG)
-
29404161882 Needle JetNeedle Jet
-
30404161887 Pilot Jet 15Pilot Jet 15
-
31404161881 Needle J8-8BCY01-42Needle J8-8BCY01-42
-
32404137000 O'RingO'Ring
-
33404152900 Piston Valve 2.0Piston Valve 2.0
-
34404137600 PackingPacking
-
35404113300 CirclipCirclip
-
36404142000 Plate Ass'yPlate Ass'y
-
37404139500 WasherWasher
-
38404138300 > Ring> Ring
-
39404144000 PlatePlate
-
40404143000 Throttle Lever (PTO/Center)Throttle Lever (PTO/Center)
-
404143100 Throttle Lever (MAG)Throttle Lever (MAG)
-
41404144100 ClipClip
-
42404143700 GasketGasket
-
43404142900 RingRing
-
44404106500 Main Jet 450 (PTO)Main Jet 450 (PTO)
-
404106700 Main Jet 470 (Center/MAG)Main Jet 470 (Center/MAG)
-
45404107400 Drain Screw PlugDrain Screw Plug
-
46404107300 O'RingO'Ring
-
47404141000 ScrewScrew
-
48404149800 FloatFloat
-
49404103300 Lever PinLever Pin
-
50404149500 Needle Seat 1.5Needle Seat 1.5
-
51270500127 O'RingO'Ring
-
52404141200 FilterFilter
-
53404161920 ScrewScrew
-
54404138100 PackingPacking
-
55404144200 RingRing
-
56404145100 ScrewScrew
-
57404161842 Plunger Ass'yPlunger Ass'y
-
58404141100 SpringSpring
-
59404140200 O'RingO'Ring
-
60404136900 Holder GuideHolder Guide
-
61404140000 CapCap
-
62404138700 ScrewScrew
-
63404139900 O'RingO'Ring
-
64707200018 WasherWasher
-
65707200017 SpringSpring
-
66707200043 Adjuster ScrewAdjuster Screw
-
67404161888 HoseHose
-
68270500347 T-FittingT-Fitting
-
69404131700 Plug ScrewPlug Screw
-
70404141800 Ring (MAG)Ring (MAG)
-
71404138800 Screw (MAG)Screw (MAG)
-
72404138000 Bolt (MAG)Bolt (MAG)
-
73404139600 Nut (MAG)Nut (MAG)
-
74404137500 Adjustment Screw (MAG)Adjustment Screw (MAG)
-
75404138200 Spring (MAG)Spring (MAG)
-
76404142600 Bracket (MAG)Bracket (MAG)
-
77404135900 Screw (MAG)Screw (MAG)
-
78404161885 Washer (MAG)Washer (MAG)
-
79404112000 Tool KitTool Kit
