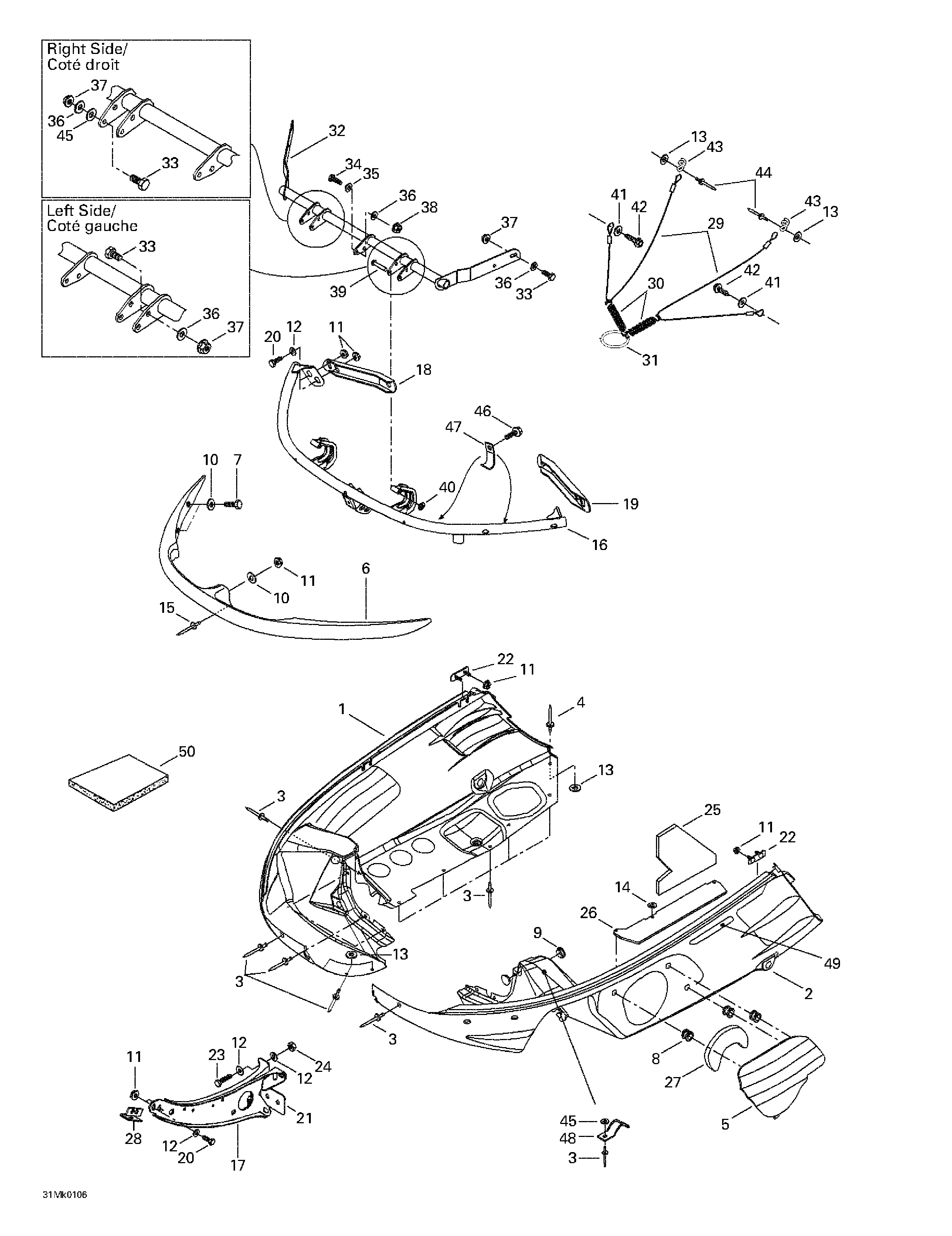

09- Bottom Pan для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1572087000 R.H. Bottom Pan (Deep Black) (1786,1787)R.H. Bottom Pan (Deep Black) (1786,1787)
-
572087002 R.H. Bottom Pan (Velvet Blue) (1788)R.H. Bottom Pan (Velvet Blue) (1788)
-
2572087100 L.H. Bottom Pan (Deep Black) (1786,1787)L.H. Bottom Pan (Deep Black) (1786,1787)
-
572087102 L.H. Bottom Pan (Velvet Blue) (1788)L.H. Bottom Pan (Velvet Blue) (1788)
-
3390409600 Rivet (Black) (1786,1787)Rivet (Black) (1786,1787)
-
390910600 Rivet (Velvet Blue) (1788)Rivet (Velvet Blue) (1788)
-
4390402300 Pop RivetPop Rivet
-
5572098500 Bottom Pan Door (Black) (1786,1787)Bottom Pan Door (Black) (1786,1787)
-
572098502 Bottom Pan Door (Velvet Blue) (1788)Bottom Pan Door (Velvet Blue) (1788)
-
6572087200 Front BumperFront Bumper
-
7207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
8414036300 GrommetGrommet
-
9414916600 PlugPlug
-
10224061201 Flat WasherFlat Washer
-
11233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12224061121 Flat washerFlat washer
-
13517124300 WasherWasher
-
14517225900 Flat WasherFlat Washer
-
15390906800 Pop RivetPop Rivet
-
16502006523 Hinge BracketHinge Bracket
-
17502006549 Center SupportCenter Support
-
18517288400 R.H. SupportR.H. Support
-
19517288500 L.H. SupportL.H. Support
-
20207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
21517288600 PlatePlate
-
22517294300 BracketBracket
-
23207066044 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25415111300 Bottom Pan FoamBottom Pan Foam
-
26517299500 ProtectorProtector
-
27415112800 Door FoamDoor Foam
-
28517302009 Front SupportFront Support
-
29415093900 Retainer CableRetainer Cable
-
30414185600 SpringSpring
-
31415058300 RingRing
-
32517302187 HingeHinge
-
33207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
34207141644 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
35391301000 Flat WasherFlat Washer
-
36420845270 WasherWasher
-
37233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
38233241414 Elastic Flanged Stop Nut M4Elastic Flanged Stop Nut M4
-
39390004800 RivetRivet
-
40389804300 Push NutPush Nut
-
41391301600 Flat WasherFlat Washer
-
42365901100 Hex. Tapping ScrewHex. Tapping Screw
-
43517262800 BracketBracket
-
44390406500 Pop RivetPop Rivet
-
45517124300 WasherWasher
-
46365901100 Hex. Tapping ScrewHex. Tapping Screw
-
47515175160 Cable BracketCable Bracket
-
48517274400 BracketBracket
-
49415064400 R.H. ReflectorR.H. Reflector
-
415064401 L.H. ReflectorL.H. Reflector
-
50414632400 Foam-Acoustic (74 x 34 x 1/2 Thk)Foam-Acoustic (74 x 34 x 1/2 Thk)
-
414631900 Foam-Acoustic (74 x 34 x 1 Thk)Foam-Acoustic (74 x 34 x 1 Thk)
