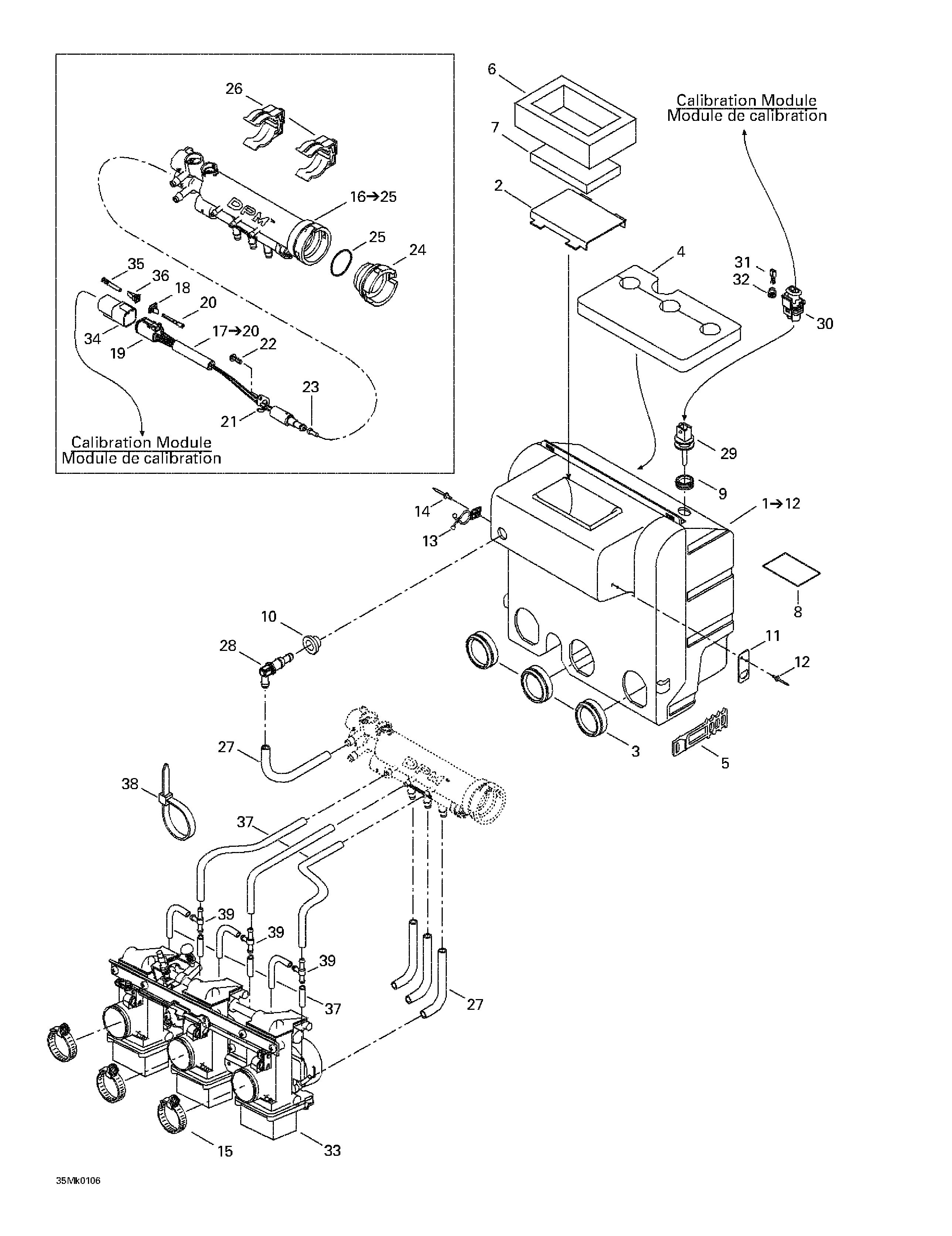

02- Air Intake System для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1508000176 Air Silencer Ass'y. Includes 1 - 12.Air Silencer Ass'y. Includes 1 - 12.
-
2517294400 Intake GrillIntake Grill
-
3570069100 Air AdaptorAir Adaptor
-
4415081200 Inner FoamInner Foam
-
5570069700 LatchLatch
-
6415081300 Lower FoamLower Foam
-
7415081400 Air FilterAir Filter
-
8516000130 Caution LabelCaution Label
-
9570065500 GrommetGrommet
-
10513032908 GrommetGrommet
-
11512059211 SupportSupport
-
12293150034 RivetRivet
-
13415115100 ClipClip
-
14293150034 Rivet 5/32Rivet 5/32
-
15420951510 ClampClamp
-
16512059323 Pressure Manifold Ass'y. Includes 16 - 25.Pressure Manifold Ass'y. Includes 16 - 25.
-
17515175271 Collector Harness. Includes 17 - 20.Collector Harness. Includes 17 - 20.
-
18409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
19409015400 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
20278000632 Female TerminalFemale Terminal
-
21415061600 Solenoid LockSolenoid Lock
-
22241140060 Screw K40 x 10Screw K40 x 10
-
23404161825 Starter JetStarter Jet
-
24512058949 CapCap
-
25512058950 O-RingO-Ring
-
26512058919 SupportSupport
-
27415080200 LineLine
-
28414580600 Elbow Male ConnectorElbow Male Connector
-
29270600000 Air Sensor (Temperature)Air Sensor (Temperature)
-
30278001005 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
31278000998 Female TerminalFemale Terminal
-
32278000999 SealSeal
-
33512059435 Carburetor Kit TM 38-321Carburetor Kit TM 38-321
-
34409015200 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
35409014800 Male TerminalMale Terminal
-
36409014600 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
37404161888 HoseHose
-
38293750002 Tie Rap 130 mmTie Rap 130 mm
-
39270500347 T'' Fitting```T'' Fitting```
