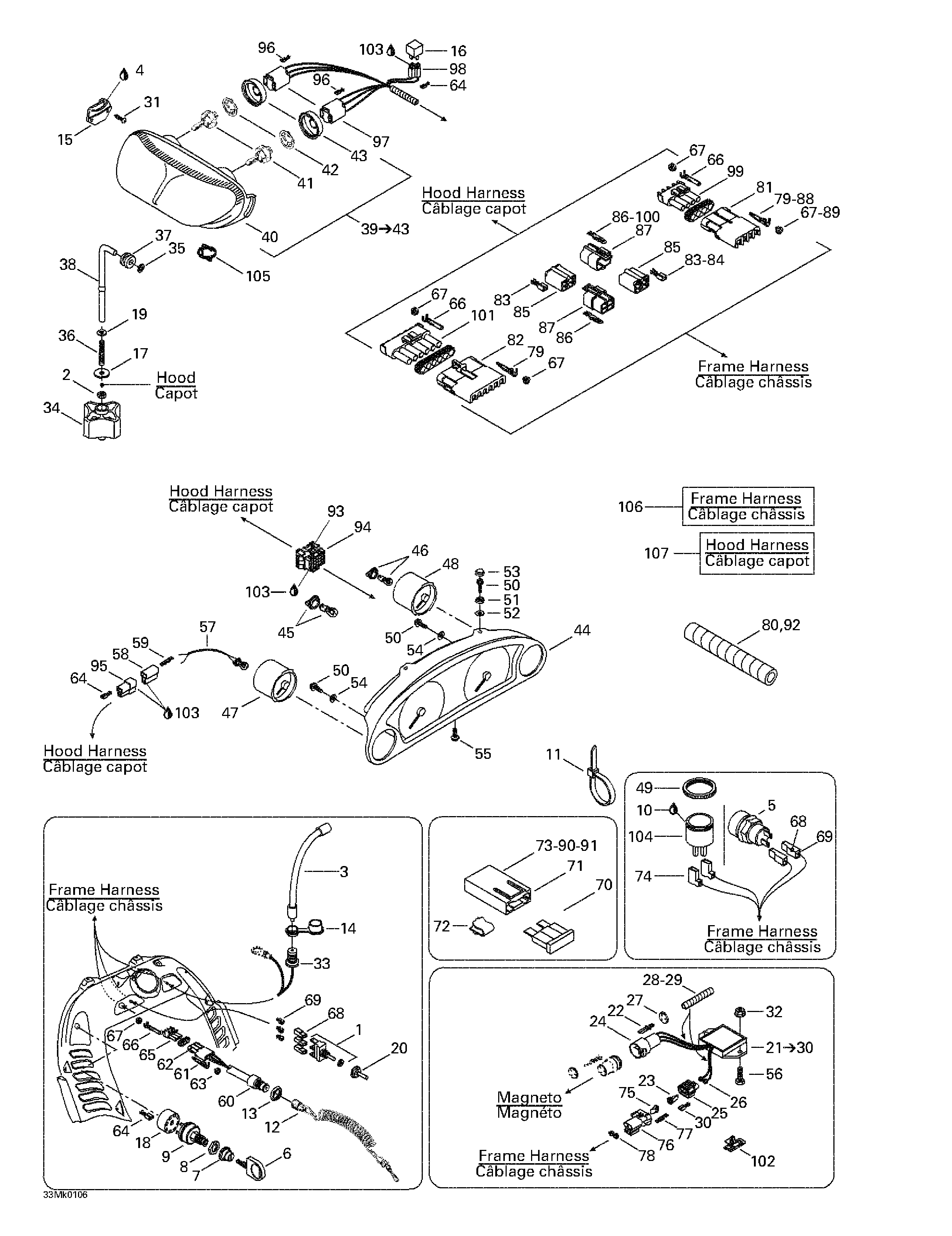

10- Electrical System для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1410111500 Switch (Compressor)Switch (Compressor)
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3515175161 Extension Plug VisorExtension Plug Visor
-
4413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
-
5415101200 Reverse KnobReverse Knob
-
6414991700 Blank Key (Plastic, PQG/5)Blank Key (Plastic, PQG/5)
-
7570013700 Switch BootSwitch Boot
-
8410112100 Face NutFace Nut
-
9410111300 Ignition SwitchIgnition Switch
-
10296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
11293750002 Tie Rap 130 mmTie Rap 130 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
12515166900 D.E.S.S. CapD.E.S.S. Cap
-
13278000508 Safety Switch NutSafety Switch Nut
-
14572103300 CapCap
-
15517289300 R.H. SupportR.H. Support
-
517289400 L.H. SupportL.H. Support
-
16410113200 RelayRelay
-
17224060251 WasherWasher
-
18572150700 Ignition Switch BlockIgnition Switch Block
-
19234061410 Flat WasherFlat Washer
-
20515175281 Switch CoverSwitch Cover
-
21515175461 Voltage Regulator. Includes 21 - 30.Voltage Regulator. Includes 21 - 30.
-
22409011100 Male TerminalMale Terminal
-
24409207900 Male Connector Housing (3 Circuits)Male Connector Housing (3 Circuits)
-
25409206500 Female Connector Housing (2 Circuits)Female Connector Housing (2 Circuits)
-
26278000996 SealSeal
-
27409208500 SealSeal
-
28515175332 TubingTubing
-
30278000994 Female TerminalFemale Terminal
-
31732601315 Headlamp ScrewHeadlamp Screw
-
32233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
34515175548 HandleHandle
-
35732610072 Push NutPush Nut
-
36415100600 SpringSpring
-
37415100800 GrommetGrommet
-
38517295800 Adjuster RodAdjuster Rod
-
39515175158 Headlamp Halogene Ass'y. Includes 39 - 43.Headlamp Halogene Ass'y. Includes 39 - 43.
-
41410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
42410608300 Bulb HolderBulb Holder
-
43410607100 CoverCover
-
44515175578 DashDash
-
45410504403 Meter BulbMeter Bulb
-
46410504402 Meter Bulb (Small)Meter Bulb (Small)
-
47515175394 Pressure GaugePressure Gauge
-
48515175396 Fuel GaugeFuel Gauge
-
49414805101 Plastic NutPlastic Nut
-
50241140060 Screw K40 x 10Screw K40 x 10
-
51414436800 Retainer CapRetainer Cap
-
52234042600 Flat Washer 4 mmFlat Washer 4 mm
-
53414436900 Snap CapSnap Cap
-
54517124300 WasherWasher
-
55732601210 Hex. Tapping ScrewHex. Tapping Screw
-
56207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
58409204500 Male HousingMale Housing
-
59409210000 Male TerminalMale Terminal
-
60515166800 Terminal Ass'y. Includes 60 - 63.Terminal Ass'y. Includes 60 - 63.
-
61278000222 Male TerminalMale Terminal
-
62278000281 Female Connector Housing (3 Circuits)Female Connector Housing (3 Circuits)
-
63278000218 SealSeal
-
64561503100 Female TerminalFemale Terminal
-
65278000273 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
66278000223 Female TerminalFemale Terminal
-
67278000218 SealSeal
-
68409010400 Female Terminal Housing (1 Circuits)Female Terminal Housing (1 Circuits)
-
69409010100 Female TerminalFemale Terminal
-
70409012800 Fuse 1 AmpFuse 1 Amp
-
278001143 Fuse 20 AmpFuse 20 Amp
-
410917200 Fuse 30 AmpFuse 30 Amp
-
71409004000 Fuse HolderFuse Holder
-
72409014200 ClipClip
-
73409011600 Female TerminalFemale Terminal
-
74409010300 Female TerminalFemale Terminal
-
75409011800 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
76409206500 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
77409010900 Male TerminalMale Terminal
-
78409208300 Wire SealWire Seal
-
79278000222 Male TerminalMale Terminal
-
80415011500 TubingTubing
-
81278000394 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
82278000156 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
83561503200 Female TerminalFemale Terminal
-
84515175313 Female TerminalFemale Terminal
-
85409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
86409206100 Male TerminalMale Terminal
-
87409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
88409004300 Male TerminalMale Terminal
-
89710000048 Wire SealWire Seal
-
90409003600 Female TerminalFemale Terminal
-
92409901800 TubingTubing
-
93409013500 Female TerminalFemale Terminal
-
94409209800 Female Terminal Housing (24 Circuits)Female Terminal Housing (24 Circuits)
-
95409204600 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
96515175320 Female TerminalFemale Terminal
-
97409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
98409209900 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
99278000395 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
100409210000 Male TerminalMale Terminal
-
101278000221 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
102515175283 Housing SupportHousing Support
-
103293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
104415060900 Horn (Reverse)Horn (Reverse)
-
105515175324 Spring (Europe)Spring (Europe)
-
106515175579 Frame Harness (Not Shown)Frame Harness (Not Shown)
-
107515175135 Hood Harness (Not Shown)Hood Harness (Not Shown)
