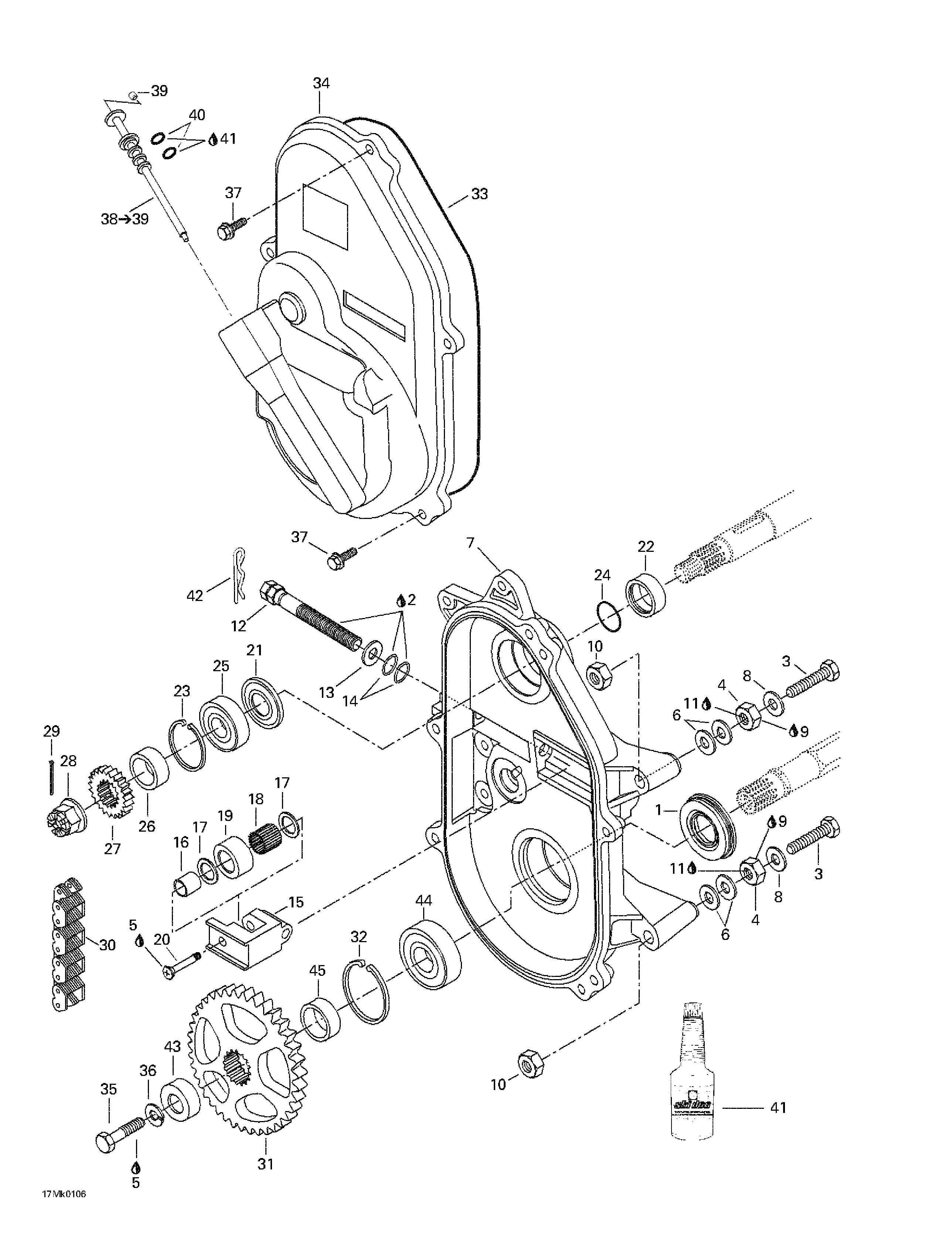

05- Chaincase для BRP Ski-Doo Grand Touring 800 SE - 2001
-
№АртикулНазвание
-
1504151925 Oil SealOil Seal
-
2219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
3207107544 Hex. Screw M10 x 75Hex. Screw M10 x 75
-
4504083800 SpacerSpacer
-
5293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
6504073700 WasherWasher
-
7504146600 ChaincaseChaincase
-
8503183800 WasherWasher
-
9293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
10233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12732601311 Adjustment ScrewAdjustment Screw
-
13234001410 Flat Washer 10 mmFlat Washer 10 mm
-
14414484400 O-RingO-Ring
-
15504081000 Chain TensionerChain Tensioner
-
16504080200 SpacerSpacer
-
17504080300 WasherWasher
-
18405403000 Needle BearingNeedle Bearing
-
19414531300 RollerRoller
-
20732601144 ScrewScrew
-
21415049300 SealSeal
-
22507031500 SpacerSpacer
-
23371901700 Circlip (Interior)Circlip (Interior)
-
24414876700 O-RingO-Ring
-
25504152006 Ball Bearing 6205Ball Bearing 6205
-
26504147200 ShimShim
-
27504139700 Sprocket (24 Tooth, Large)Sprocket (24 Tooth, Large)
-
28250000012 Hex. Castellated Nut M20Hex. Castellated Nut M20
-
29371006300 Cotter PinCotter Pin
-
30504151830 Drive Chain Large (72 Links)Drive Chain Large (72 Links)
-
31504148500 Sprocket Large (43 Tooth)Sprocket Large (43 Tooth)
-
32414784900 Circlip (Int-rior)Circlip (Int-rior)
-
33414362300 O-RingO-Ring
-
34080039500 Chaincase CoverChaincase Cover
-
35207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
36234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
37210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
38572092700 Filler Cap Ass'y. Includes 38 - 39.Filler Cap Ass'y. Includes 38 - 39.
-
39206540490 Set Socket Screw M4Set Socket Screw M4
-
40414969400 O-RingO-Ring
-
41413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
-
42414575600 Hair PinHair Pin
-
43501022400 CapCap
-
44504152010 Ball Bearing 6206Ball Bearing 6206
-
45501021800 Inner ShimInner Shim
